Гнучка рама для стандартних балок, 150 кН

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards EN 12390-5, ASTM C293, ASTM C78

Manufacturer Controls

Всі характеристики

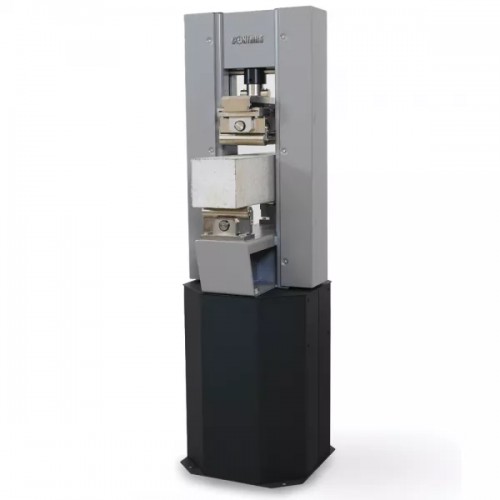

50-C0920/FR - 150 kN cap. flexure frame complete with rollers, pressure transducer and connection kit for separate control console

Дивитися повний опис

Збільшити

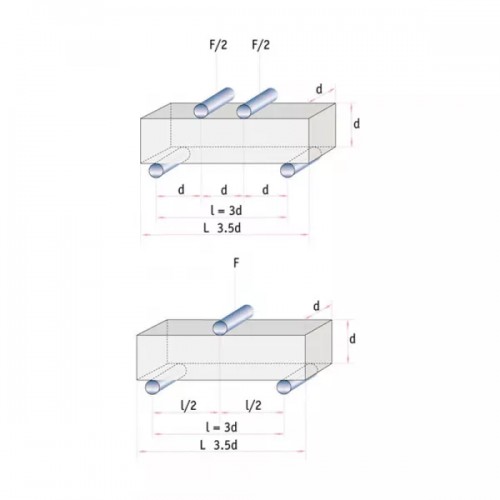

A simple and practical frame developed for testing on standard concrete beams. The distance of both pair of loading and support rollers can be easily adjusted: one of the two upper rollers can be removed and the other placed in the centre for centre point loading test.

Main features

For testing concrete beams having 100x100mm and 150x150mm square sections

Complete with bearers

For center and third point loading

Connectable to control consoles, Wizard, Automax and Pilot compression machines

Piston return by counterweights

Technical specifications
Max. load capacity kN	150 kN / 33 klbf
Load sensor	Pressure transducer
Max. vertical clearance mm	158 mm / 6.2 “
Horizontal clearance mm	185 mm / 7.3”
Roller size mm	dia. 40x160 mm / dia. 1.6x6.3"
Distance between upper rollers mm	adjustable from 100 to 200 mm or 4” to 6”
Distance between lower rollers mm	300 or 450 mm and 12” or 18”
Piston travel mm	75 mm / 3”
Overall dimensions (lxwxh) mm, frame only	455 x 560 x 960 mm / 18 x 22 x 38 “
Overall dimensions (lxwxl) mm, including pedestal	455 x 560x 1575
Weight approx. kg, frame only	170 kg / 374 lb
