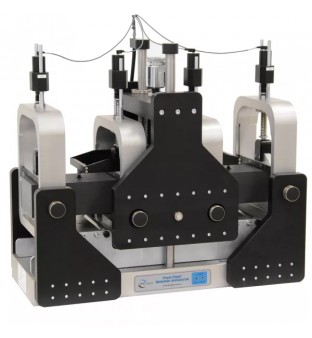

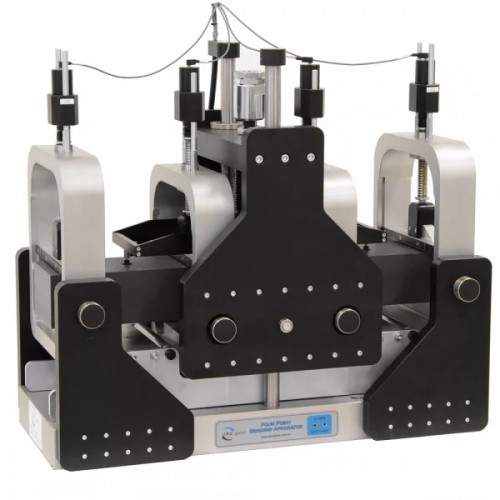

Four Point Bend Test for UTM and AsphaltQube

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards AASHTO T321, EN 12697-26 Annex B, EN 12697-24 Annex D

ASTM D7460, ASTM D8237, AG:PT/T233, AG:PT/T274

AS 03:2000

Manufacturer Controls

Всі характеристики

79-PV70410 - Four Point Bend Jig for UTM-30 and UTM-130 for 355.5mm and 420mm (outer span centres) specimens. including Load Cell (+/-15kN w/ (ILC), Yoke Alignment Tool for 355.5 mm (outer span centres) x 50mm x 50mm specimens

79-PV70412 - Four Point Bend Jig for UTM-16P for 355.5mm and 420mm (outer span centres) specimens. Including Yoke Alignment Tool for 355.5 mm (outer span centres) x 50mm x 50mm specimens

79-PV70440 - XL Four Point Bend Jig for 740 mm (outer span ntres), 247 mm (inner span centres), suitable for M-130XL. includes: -1x XLFour Point Bend Jig (for UTM systems) -1x LVDT (+/-1mm) w/ In-Line Conditioner (ILC) -1x Yoke Alignment Tool

79-PV72111 - AsphaltQube/AsphaltQube Pro Four Point Bending Jig for 355.5mm and 420mm (outer span centres) specimens, including Yoke Alignment Tool 355.5 mm (outer span centres) x 50mm x 50mm specimens

Дивитися повний опис

Збільшити

To perform Four Point Bend test

Main features

Innovative “floating straight-edge” on specimen transducer displacement measurement eliminates errors

Optional fixed point strain measurement referring from outer pivots

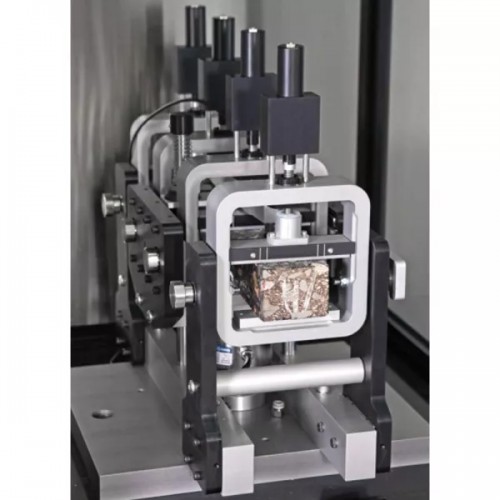

Designed to subject an asphalt specimen to four point bending with backlash free rotation and horizontal translation of all load and reaction points

Sinusoidal or haversine controlled strain or controlled stress loading

Controlled force, motorized specimen clamping

Loading frequency up to 60 Hz

Non-linear regression data fitting ensures reliable determination of phase and modulus

Can be used with existing UTM systems

Cost effective solution for high volume testing

Specimen laterally positioned by hand using etched lines as visual guide for two specimen sizes, nominally 50 and 63.5 mm in width

Vertical clamping of the specimen is achieved by servo-motor driven ball screws, which are operated continuously during the test to take up the compliance of the specimen at the clamping surfaces

Extra Large Four Point Bend Jig

Innovative floating on-specimen transducer eliminates errors caused by frame compliance

Backlash free rotation and translation on all load and reaction points

Controlled force and motorized specimen clamping

Specimen rollers with pneumatic lift and lowering for easy loading of specimen

Automated self-aligning specimen yokes for easy specimen insertion

Specimen roller with pneumatic lift and lowering provide the user with easy test set-up across a range of extra-large specimen sizes

Vertical clamping of the specimen is achieved by servo-motor driven ball screws, which are operated continuously during the test to take up the compliance of the specimen at the clamping surfaces

Technical Specifications

Loading frequency: up to 60 Hz (load limitations apply at higher frequencies)

Load capacity: up to 10 kN dynamic

Specimen size (h x w x l): 70 (max) x 80 (max) x 380 mm

Yoke alignment tool for specimen: 50 x 50 x 355.5 mm (h x w x outer span centers), 70 x 70 x 420 mm (h x w x outer span centers)

Dimensions (h x w x d): 455 x 460 x 230 mm

Weight: 35 kg

Extra Large Four Point Bend Jig

Dimensions (h x d x w): 790 x 435 x 890 mm

Weight: 210 kg

Load capacity: up to 25 kN dynamic

Specimen size (l x h x w): 790 (min) x 100-160 x up to 200 mm

Yoke alignment tool for specimens: 740 mm (outer span centers), 247 mm (inner span centers)

Air supply: clean, dry air at 700 kPa (specimen loading only)
