Flexural Frame C Type

Обрати іншу модель Копіювати посилання

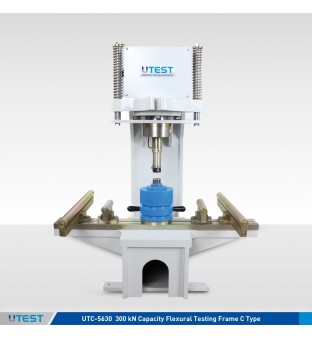

Flexural Frame C Type
Flexural Frame C Type Увеличить
Характеристики
Standards EN 1338, 1339, 1340, 1341
1343, 12390-5, 12390-6; BS 1881;
ASTM C78, C293, C496
Dimensions 1100x900x1250 mm
Weight (approx.) 555 kg

Manufacturer UTEST
Всі характеристики
UTC-5630 - 300 kN Capacity Flexural Testing Frame C Type

Дивитися повний опис

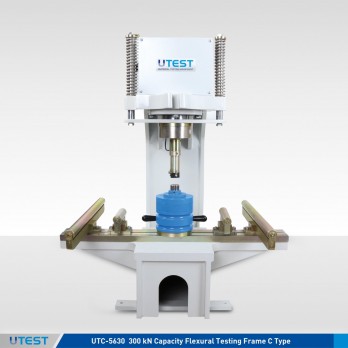

Flexural Frame C Type Збільшити

C type Flexural Testing Frame is designed for minimum deflection at maximum load resulting in very high accuracy. The load frame provides the stability needed for accurate and repeatable test re­sults over the years of operation.The frame has a single acting down stroking ram.The return of the ram is done by spring to get maximum accuracy on the load measurement. A load cell is used for load measurements on all frames.

UTC-5630 is designed to accept all accessories required for flexural, transverse or compression tests.

The frame can be connected to any UTEST compression machine as a second frame or can be used with any UTEST power pack as an independent Flexural Machine.

The main characteristics is:
  • High stability welded assembly
  • Can be used for flextural strength tests of concrete paving flag and natural stone slabs, concrete or natural stone kerbs and tensile splitting test of concrete paving blocks
  • Safety limit switch for 100 mm piston stroke
  • High accuracy load measurement with strain gauge load cells
  • Can accept wide range of accessories for mentioned standards
  • Can be connected to any UTEST compression machine or UTEST power pack

    • Test assemblies such as;
  • Flextural strengt test of concrete beam (UTC-5501), concrete kerb (UTC-5502) and flagstone (UTC-5504), Indirect tensile strengt test of paving block (UTC-0355 and UTC-5510), Splitting tensile strengt test of concrete cubes (UTC-0360) and cylinders (UTC-0350)
  • Compression strengt test of any construction material (UTM-8516) and distance pieces UTC-4630, UTC-4631, UTC-4633 and UTC-4634 should be ordered separately.

    • Product Code UTC-5630
    Capacity 300 kN
    Ram Travel 100 mm
    Max. Clerance Between Lower Rollers 900 mm
    The Distance Between The Center of The Piston to The Side of The Frame 320 mm
    Ram return by Spring
    Overall Dimensions 1100x900x1250 mm
    Weight (approx.) 555 kg
    Max. Vertical Clearance with UTC-5501┃with UTC-5502┃with UTC-5504 165 mm ┃233 mm┃140 mm
    Виробник
    Виробник Utest
    Технічні характеристики
    Максимальний вертикальний просвіт 165 мм (модель UTC-5501), 233 мм (модель UTC-5502), 140 мм (модель UTC-5504)
    Ємність 300 кН
    Відстань між центром поршня та боковою рамою 320 мм
    Макс. Зазор між нижніми роликами 900 мм
    Габаритні розміри 1100x900x1250 мм
    Вага нетто 555 кг
