Standards BS 1377:5; ASTM D2435, D3877, D4546;

AASHTO T216; CEN ISO/TS 17892-5

Manufacturer UTEST

Всі характеристики

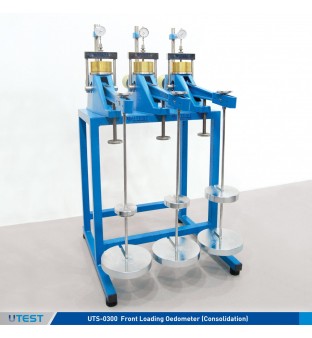

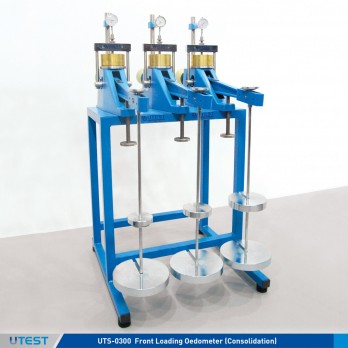

UTS-0300 - Front Loading Oedometer (Consolidation)

Дивитися повний опис

Збільшити

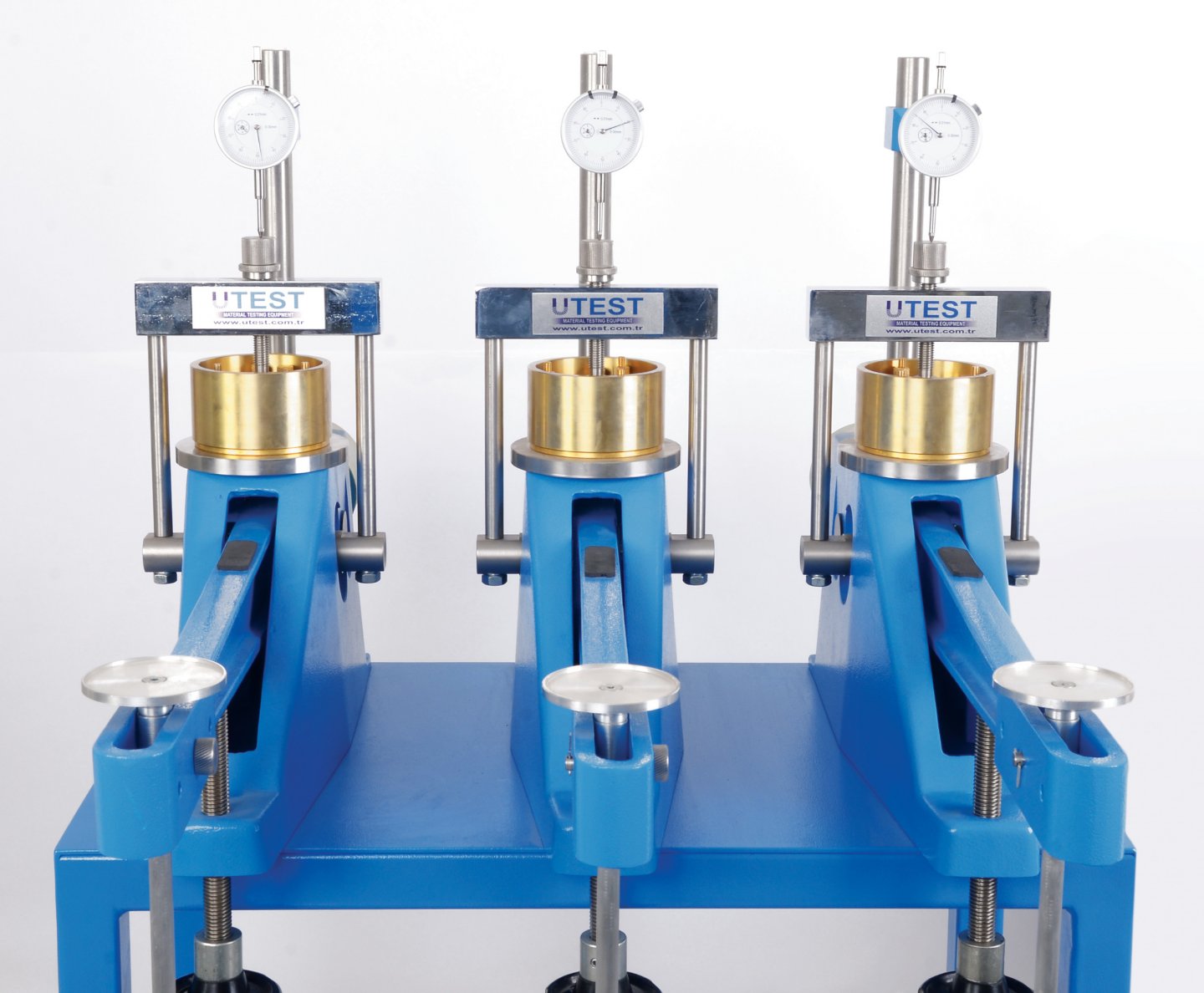

The UTS-0300 Front Loading Oedometer is rigidly constructed to ensure minimum frame distortion. The frame is designed to load the specimen through a lever arm assembly and one of three alternative beam ratios as 9:1, 10:1 and 11:1. The beam is fitted with a counter balance weight and beam support jack. The cell platform will accept the complete range UTEST consolidation cells and is fitted with a central spigot to ensure accurate centering of the cell under the loading..

The UTEST fixed ring consolidation cells are manufactured from corrosion-resistant materials and conform to the requirements of the relevant standards. An integral water reservoir is incorporated in the cell which allows the specimen to be inundated when required. All cells are supplied complete with upper and lower porous disc, pressure pad and cutting (specimen) ring. .

The One-dimensional consolidation test is used to determine the consolidation characteristics of soils of low permeability..

Tests are carried out on specimens prepared from undisturbed samples. Data obtained from these tests together with classification data and a knowledge of the soils loading history, enables estimates to be made of the behavior of foundations under load. Consolidation cell, dial gauge or displacement transducer and data logger, bench, weights, apparatuses for prepare consolidation samples and calibration disc should be ordered separately.

Data Acquisition & PC Software

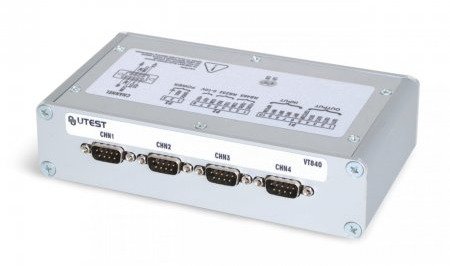

4 or 8 channel interface units for data acquistion (UTCU-0320 or UTCU-0325) are used for recording displacement data over time.

High resolution : 260.000 points.

Serial port for PC and printer connection.

CPU card by microprocessor 32 bit ARM risk architecture.

4 or 8 analogical channels for displacement transducers.

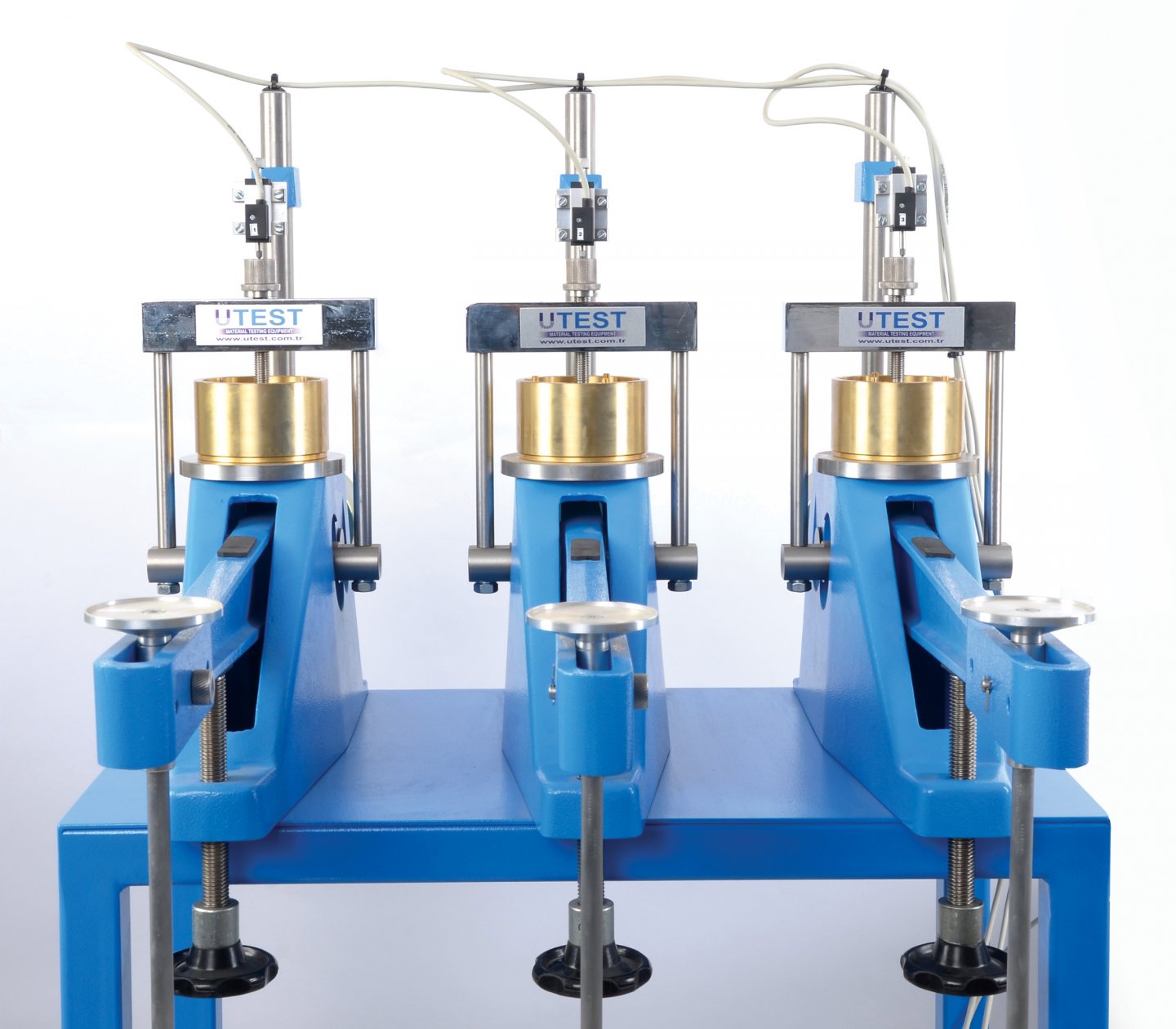

Utest Consolidation Software (USOFT-0300) is developed according to ASTM D2435, D3877, D4546, BS 1377:5 and AASHTO T216 standards to be used with UTCU-0320 and UTCU-0325. Displacement transducers are connected to interface unit and interface unit is connected to PC by RS232 serial output. The software is capable monitoring the change of displacement data over time.

User can initiate and end data recording process by using the software. The user can determine and assign different time intervals (or select fixed time intervals) and stresses for the calculation of the consolidation test data.

The consolidation software has different data recording columns each assigned to the consolidation cells and they can be set to different normal load (stress) values. The user can also manually enter the vertical displacement data to these columns for correction. The graphs of time-displacement pairs are drawn in both square-root time and logarithmic time scales. In addition to these visualizations, the software can calculate required parameters such as √t90, √t50, √t100, mv, Cv , etc. according to the related standards indicated above. Recorded data, graphs, calculations and all other generic data can be exported to Microsoft Excel for further evaluation.

Customizable User Interface

Graphical outputs and reports can be saved as MS Excel worksheet

Flexibility in edit report and graph templates

Dimensions	Weight (approx.)
750x850x1400 mm (3 pcs UTS-0300 + UTS-0302 + UTS-0376 + Accessories))	180 kg (3 pcs UTS-0300 + UTS-0302 + UTS-0376 + Accessories)

P. Name	UTS-0307 (Ø50 mm)	UTS-0309 Ø63,5 mm (2,5")	UTS-0313 (Ø75 mm)	UTS-0315 Ø101,6 mm (4")	UTS-0320 Ø112,8 mm
Spare Cutting Ring	UTS-0308	UTS-0312	UTS-0314	UTS-0318	UTS-0322
Upper and Lower Porous Disc	UTS-0330	UTS-0331	UTS-0333	UTS-0335	UTS-0338
Calibration Disc, stainless steel	UTS-0339	UTS-0341	UTS-0343	UTS-0345	UTS-0347
Apparatus for Prepare Consolidation Sample	UTS-0358	UTS-0359	UTS-0360	UTS-0362	UTS-0364

P. Code	Sets of Weight for Consolidation
UTS-0368	16 kgf Set	(2) 5 kg, (1) 2 kg, (2) 1 kg, (3) 0,5 kg, (2) 0,25 kg
UTS-0370	32 kgf Set	(1) 10 kg, (3) 5 kg, (2) 2 kg, (1) 1 kg, (3) 0,5 kg, (2) 0,25 kg
UTS-0372	50 kgf Set	(3) 10 kg, (2) 5 kg, (3) 2 kg, (2) 1 kg, (3) 0,5 kg, (2) 0,25 kg
UTS-0374	64 kgf Set	(4) 10 kg, (3) 5 kg, (2) 2 kg, (3) 1 kg, (3) 0,5 kg, (2) 0,25 kg
UTS-0376	80 kgf Set	(6) 10 kg, (2) 5 kg, (3) 2 kg, (2) 1 kg, (3) 0,5 kg, (2) 0,25 kg

P. Code	Slotted Weight	UTS-0348
UTS-0380	125 g
UTS-0382	250 g
UTS-0384	500 g
UTS-0386	1 kg
UTS-0388	2 kg
UTS-0390	5 kg
UTS-0392	10 kg
UTS-0394	4 kg
UTS-0396	8 kg
