Ultra low temperature freezer 700 l series UF V

Choose another model Copy link
Ultra low temperature freezer 700 l series UF V
Specifications
Interior volume: 700 l
Power rating: 1.6 kW
Temperature range: -90…-40 °C
Inner dimensions: 890 x 605 x 1300 mm
Housing dimensions: 1110 х 938 х 1966 mm
Net weight: 289 kg

Manufacturer: Binder

The BINDER ultra low temperature freezer ensures the safe storage of samples at -90 °C. It combines outstanding environmental friendliness with low energy consumption, convenient operation and an individual safety concept.

View full description

The BINDER ultra low temperature freezer ensures the safe storage of samples at -90 °C. It combines outstanding environmental friendliness with low energy consumption, convenient operation and an individual safety concept.

Benefits
  • Lowest energy consumption in its class
  • Environmentally friendly refrigerant
  • Multi-level safety concept
  • 5-year warranty

Important characteristics
  • Range of temperature controller: -90 °C to -40 °C
  • Lowest energy consumption in its class
  • Powerful cascade compressor cooling unit
  • Environmentally friendly refrigerants R-290 and R-170
  • Efficient thermal insulation with vacuum insulation panels
  • Innovative door gasket concept reduces buildup of ice
  • Ergonomic door handle
  • Rust-proof interior made completely of stainless steel
  • Detachable inner doors made of stainless steel
  • 3 stainless-steel shelves providing flexible placement
  • Water cooling (depending on version)
  • Zero-voltage alarm contact for in-house alarm system
  • Internal data logger, measured values can be read out in open format via USB
  • Ethernet interface
  • Operating hours counter
  • 2 access ports, Ø 28 mm, rear
Manufacturer
Manufacturer Binder
Technical characteristics
Temperature range -90…-40 °C

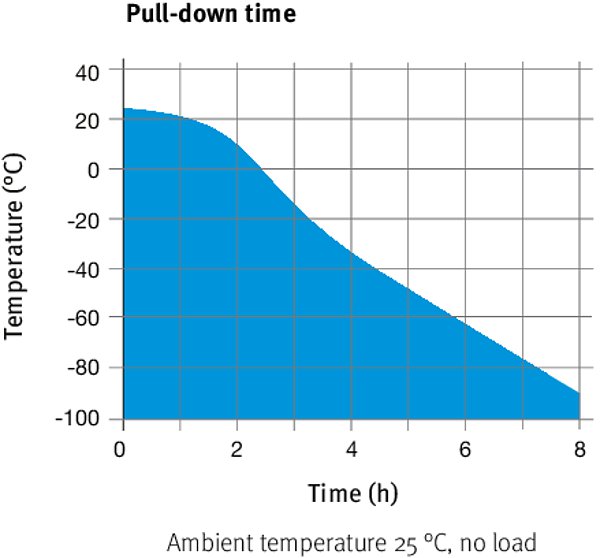

Cooling down time from 22 °C to -80 °C 450 min
Wall clearance sidewise 250 mm
Wall clearance back 100 mm
Permitted load 200 kg
Permitted load of individual compartment 50 kg
Sound-pressure level 47 dB(A)
Number of shelves (std./max.) 3/13
Energy consumption at set-point -80 °C and ambient temp. = 21 °C 8.1 kWh/d
Power rating 1.6 kW
Power parameters 220V, 50 Hz, 1p
Housing dimensions 1110 х 938 х 1966 mm
Inner dimensions 890 x 605 x 1300 mm
Interior volume 700 l
Net weight 289 kg
