Dynamic climate chamber for rapid temperature changes with humidity control 115 l series MKF

A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.

• Homogeneous climate conditions thanks to APT.line™ technology
• Automatic water and wastewater management
• Pressure humidification with fast response times
• Comprehensive programming and data acquisition
• Large heated viewing window

• Temperature range: -40 °C to 180 °C

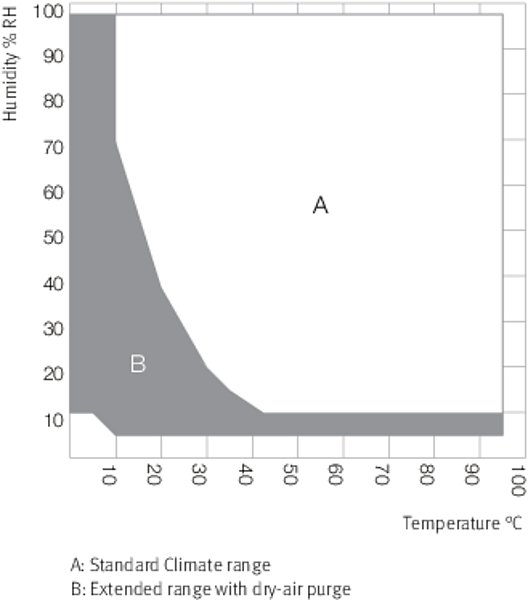

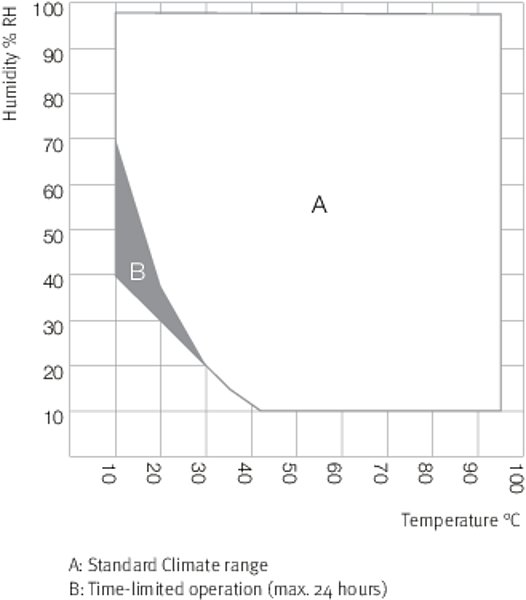

• Humidity range: 10 % to 98 % RH
• 4 zero-voltage relay contacts that can be activated via MCS controller
• APT.line™ preheating chamber technology
• Programmable condensation protection for test material
• Heated viewing window with LED interior lighting
• Humidity regulation with capacitative humidity sensor and vapor humidification
• BINDER Multi Management Software APT-COM™ Basic Edition
• Troubleshooting system with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger, measured values can be read out in open format via USB
• Unit self-test for comprehensive status analysis
• Access port with silicone plug: 50 mm, left
• 4 castors, two with brakes
• Computer interface: Ethernet
• Adjustable ramp function
• Integrated chart recorder
• Real-time clock
• Door heating
• 1 stainless steel rack
• Complete safety connection kit for water supply and drainage, up to 1 m height
• BINDER test confirmation
• Inner chamber made of stainless steel
• Pt 100 temperature sensor
• Thermal insulation using PUR foam
• CFC-free refrigerant R-452A
• Cooling with compressor cooling unit
• Fin evaporator
