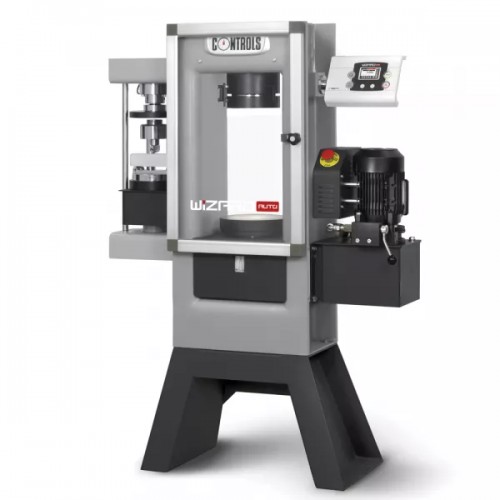

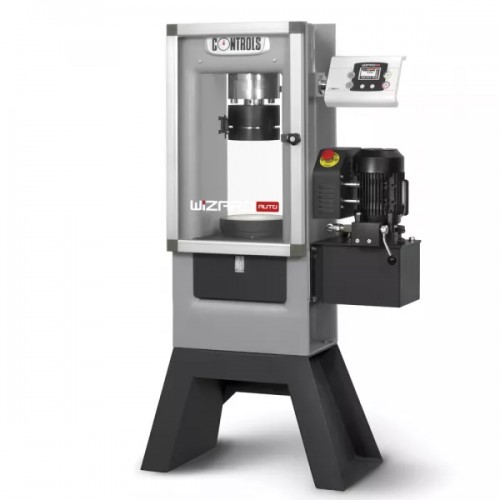

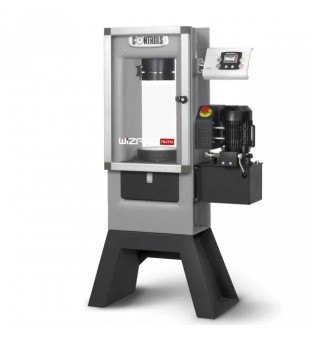

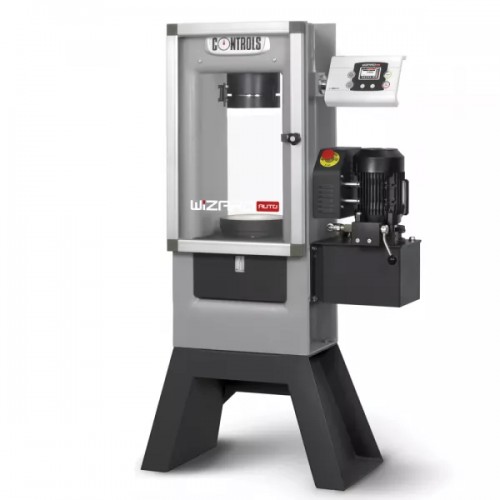

WIZARD AUTO MULTIPURPOSE Compression & Flexural Testing Machines

These Multipurpose compression / flexure testers have been designed for various applications in which a limited maximum load is requested, together with a large testing space. They are suitable to determinate compressive strength on lightweight concrete, soil-cement specimen, high strength cement and refractory.

The large testing space is ideal for performing, with the suitable accessory, splitting tests and flexural tests on concrete specimens. The pedestal is not included and has to be ordered separately. See accessories.

They are available in the two different versions:

for compression tests on low strength specimens. The Class 1 accuracy can be extended from 1% of testing machine full scale with special calibration procedures (see Technical Specifications).

extends the possible applications to flexural tests on cement and com­pression tests on low strength specimens. The Class 1 accuracy can be extendedwith special calibration procedures (see Technical Specifications).

High rigidity solid one piece steel frame. Spherical seat allows free alignment at the initial contact with the specimen. For compression platens see Technical Specifications. Pedestal not included. See accessories.

The WIZARD AUTO can be factory fitted with a internal serial printer. See accessories.

Includes: pressure valve to avoid machine overloading; piston trav­el limit switch; emergency stop button; front door and rear transparent guard.

Caracterìsticas Principales

QC testing performance has just taken a step change improvement with CONTROLS abandoning manual test control and now features automatic closed-loop PID control of loading-rate using VFD inverter-technology control of the high specification AC motor.

Wizard Auto automatically and accurately performs tests at the correct test speed, ensuring compliance to Standards and with no effect due to operator variables.

Multipurpose machine ideal for Central laboratories, for testing Cement, Mortars, Resins, Refractory, Lightweight concrete, Soil-cement specimens etc;

WIZARD AUTO is the perfect solution to ensure total certainty of testing accuracy and strict conformity to international Standards.In fact being an automatic system it allows:

Especificaciones Tecnicas

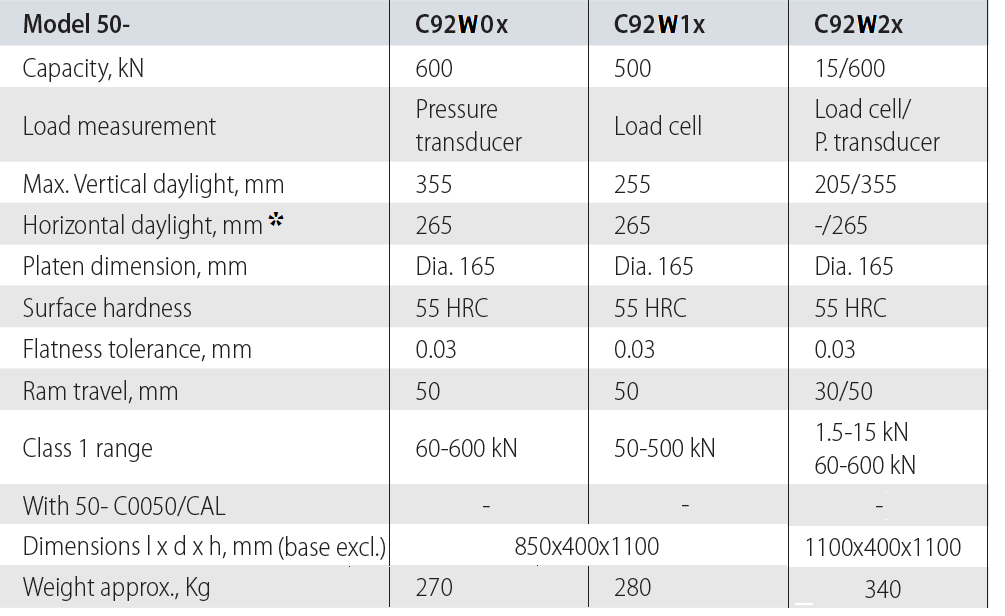

PHYSICAL SPECIFICATION TABLE

*To be adjusted using the suitable distance pieces.
