Uniaxial Fatigue (S-VECD) Test for UTM, AsphaltQube, AMPT Pro and AMPTQube

Характеристики

Standards EN 12697-26 Annex D, EN 12697-26 Annex E, AASHTO TP107

Specimen size 100 x 150 mm

Small diameter kit available for specimens with dia. 75 and 50 mm

Specimen plate 4.5 kg

Minimum required platens 2

Manufacturer Conrtols

Всі характеристики

79-PV70600 - UTM Tension Kit.

79-PV70610 - Uniaxial Fatigue Tension platen (one piece) for 100mm diameter specimens.

79-PV70611 - Tension Platen Gluing Jig Single Specimen.

79-PV70619 - AMPT SVECD - Set of two spacers (Top & Bottom) fortesting 38, 50, 75mm diameter x 110mm specimens.

Дивитися повний опис

To perform Uniaxial Fatigue test.

Main Features

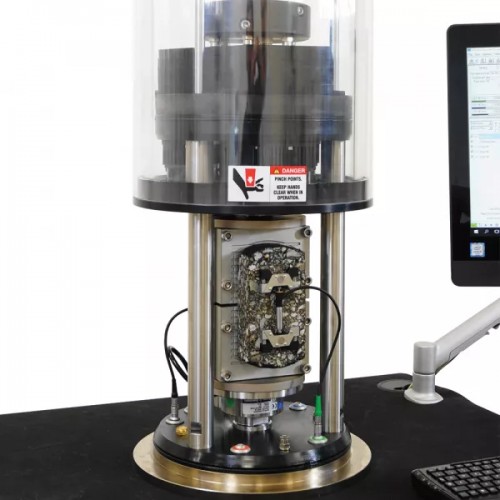

Increases the functionality of UTM Systems, AMPT Pro, AMPTQube and AsphaltQube

Easy to implement on existing equipment

Provided with specialized UTS tension test software

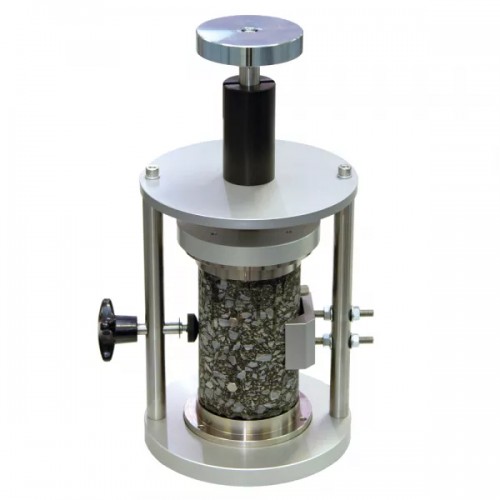

Optional glue jig assured accurate alignment of top and bottom platens

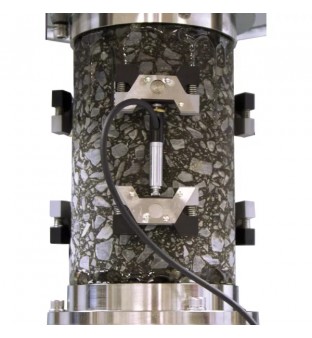

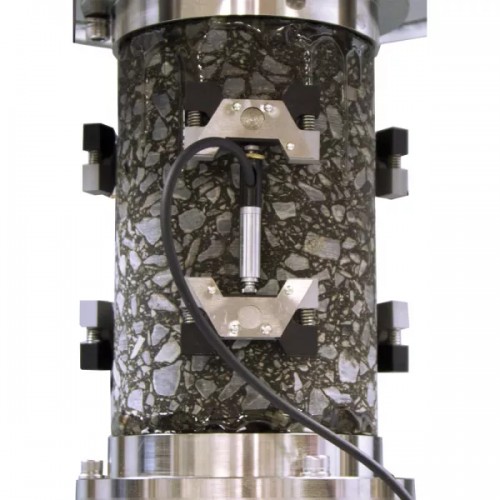

Undexial fatigue tests on asphalt cylinders

Test and Dr. Richard Kim's Simplified Viscoelastic Continuum Damage (S-VECD) test

Small Diameter kit also available, allows researchers to perform S-VECD tests on 75 & 50 mm diameter

Temsion Platen fixing jig assured accurate perpendicularity of specimens and parallel placement of platens (only for AMPT Pro and AMPTQube)
