Токарний верстат для обробки ґрунту, тример, екструдер

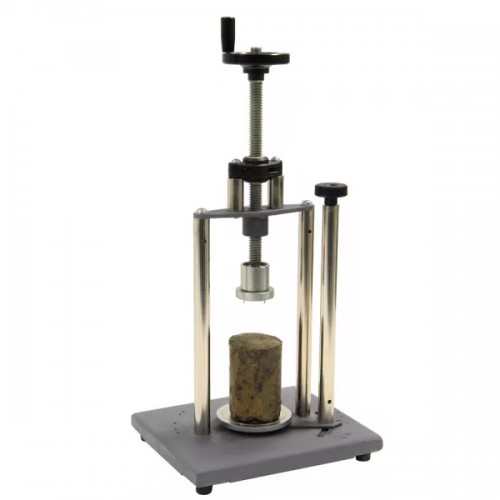

This apparatus is used to prepare any size of cylindrical soil sample:

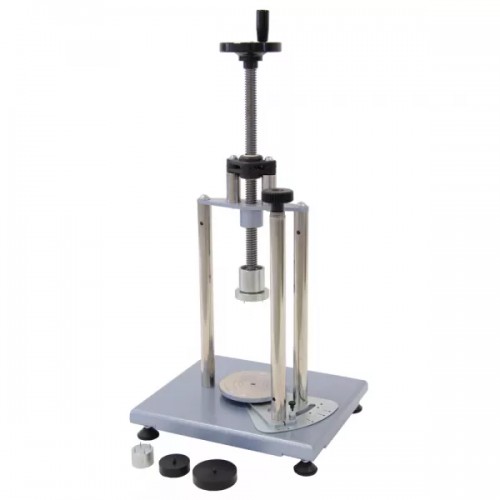

The apparatus which can be used either as a trimmer or as a sampler consists of:

1. A rotating round base with reference guide where the specimen is placed
2. A vertical threaded rod actuated by a wheel knob, whose purpose is to regulate the vertical height of the specimen and to maintain it in position during trimming operations
3. Two vertical lateral rod which are used as reference guides far the trimming saw

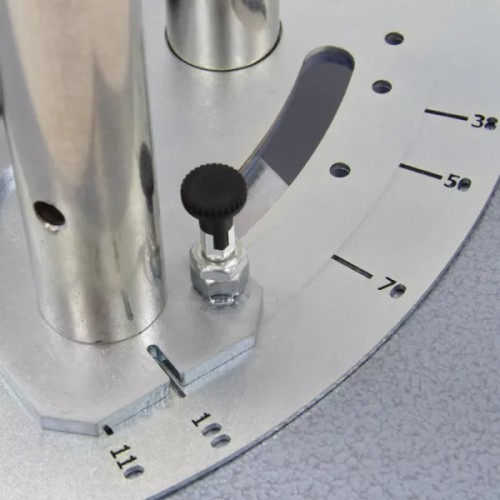

4. An adjustable rod fitted to graduate slide which is used to check and set the diameter of soil sample
5. Adapter for grubbing the sample (100, 70mm) during lathing
6. Adapter for grubbing the sample (50, 38, 35mm) during lathing
7. Adapter for trimming (35-38 mm) and extruding (50mm) the sample
8. Adapter for trimming (50 mm)

To reduce samples an open wire saw is required. See accessories, model 16-D1689.
