Тестер міцності на розрив

Характеристики

Standarts EN 1015-12, EN 1348, EN 1542, EN 13963, EN 14496, EN 12004-2, ISO 13007-2, ISO 4624, ASTM D4541, ASTM C1583, ASTM D7234, EN 14891

Manufacturer Conrtols

Всі характеристики

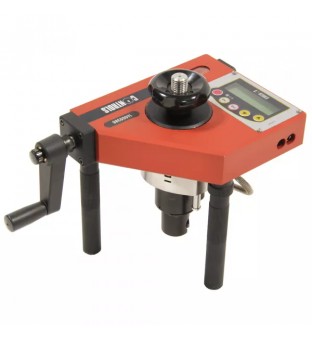

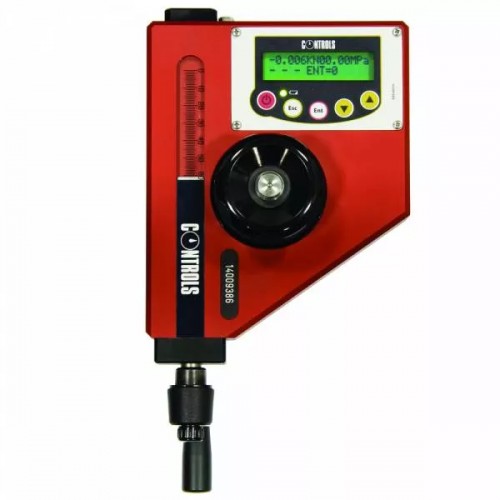

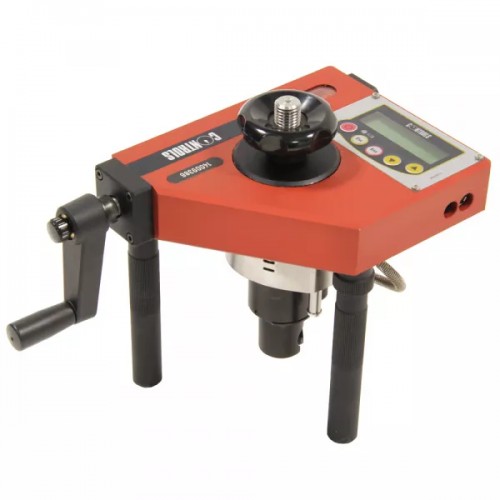

58-C0215 - Bond strength/pull-off digital tester fitted with high accuracy load cell. Load capacity 16kN x 1 N resolution. Battery operated (internal)

Дивитися повний опис

Збільшити

The apparatus is mainly used to evaluate the bond strength of two layers of concrete or the adhesive strength of surface coatings (e.g. cement plaster, lime, wall plaster etc.) on its support.

The apparatus is basically a dynamometer fitted with a load cell and high resolution digital display unit. The direct tensile force ia applied by rotating the hand wheel. The 16 kN capacity and the high resolution assure a wide working range ideal for a vast number of materials and applications.

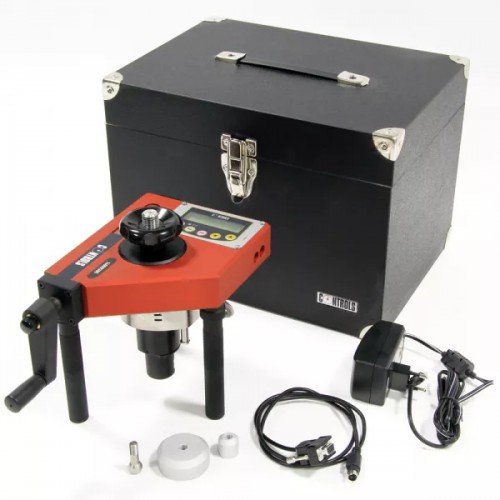

It is supplied complete with: aluminium test discs 20 and 50 mm dia., screw bolt, traceable calibration certificate and carrying case.

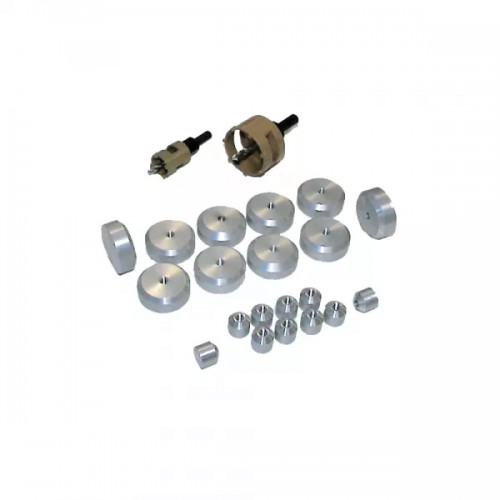

A wide range of accessories, such as adhesive compound, disks with various shape and dimensions, drill bits are also available.

Main features

Portable equipment for use in any location
High resolution digital display unit
Graphic indication of applied load rate
Serial port for PC connection
Battery operated, complete with AC adapter
Indicator of ram position allowing an estimation of the brittle properties of the test sample
Supplied complete with traceable calibration certificate

Виробник
Виробник	Controls

Технічні характеристики
Блок зчитування:	Датчик навантаження
Максимальне навантаження	16 кН
Робочий діапазон	від 0,25 до 16 кН
Роздільна здатність	1 N
Точність	краще, ніж 1%
Електроживлення	Акумулятор - 9 В
Габаритні розміри	340x240x250 мм
Вага близько	5,0 кг
