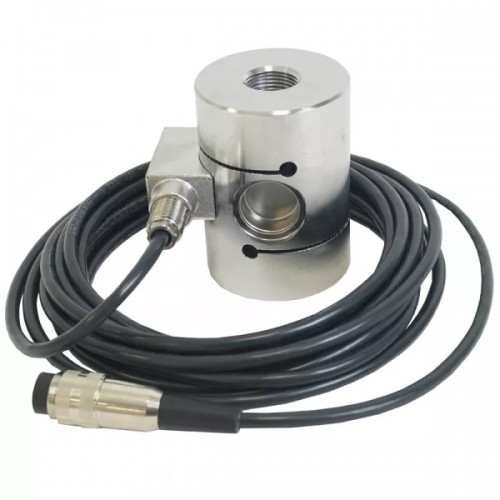

Тензометричні тензодатчики, від 3,5 до 50 кН

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Manufacturer Conrtols

Всі характеристики

82-P0370/C - 3.5 kN capacity strain gauge load cell complete with calibration traceable certificate

82-P0373/C - 10 kN capacity strain gauge load cell complete with calibration traceable certificate

82-P0370 - 3.5 kN capacity strain gauge load cell

82-P0373 - 10 kN capacity strain gauge load cell

82-P0375 - 50 kN capacity strain gauge load cell

82-P0375/C - Connecting adapter load cell/cross head

82-P0376/E - 100 kN capacity load cell with adapters for 70-T1192 UNIFRAME tester

Дивитися повний опис

Збільшити

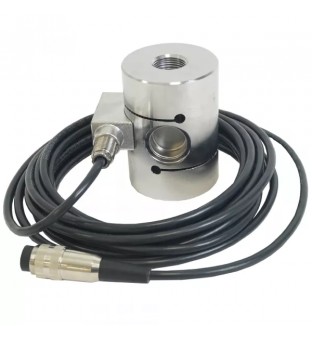

The strain gauge load cells are used to measure the force applied. They provide a very accurate electrical signal strictly proportional to the applied load.

This kind of gauges are used in various test applications with low capacity universal testers.

High capacity load cells, normally used for calibration of compression machines, ranging from 300 to 5000 kN also available. See related products.

Two versions available: Standard and complete with traceable certificate of calibration (suffix /C)

Technical specification

Model	Capacity	Top and lower connection thread	Dimensions dia.x height	Weight approx.
82-P0370, 82-P0370/C	3.5 kN	M20x1.5	57x80 mm	1.5 kg
82-P0373, 82-P0373/C	10 kN	M20x1.5	57x80 mm	1.5 kg
82-P0375, 82-P0375/C	50 kN	M30x2	82x110 mm	4.45 kg
82-P0376/E	100 kN	M30x2	82x110 mm	4.45 kg

Виробник
Виробник	Controls

82-P0370/C, 82-P0373/C, 82-P0370, 82-P0373, 82-P0375, 82-P0375/C, 82-P0376/E
