Splitting Tensile Test Devices

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards EN 12390-6, EN 1338, ASTM C496

Manufacturer Conrtols

Всі характеристики

50-C9000/A - Splitting test device for cylindrical specimens 250x500 mm (dia. x h) to EN 12390-6. Cross section dimension 350x435 height, 65 Kg weight

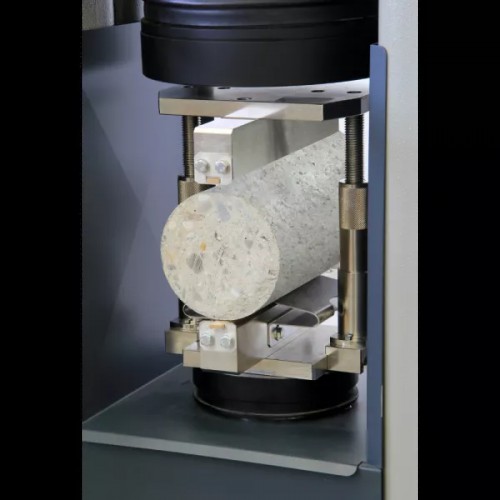

50-C9000/C - Splitting tensile test device to En 12390-6 and ASTM C496 for Cylindrical specimens 100x200 mm (4" x 8"), 150x300 mm (6" x 12") and 160x320 mm (dia. x h).

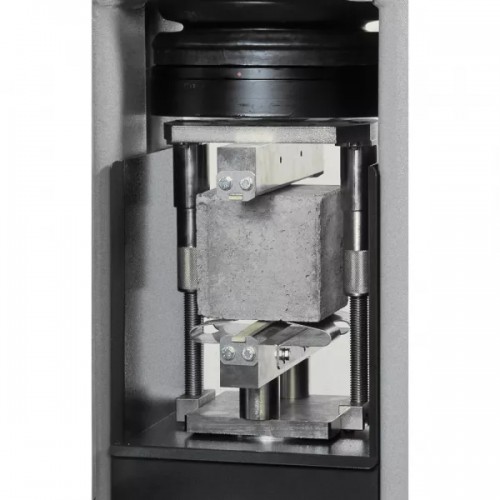

50-C9070/C - Splitting tensile test device for concrete block pavers to EN 1338 and concrete cubes to EN 12390-6 . Vertical clearance: from 65 mm to 225 mm. Horizontal clearance: 170 mm. Dimensions: max height 370 mm, width 250 mm, depth335 mm Weight...

50-C9070/A - EN 1338 splitting tensile test device for concrete block pavers with maximum dimensions 320x320x150mm (height). Дивитися повний опис

Збільшити

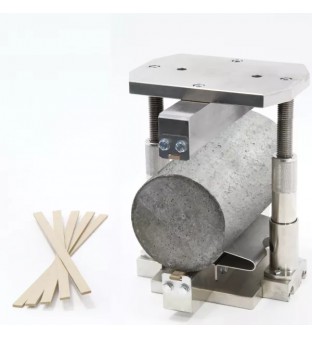

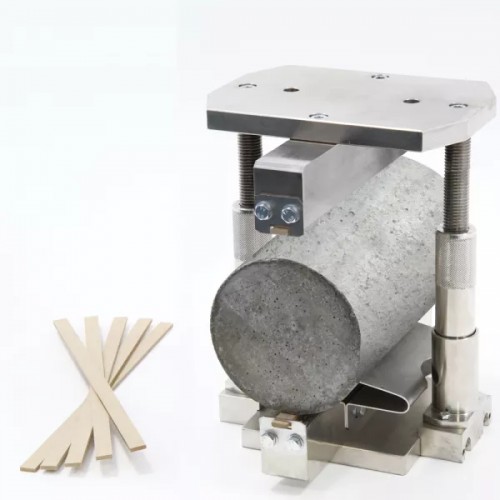

Two column steel frame with self-centering base specimen holder and upper load beam suspended with springs for easy adjustment of the specimen. The devices can be easily placed on lower platen of the compression tester using suitable distance pieces to adjust the vertical daylight. The device have to be completed with the packing strips to be inserted between the specimen and the load beams.

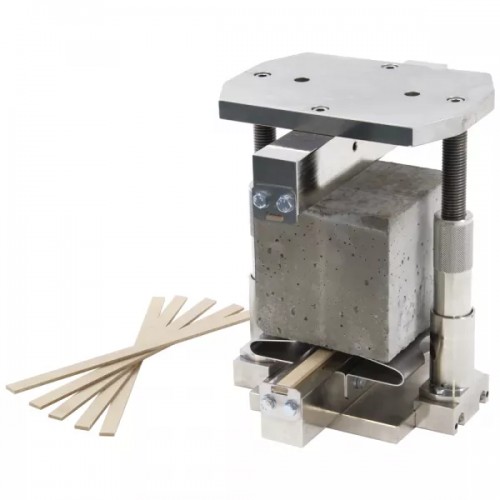

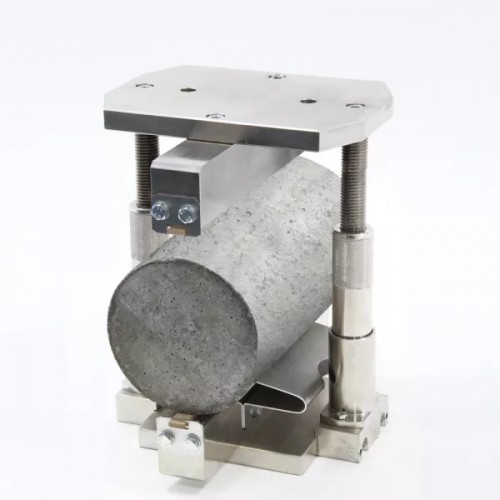

Model 50-C9000/C is used for splitting tensile tests on cylindrical specimens. Model 50-C9070/C is used for splitting tensile tests on concrete block pavers and concrete cubes.

For both models max total height is 370 mm (14.6"). The 370 mm (14.6") vertical daylight can easily obtained removing the lower platen of the compression tester.

Max vertical daylight: 225 mm (8.8"). Total height: 370 mm (14.6")

Min vertical daylight: 90 mm (3.5"). Total height: 250 mm (9.8")

Max horizontal daylight: 160 mm (6.3)

Total width: 250 mm (9.8")

Max travel: 45 mm (1.8")

Bearers length: 350 mm (13.8")

Виробник
Виробник	Controls

Технічні характеристики
Максимальний хід	45 мм
Довжина опори	350 мм
Загальна ширина	250 мм
