Sieve Shaker with Frequency and Time Adjustment ua

Standards EN 932-5; ISO 565, 3310-1, 3310-2; ASTM E11, 323; BS 410-1, 410-2

Product Code

• UTG - 0323 Sieve Shaker with Frequency and Time Adjustment, for 200/300/400 mm (8”/12”/16”) Dia. Frame Sieves
• UTG - 0327 Noise Reduction Box for UTG-0323, UTG-0326 and UTG-0328 Sieve Shakers

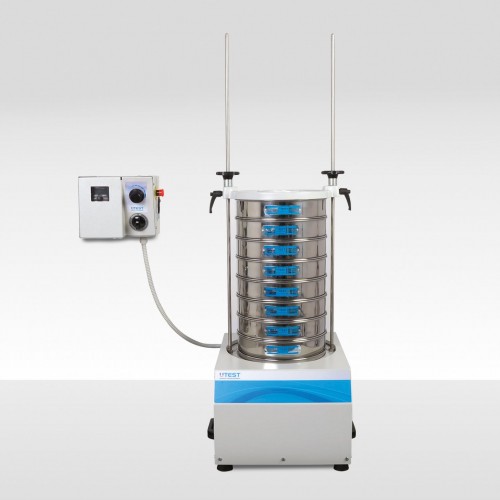

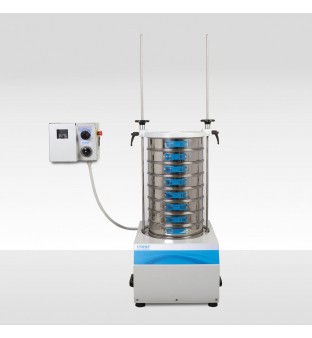

The UTG-0423 Sieve Shaker is fitted with a very efficient clamping device that ensures sieves are held firmly without over-tightening and allows them to be quickly removed and replaced.

Non-corrodible and non-metallic springs makes the UTD-0423 a maintenance-free device. The shaker is fitted with a timer which can be preset to any duration up to 60 minutes.

The UTG-0423 sieve shaker has been specially designed to operate with heavy samples without loss of performance. It is equipped with a dynamic power source which ensures the right vibration is imparted to the sieves and sample for fast, accurate and reproducible tests. The vertical movement is fixed to ensure the sample spends maximum time on the sieve surface. The unique vibratory action also helps keep the apertures clear and free from binding.
