Semi-Automatic Compression Testing Machines for Cubes, Cylinders and Blocks

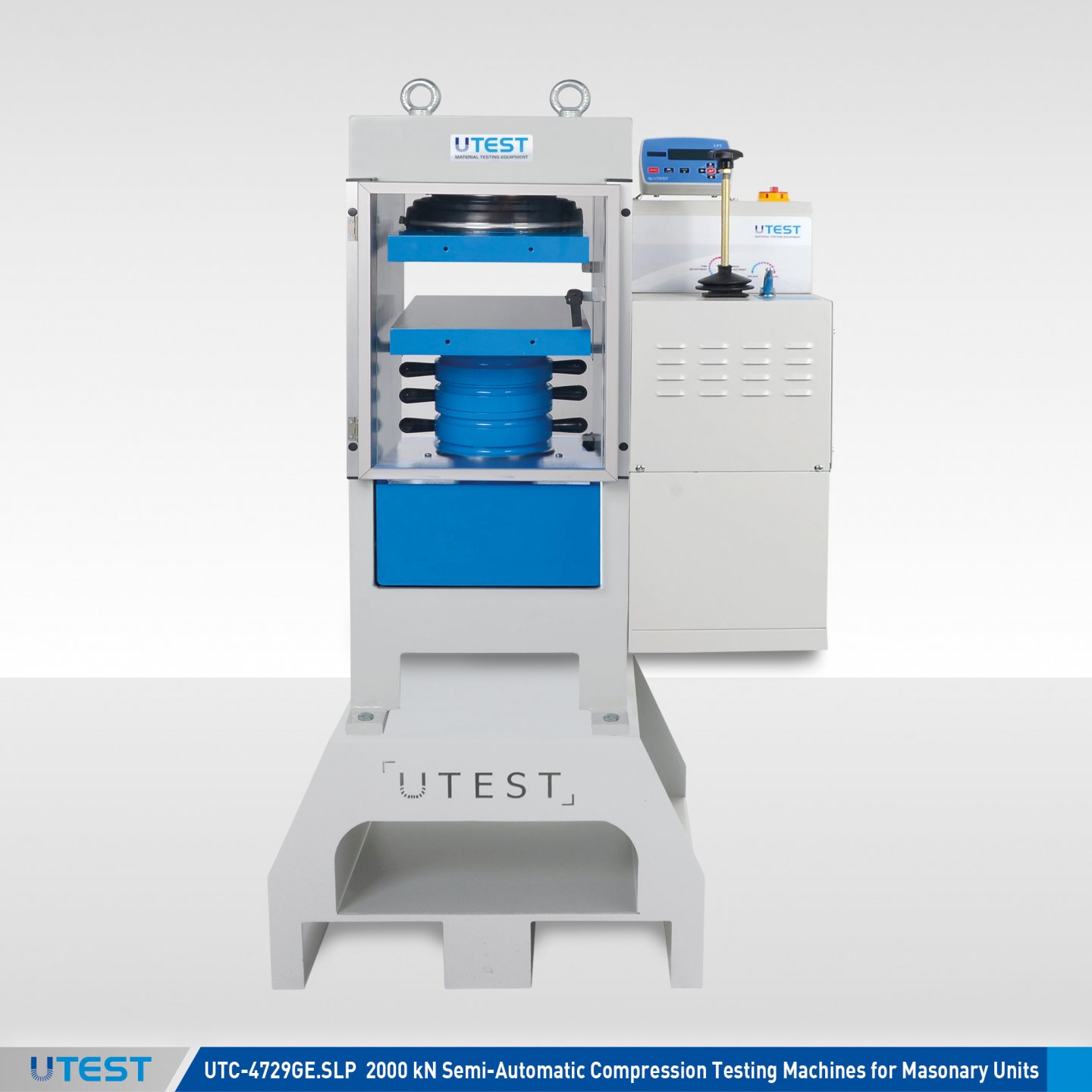

UTC-4714GE.SLP, UTC-4729GE.SLP, and UTC-4739GE.SLP model Semi-Automatic Compressıon Testıng Machines are manufactured for compression testing of masonary units/blocks, cubes and cylinders by taking into account user requests for general purposes (see below table).

These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.

The Machines consist of a welded frame ( see below table) and hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-UTC-4920LP).

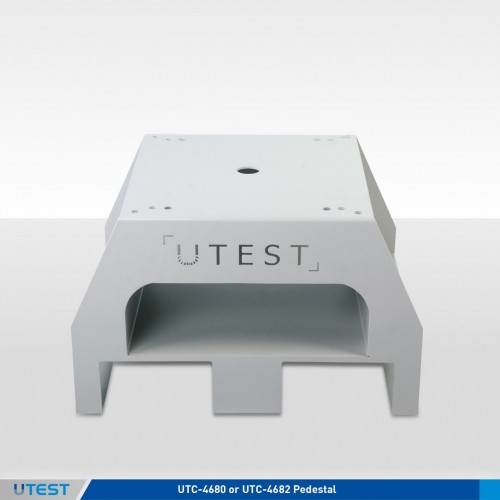

UTC-4682 Pedestal for the frames of the machines should be ordered separately.

USOFT-4820.SLP Test Software is improved for semi-automatic concrete compression and flexural testing machines with LPI Battery Operated Digital Readout Unit durring the test to collect and record data and to prepare the report containing the results obtained.Before the test, a PC which the Utest software is installed is connected to RS232 port of LPI reading unit, the data obtained in the test can be monitored and recorded in real time. The advanced functions for data base management provide an easy navigation of all saved data. Test report including the test results and user defined test information (names and the Company details, test type, specimen type, user info and other knowledge required) can be print out.

GENERAL PURPOSE AND EN 772-1 SEMI-AUTOMATIC COMPRESSION TESTING MACHINE FOR MASONARY UNITS/BLOCKS, CUBES AND CYLINDERS
Models	UTC-4714GE.SLP	UTC-4729GE.SLP	UTC-4739GE.SLP

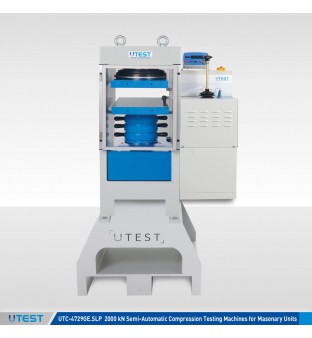

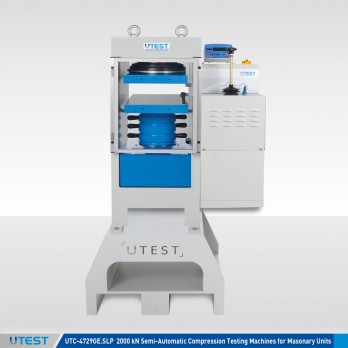

Product Photo
Capacity	1500 kN	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	220x410x50 mm	310x510x50 mm	310x510x50 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	220x410x50 mm	310x510x50 mm	310x510x50 mm
Flatness Tolerance	0,05 mm
Piston Diameter	230 mm	250 mm	300 mm
Piston Stroke	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm	330 mm	330 mm
Horizontal Clearance (B)	320 mm	360 mm	415 mm
For Masonary Units/Blocks Specimens Sizes (up to)	up to 200x400 mm masonary units/blocks	Ø160x320 mm Ø150x300 mm (Ø6"x12")	Ø160x320 mm Ø150x300 mm (Ø6"x12")
For Cylinder Specimens Sizes (up to)	up to Ø160x320 mm cylinders	up to Ø160x320 mm cylinders	up to Ø160x320 mm cylinders
For Cubes Specimens Sizes (up to)	200 mm	200 mm	200 mm
Power	550 W	550 W	550 W
Weight	540 kg	630 kg	850 kg
Oil Capacity	20 L	20 L	20 L
Maximum Working Pressure	370 Bar	410 Bar	410 Bar
Dimensions (wxlxh) (Axd*xF)	780x451x1104 mm	720x600x1144 mm	775x600x1204 mm
Weight	690 kg	850 kg	1070 kg
Pedestal (Optional)	UTC-4680	UTC-4682	2UTC-4682
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC

(d*) depth

(**) Limited by capacity of the frame
