UTC-4713G.SLP, UTC-4723G.SLP, UTC-4733G.SLP, UTC- UTC-4727G.SLP and UTC- UTC-4737G.SLP model Semi-Automatic Compressıon Testıng Machines are manufactured for compression testing of cubes and cylinders by taking into account user requests for general purposes. These machines also meet the requirements of CE norms with respect to the health and safety of the operator. And their user-friendly design enable an inexperienced operator to perform the test.
UTC- UTC-4727G.SLP ve UTC- UTC-4737G.SLP model products are designed for compressive-strength testing of larger size specimens.
The Machines consist of a welded frame ( see below table) and hydraulic power pack (UTC-4820) with LPI battery operated digital readout unit (UTC-4920LP).

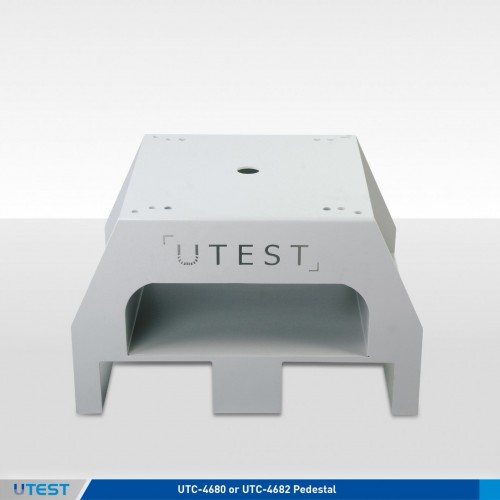

UTC-4680 andUTC-4682 Pedestal for the frames of the machines should be ordered separately.
Main FeaturesUSOFT-4820.SLP Test Software is improved for semi-automatic concrete compression and flexural testing machines with LPI Battery Operated Digital Readout Unit durring the test to collect and record data and to prepare the report containing the results obtained.Before the test, a PC which the Utest software is installed is connected to RS232 port of LPI reading unit, the data obtained in the test can be monitored and recorded in real time. The advanced functions for data base management provide an easy navigation of all saved data. Test report including the test results and user defined test information (names and the Company details, test type, specimen type, user info and other knowledge required) can be print out.
| ASTM AASHTO LOW CAPACITY SEMI-AUTOMATIC COMPRESSION TESTING MACHINES FOR CYLINDERS | ||
| Models | UTC-4602.SLP | UTC-4702.SLP |
| Product Photo |  |
 |
| Capacity | 600kN (135000 lbf) | 1100 kN (245000 lbf) |
| Frame Type | Welded Steel | Welded Steel |
| Lower Bearing Block, Dimensions (D) | Ø 165 mm (6,50") | |
| Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C) | Ø 165 mm (6,50") | |
| Surface Hardness of Bearing Blocks | ≥ 55 HRC | |
| Flatness Tolerance | 0,02 mm / 15 0mm (0,001”/6”) | |
| Piston Diameter | 150 mm (5,9”) | 190 mm (7,48”) |
| Piston Stroke | 50 mm (1,97”) | 350 mm (1,97”) |
| Maximum Vertical Clearance Between Bearing Blocks (E) | 340 mm (13,4”) | 380 mm (15”) |
| Horizontal Clearance (B) | 230 mm (9,06”) | 270 mm (10,6”) |
| For Cylinder Specimens Sizes | Ø100x200 mm (4”x8”) Ø150x300mm(6”x12”) (**) | Ø100x200 mm (4”x8”) Ø150x300mm(6”x12”) Ø160x320 mm |
| Power | 550 W | 550 W |
| Oil Capacity | 20 L (0,7 ft3) | 20 L (0,7 ft3) |
| Maximum Working Pressure | 340 Bar | 390 Bar |
| Dimensions (wxlxh) (Axd*xF) | 570x454x922 mm (22,44”x17,87”x36,30”) | 610x454x1042 mm (24,02”x17,87”x41,02”) |
| Weight | 361 kg (795 lbs) | 459 kg (1010 lbs) |
| Pedestal (Optional) | UTC-4680 | UTC-4680 |
(d*) depth
(**) Limited by capacity of the frame
The Machines are supplied complete with;
| GENERAL PURPOSE SEMI-AUTOMATIC COMPRESSION TESTING MACHINES WITH Ø216mm FOR CUBES AND CYLINDERS | |||

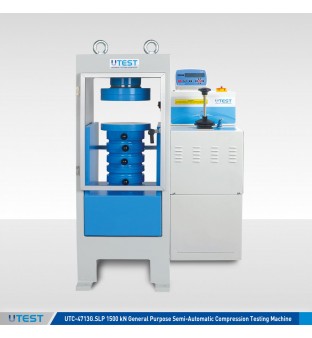

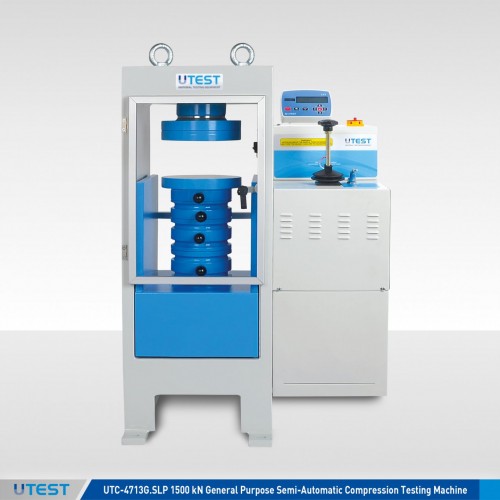

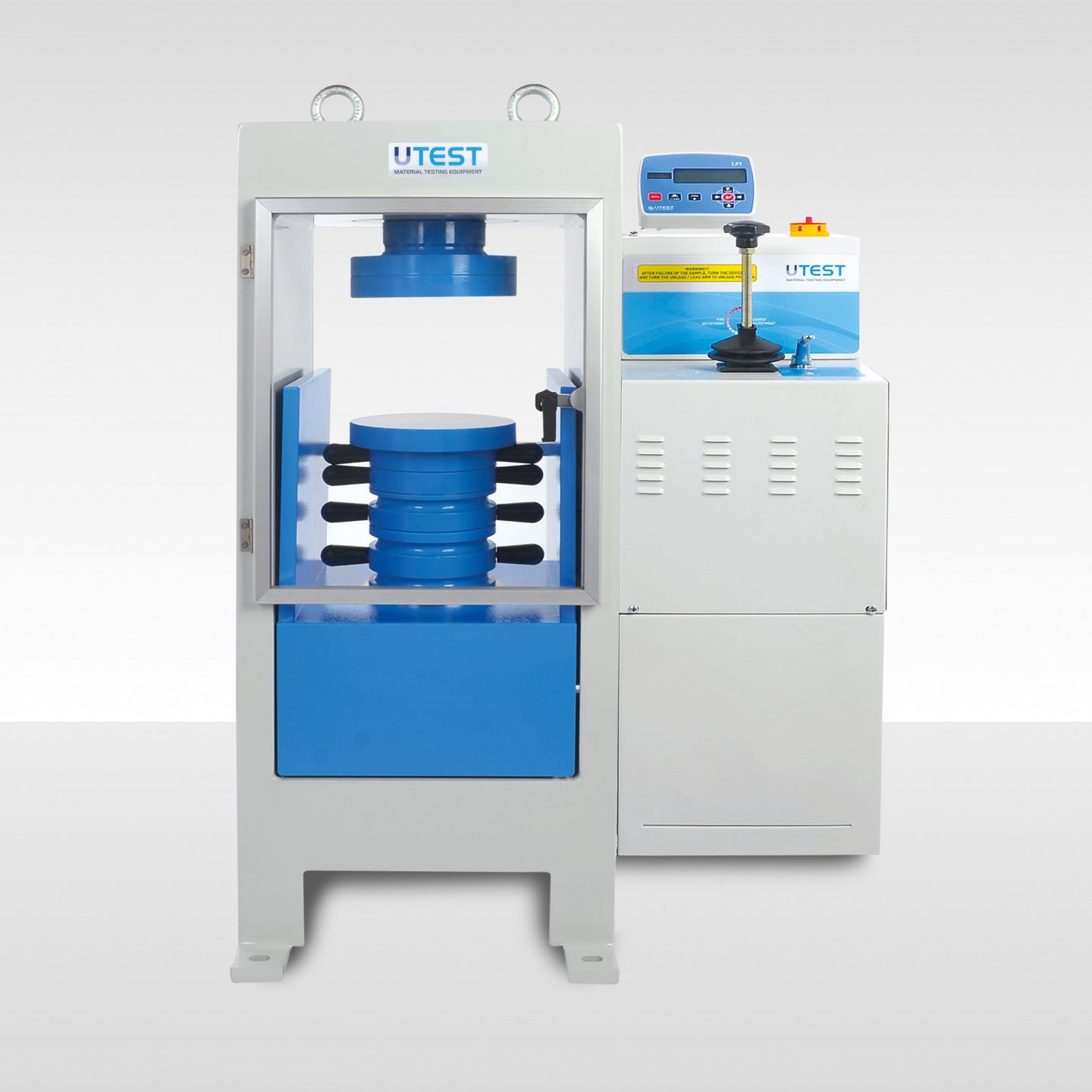

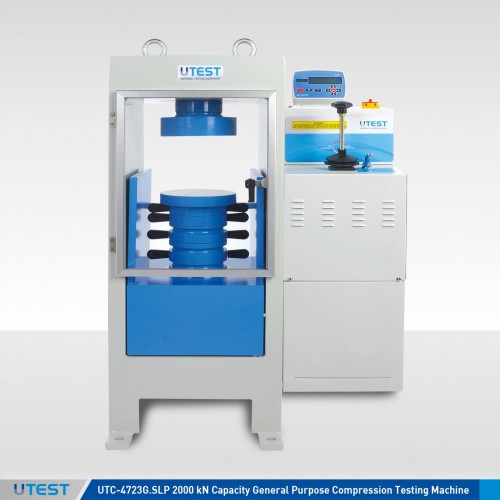

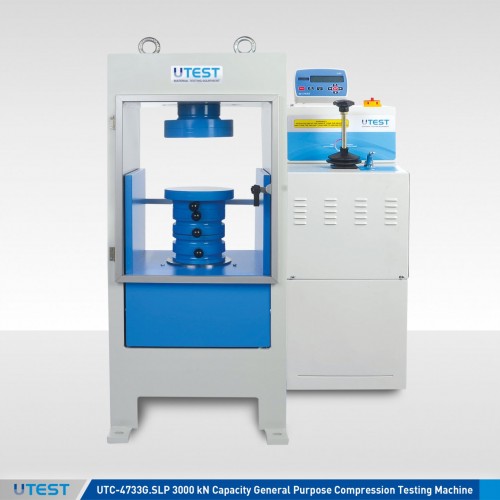

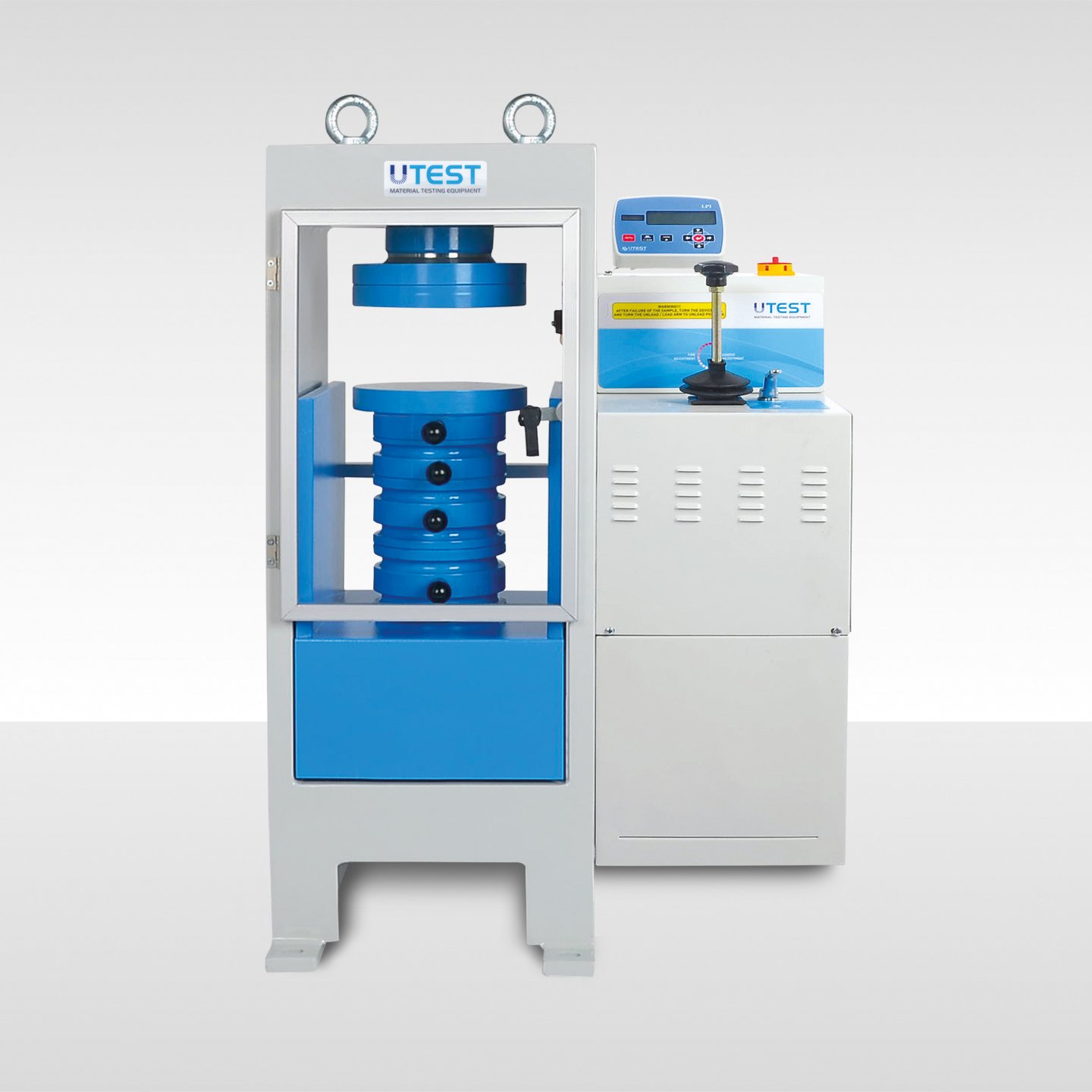

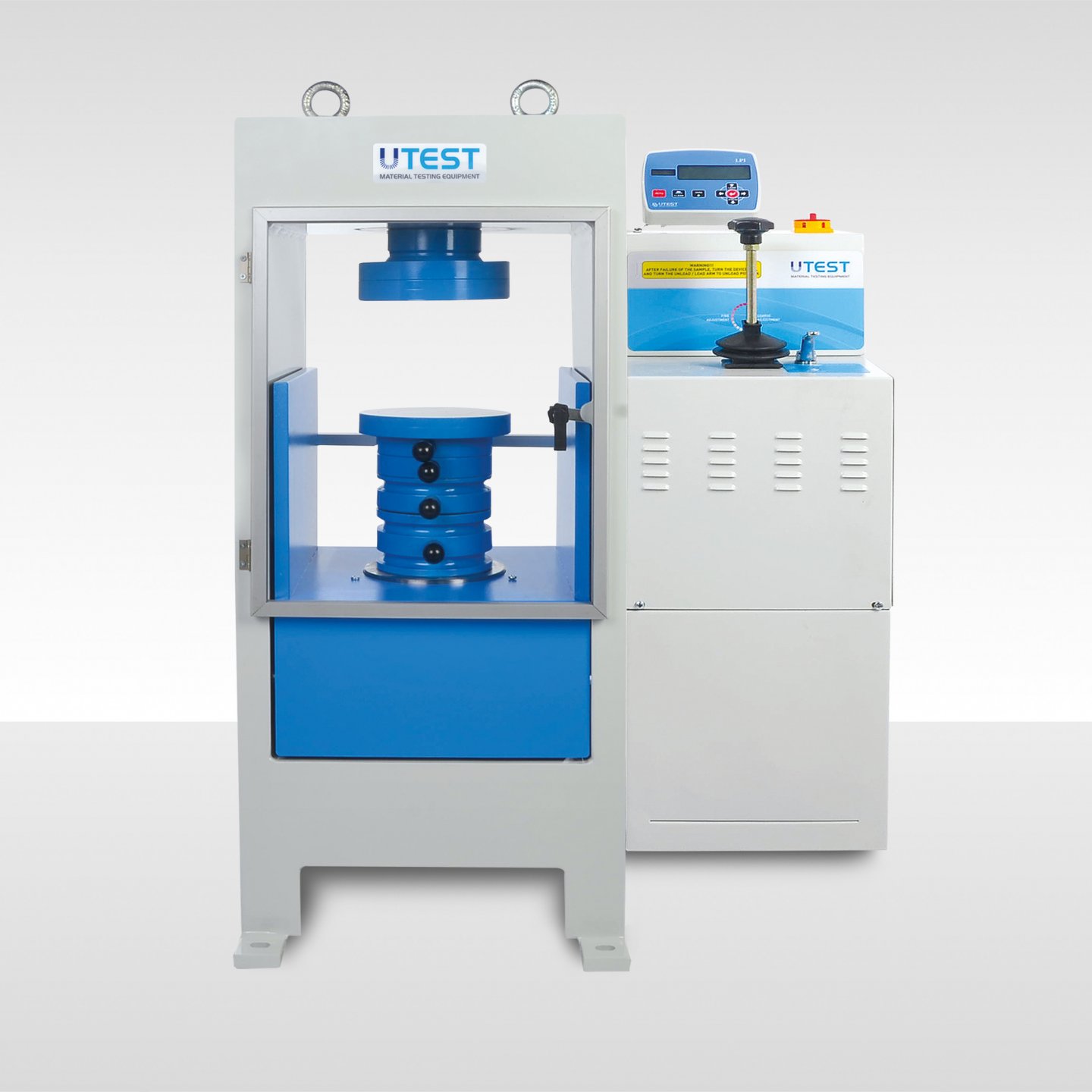

| Models | UTC-4713G.SLP | UTC-4723G.SLP | UTC-4733G.SLP |
| Product Photo |  |
 |
 |
| Capacity | 1500 kN | 2000 kN | 3000 kN |
| Frame Type | Welded Steel | Welded Steel | Welded Steel |
| Lower Bearing Block, Dimensions (D) | Ø 216 mm | ||
| Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C) | Ø 216 mm | ||
| Surface Hardness of Bearing Blocks | 55 HRC | ||
| Flatness Tolerance | 0,05 mm | ||
| Piston Diameter | 230 mm | 250 mm | 300 mm |
| Piston Stroke | 50 mm | 50 mm | 50 mm |
| Maximum Vertical Clearance Between Bearing Blocks (E) | 380 mm | 360 mm | 415 mm |
| For Cylinder Specimens Sizes (up to) | Ø160x320 mm Ø150x300 mm (Ø6"x12") | ||
| For Cubes Specimens Sizes (up to) | 150 mm | 200 mm (**) | 200 mm (**) |
| Dimensions (wxlxh) (Axd*xF) | 680x451x1104 mm | 720x453x1144 mm | 775x497x1204 mm |
| Weight | 610 kg | 700 kg | 920 kg |
| Pedestal (Optional) | UTC-4680 | UTC-4682 | UTC-4682 |
(d*) depth
(**) Limited by capacity of the frame
The frames are supplied complete with;
| GENERAL PURPOSE SEMI-AUTOMATIC COMPRESSION TESTING MACHINES WITH Ø300mm LOADING PLATENS FOR CUBES AND CYLINDERS | ||
| Models | UTC-4727G.SLP | UTC-4737G.SLP |
| Product Photo |  |
 |
| Capacity | 2000kN | 3000 kN |
| Frame Type | Welded Steel | Welded Steel |
| Lower Bearing Block, Dimensions (D) | Ø300 mm | |
| Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C) | Ø300 mm | |
| Surface Hardness of Bearing Blocks | 55 HRC | |
| Flatness Tolerance | 0,05 mm | |
| Piston Diameter | 250 mm | 300 mm |
| Piston Stroke | 50 mm | 50 mm |
| Maximum Vertical Clearance Between Bearing Blocks (E) | 350 mm | 350 mm |
| Horizontal Clearance (B) | 360 mm | 415 mm |
| For Cylinder Specimens Sizes | Ø160x320 mm | Ø160x320 mm |
| For Cubes Specimens Sizes (up to) | 200 mm (**) | 200 mm (**) |
| Dimensions (wxlxh) (Axd*xF) | 720x453x1144 mm | 775x497x1204 mm |
| Weight | 735 kg | 960 kg |
| Pedestal (Optional) | UTC-4682 | UTC-4682 |
(d*) depth
(**) Limited by capacity of the frame
The machines are supplied complete with;
| Виробник | |
| Виробник | Utest |
| Технічні характеристики | |
| Електроживлення | 220-240Вт, 50-60 Гц, 1фаза |
