The UTEST Semi-Automatic (Motorized) range of single testing chamber and double testing chamber compression and flexure testing machines have been designed for reliable and consistent testing of mortar samples. These compression and flexure testers are the results of continuous applications and research studies to upgrade the machines with the latest technologies and conform with current standards EN 196-1, 459-2, 1015-11, 13454-2; ASTM C 109, C348, C349 and BS 3892-1, 4551-1 in terms of its technical properties taking into account client requirements by using suitable accessories. These testers also meet the requirements of CE norms for safety and health of the operator.
The UTEST Semi-Automatic cement compression and flexure testing machines allow operators who have minimal experience to perform the tests.

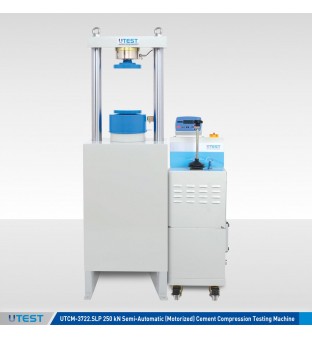

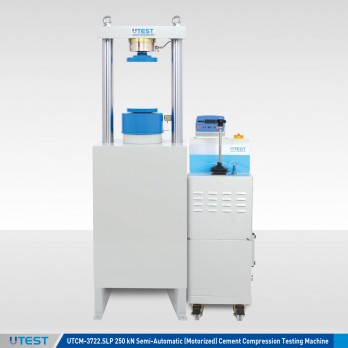

The UTEST Semi-Automatic cement compression and flexure testing machines consist of a very rigid two column single or double chamber frame and UTC-4820SLP hydraulic powerpack with LPI Battery Operated Digital Readout Unit.
Compression and flexure jigs, distance pieces, and also removable transparent front-rear safety doors (should be factory installed) should be ordered separately.

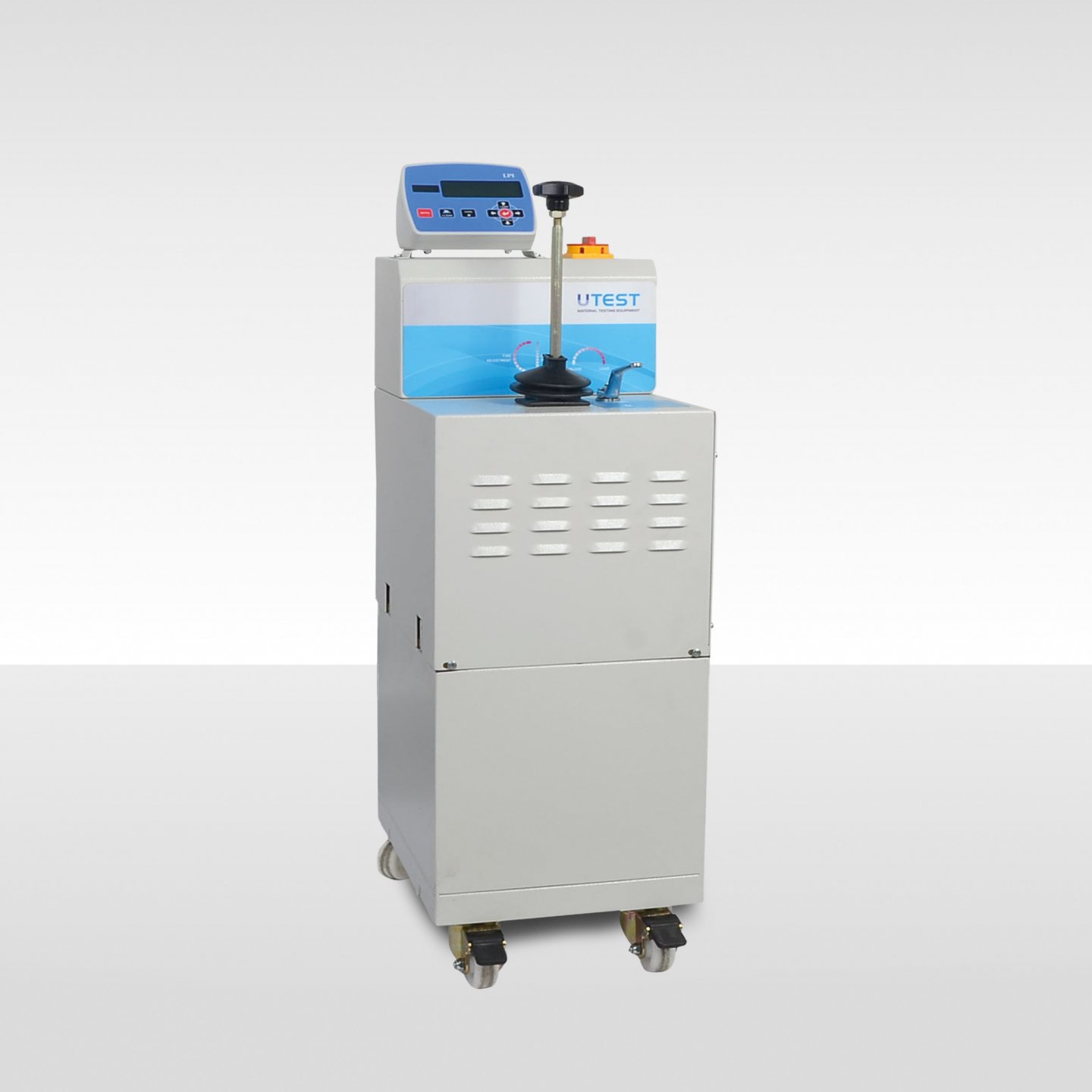

Power PackThe UTC-4820 Motorized (Semi-Automatic) Power Pack, controlled by a pressure rate control valve, is designed to supply the required oil to the load frames for loading. The power pack can load different frames with required pace rates. A rapid approach pump is supplied as standard. The power pack is equipped with a safety valve (maximum pressure valve) to avoid machine overloading.
The dual stage pump is formed by two groups, one is low pressure gear pump and second high pressure radial piston pump.
On the dual stage pump, high delivery low pressure gear pump is used for rapid approach, while low delivery high pressure durable variable output pump is used for test execution. Rapid approach property of the machine shortens the time interval from the piston starts moving until the upper platen touches to the specimen and helps to save a great amount of time in case of numerous specimens are going to be tested.
The motor which drives the dual pump is an AC motor and 0.55 kW.
A distribution block is used to control the oil flow direction supplied by the dual stage pump and those are are fitted to solenoid valve, safety valve (maximum pressure valve), low pressure gear pump and high pressure radial piston pump
The tank (20 L capacity) includes enough oil to fill the mechanism which pushes the ram during the test. The level and oil temperature can be seen on the indicator fitted to the tank. Hydraulic motor oil number 46, must be used in the tank.

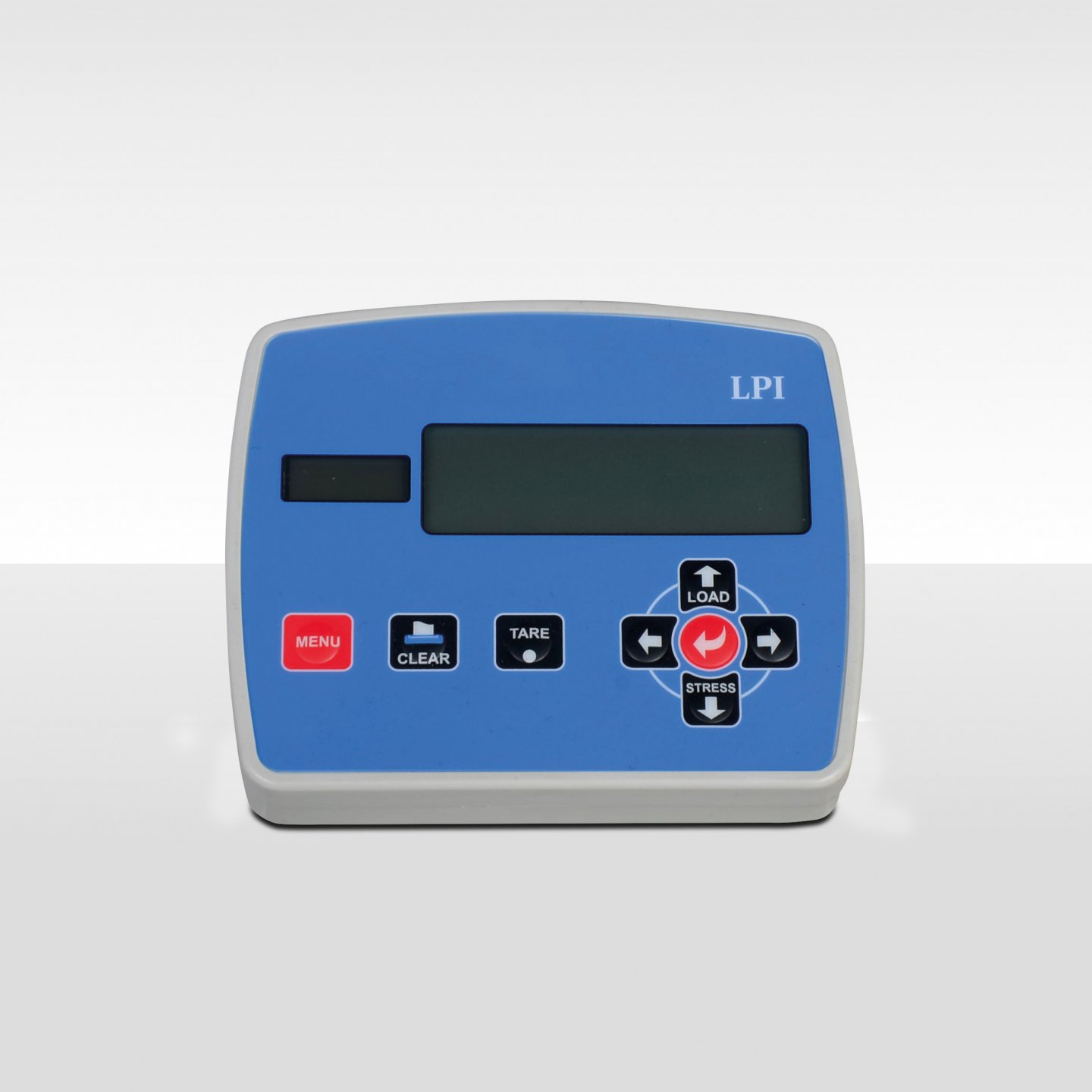

The LPI Battery Operated Digital Readout Unit (UTC-4920LP) has been designed to use with load cells or pressure transducers on different material test applications.
The unit is operates with DC voltage source of -1,5 to 1,5 volts.
USOFT-3722.SLP Test Software is improved for semi-automatic cement compression and flexural testing machineswith LPI Battery Operated Digital Readout Unit durring the test to collect and record data and to prepare the report containing the results obtained.Before the test, a PC which the Utest software is installed is connected to RS232 port of LPI reading unit, the data obtained in the test can be monitored and recorded in real time. The advanced functions for data base management provide an easy navigation of all saved data. Test report including the test results and user defined test information (names and the Company details, test type, specimen type, user info and other knowledge required) can be print out.
Technical Specifications| Model | UTCM-3722.SLP | UTCM-3722.SLP | |
| Test Type | Compression | Flexure | Compression |
| Capacity | 250 kN (56.200 lbf) | 15 kN (3370 lbf) | 250 kN(56.200 lbf) |
| Class 1 Measuring Range | 1 % for 250 kN | 1 % for 250 kN | 1 % for 250 kN |
| The Roughness Value for Texture of Loading Platens | ≤3.2 μm | ≤3.2 μm | ≤3.2 μm |
| Lower Platen Dimensions | 165 mm (6,5”) | 165 mm (6,5”) | 165 mm (6,5”) |
| Upper (spherical seated) Platen Dimensions | 165 mm (6,5”) | 165 mm (6,5”) | 165 mm (6,5”) |
| Maximum Vertical Clearance Between Platens | 237 mm (9,3”) | 237 mm (9,3”) | 237 mm (9,3”) |
| Piston Diameter | Ø160 mm (6,3”) | Ø160 mm (6,3”) | Ø160 mm (6,3”) |
| Maximum Piston Movement with Limit Switch | 20 mm (1,18”) | 20 mm (1,18”) | 20 mm (1,18”) |
| Horizontal Clearance | 300 mm (11,8”) | 274 mm (10,8”) | 266 mm (10,47”) |
| Power | 550 W | 550 W | 550 W |
| Oil Capacity | 20 L (0,7 ft3) | 20 L (0,7 ft3) | 20 L (0,7 ft3) |
| Maximum Working Pressure | 125 bar | 30 - 125 bar | 30 - 125 bar |
| Rapid Approach Rate | 50 mm/min 2 inc/min | 80 mm/min 3,15 icn/min | 50 mm/min 2 inc/min |
| Dimensions (WxLxH) | 760x500x1580 mm (30”x19,7”x62,2”) | 950x500x1580 mm (37,4”x19,7”x62,2”) | 950x500x1580 mm (37,4”x19,7”x62,2”) |
| Weight | 255 kg (562 lbs) | 350 kg (772 lbs) | 350 kg (772 lbs) |
The Maximum horizontal clearance for placing the sample is limited by the border of the platens. Sample must be placed such that its ends will not overlap the ends of platens and it must be centered perfectly. The suitable vertical clearance for the specimen can be adjusted using the distance pieces.
| Виробник | |
| Виробник | Utest |
| Технічні характеристики | |
| Максимальний робочий тиск | 125 бар (для моделей UTCM-3722.SLP) / 30–125 бар (для моделей UTCM-3742.SLP) |
| Ємність масла | 20 л |
| Діаметр поршня | Ø160 мм (6,3”) |
| Діапазон вимірювання класу 1 | 1 % для 250 кН |
| Значення шорсткості для текстури завантажувальних плит | ≤ 3,2 мкм |
| Максимальний вертикальний зазор між пластинами | 237 мм (9,3”) |
| Максимальний рух поршня з кінцевим вимикачем | 20 мм (1,18”) |
| Розміри верхньої (сферичної посадки) плити | Ø165 мм (6,5”) |
| Розміри нижньої плити | Ø165 мм (6,5”) |
| Електроживлення | 220-240В, 50-60 Гц, 1ф |
| Номінальна потужність | 550 Вт |
