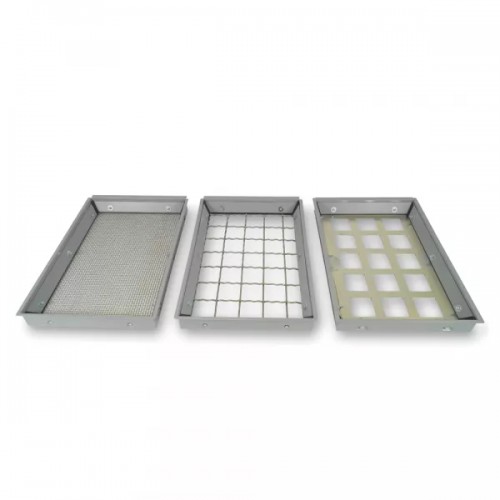

Designed for sizing large quantity of aggregates from 4” size (101.6 mm), down to N° 200 opening (0.074 mm). Used with the High capacity screen shaker 15-D0420/A, can size up to 30 liters (1 cubic feet) of aggregates.
Made from steel, are available in different versions:
ASTM E11, Woven wire Coarse, Intermediate, Fine and Fine with reinforced mesh, stainless steel
ISO 3310-1 and ISO 3310-2 Woven wire stainless steel cloth and Perforated steel metal plate
| SCREEN TRAYS |
| ASTM E11 |
ISO 3310-1 |
ISO 3310-2 |
| Coarse series |
Intermediate series |
Fine series |
Fine series with reinforcement mesh |
Woven wire cloth |
Of perforated metal plate |
| Code |
Sieve op. (mm) |
Alternative |
Code |
Sieve op. (mm) |
Alternative |
Code |
Sieve op. (mm) |
Alternative |
Code |
Sieve op. (mm) |
Alternative |
Code |
Nominal aperture (mm) |
Code |
Nominal aperture (mm) |
| 15-D0425/01 |
100 |
4” |
15-D0426/01 |
4.00 |
No. 5 |
115-D0427/01 |
1.18 |
No. 16 |
15-D0428/01 |
0.125 |
No. 120 |
15-D0427/E02 |
80 μm |
15-D0425/E05 |
5.6 |
| 15-D0425/02 |
90 |
3 ½” |
15-D0426/02 |
3.35 |
No. 6 |
115-D0427/02 |
1.00 |
No. 18 |
15-D0428/02 |
0.106 |
No. 140 |
15-D0427/E04 |
100 μm |
15-D0425/E08 |
7.1 |
| 15-D0425/03 |
75 |
3” |
15-D0426/03 |
2.80 |
No. 7 |
115-D0427/03 |
0.850 |
No. 20 |
15-D0428/03 |
0.090 |
No. 170 |
15-D0427/E08 |
160 μm |
15-D0425/E09 |
8 |
| 15-D0425/04 |
63 |
2½” |
15-D0426/04 |
2,36 |
No. 8 |
115-D0427/04 |
0.710 |
No. 25 |
15-D0428/04 |
0.075 |
No. 200 |
15-D0427/E10 |
200 μm |
15-D0425/E12 |
10 |
| 15-D0425/05 |
53 |
2.12” |
15-D0426/05 |
2.00 |
No. 10 |
115-D0427/05 |
0.600 |
No. 30 |
- |
- |
- |
15-D0427/E12 |
250 μm |
15-D0425/E13 |
11.2 |
| 15-D0425/07 |
45 |
1¾” |
15-D0426/06 |
1.7 |
No. 12 |
115-D0427/06 |
0.500 |
No. 35 |
- |
- |
- |
15-D0427/E14 |
315 μm |
15-D0425/E16 |
14 |
| 15-D0425/09 |
31.5 |
11/4” |
15-D0426/07 |
1.4 |
No. 14 |
115-D0427/07 |
0.425 |
No. 40 |
- |
- |
- |
15-D0427/E15 |
355 μm |
15-D0425/E17 |
16 |
| 15-D0425/10 |
26.5 |
1.06” |
- |
- |
- |
115-D0427/08 |
0.355 |
No. 45 |
- |
- |
- |
15-D0427/E16 |
400 μm |
15-D0425/E18 |
18 |
| 15-D0425/12 |
22.4 |
7/8” |
- |
- |
- |
115-D0427/09 |
0.300 |
No. 50 |
- |
- |
- |
15-D0427/E20 |
630 μm |
15-D0425/E19 |
20 |
| 15-D0425/14 |
16.0 |
5/8” |
- |
- |
- |
115-D0427/10 |
0.250 |
No. 60 |
- |
- |
- |
15-D0427/E22 |
800 μm |
15-D0425/E20 |
22.4 |
| 15-D0425/15 |
13.2 |
0.530” |
- |
- |
- |
115-D0427/11 |
0.212 |
No. 70 |
- |
- |
- |
15-D0427/E26 |
1.25 mm |
15-D0425/E24 |
31.5 |
| 15-D0425/17 |
11.2 |
7/16” |
- |
- |
- |
115-D0427/12 |
0.180 |
No. 80 |
- |
- |
- |
15-D0427/E28 |
1.6 mm |
15-D0425/E26 |
40 |
| 15-D0425/18 |
9.5 |
3/8” |
- |
- |
- |
115-D0427/13 |
0.150 |
No. 100 |
- |
- |
- |
15-D0427/E34 |
3.15 mm |
15-D0425/E28 |
50 |
| 15-D0425/19 |
8.0 |
5/16” |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
15-D0425/E30 |
56 |
| 15-D0425/20 |
6.7 |
0.265” |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
15-D0425/E31 |
63 |
| 15-D0425/21 |
6.3 |
1/4” |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
15-D0425/E33 |
780 |
| 15-D0425/22 |
5.6 |
No.3½” |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
| 15-D0425/23 |
4.75 |
No. 4 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
