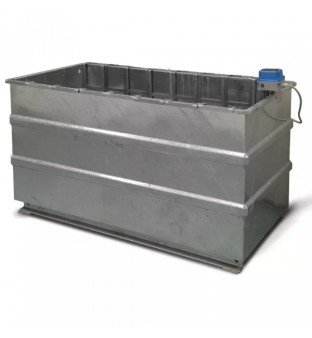

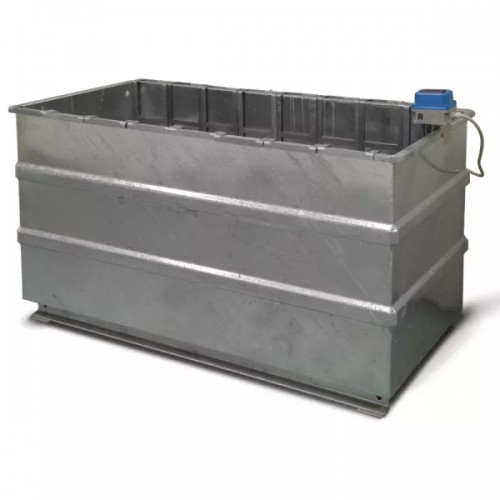

Zinc plated steel model 55-C0191
Specimen curing tank, 1000 l cap. galvanized steel, complete with metal base specimen supporting grid. It can be fit with various accessories including:
- immersion analogic and digital heating systems (55-C0191/10, 55-C0191/11)
- submersible circulator pump to maintain uniform the water temperature (55-C0191/5)
- metal cover (55-0191/12)

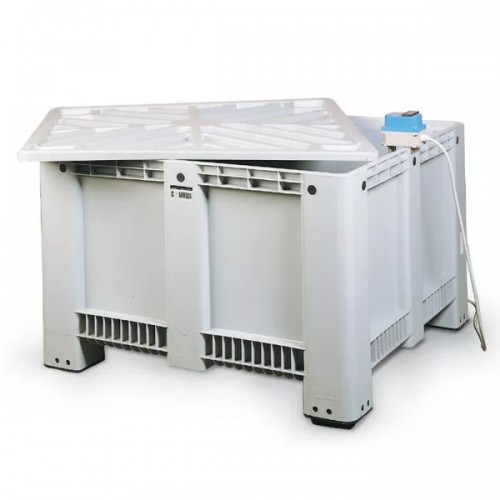

Heavy plastic model 55-C0193/A and 55-C0193/R
Ideal for site laboratory, supplied complete with robust metal internal base to hold concrete specimens without distortions. They can be fit with various accessories including:
- immersion analogic and digital heating systems (55-C0193/5, 55-C0193/5R, 55-C0193/6, 55-C0193/6R
- submersible circulator pump to maintain uniform the water temperature (55-C0191/5)
- plastic cover (55-0193/A1, 55-C0193/R1)
- See accessories.
Technical Specifications
| Model 55- |
C0191 |
C0193/A |
C0193/R |
| Inside dim. mm |
1500x750x780 |
1040x1040x605 |
1100x710x690 |
| Outside dim. mm |
1550x805x820 |
1130x1130x760 |
1200x800x850 |
| Capacity l |
1000 |
650 |
550 |
Specimen capacity*
(150 mm cubes) |
64 (with racks) |
36 |
24 |
| Weight kg approx. |
110 |
30 |
30 |
| Accessories for: |
Immersion analogue
heater |
55-C0191/10
|
55-C0193/5
|
55-C0193/5R
|
Immersion digital
heater |
55-C0191/11
|
55-C0193/6
|
55-C0193/6R
|
| Cover |
55-C0191/12 |
55-C0193/A1 |
55-C0193/R1 |
Submersible circulator
Pump |
55-C0191/5 |
*Conventionally we have specified 150 mm cube specimens but, any other type or dimensions are accepted within the limit of the tank dimension.
| Виробник |
| Виробник |
Controls |

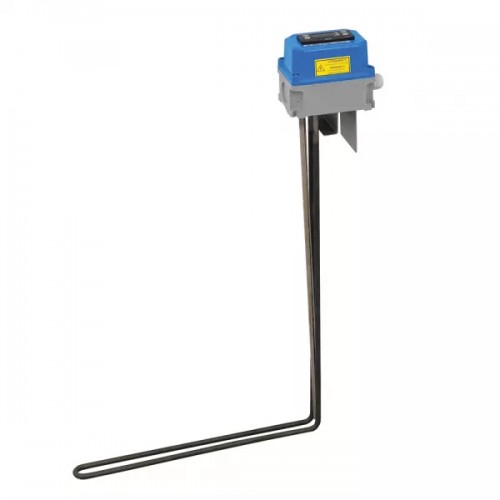

55-C0191/10 - Thermostatic analogic submersible heating system for curing tank 55-C0191. 1500 W

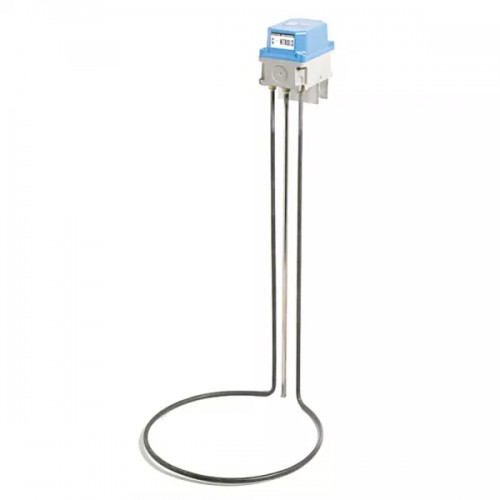

55-C0191/11 - Thermostatic digital submersible heating system for curing tank 55-C0191. 1500 W
55-C0191/12 - Metal cover for curing tank 55-C0191
55-C0191/3 - Upper rack
55-C0193/A1 - Plastic cover for 55-C193/A
55-C0193/R1 - Plastic cover for 55-C0193/R

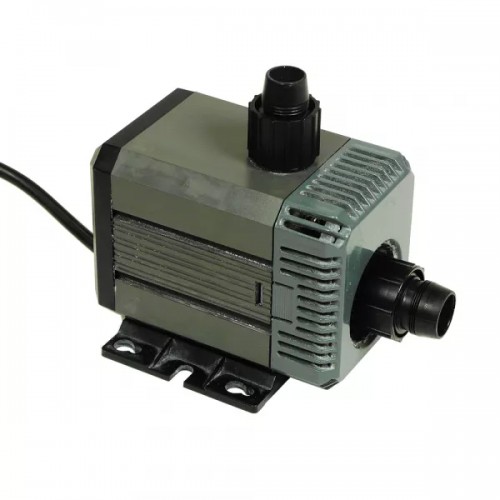

55-C0191/5 - Submersible circulation pump for tanks. 230V, 50-60 Hz, 1Ph
55-C0193/5 - Thermostat analogic heating system 1500W. 230V, 50-60 Hz, 1Ph
55-C0193/5R - Thermostat analogic heating system for curing tanks mod. 55-C0193/R. 230V, 50-60 Hz, 1Ph
55-C0193/6R - Thermostat heating system with digital display/ thermoregulator for curing tanks model 55-C0193/R. 230V, 50-60 Hz, 1Ph
