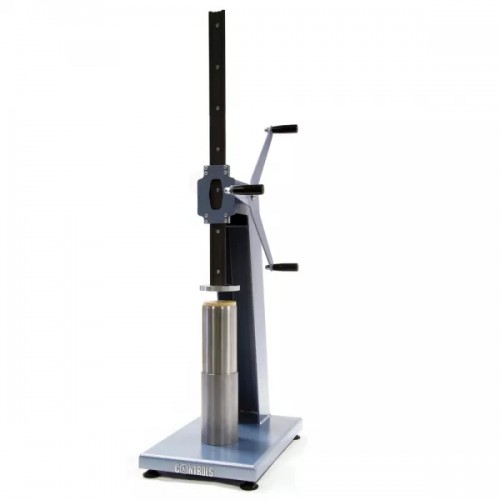

This versatile sampler can be used to extrude and prepare soil samples for the following soil mechanics tests:
consolidation
shear
triaxial
permeability
other tests

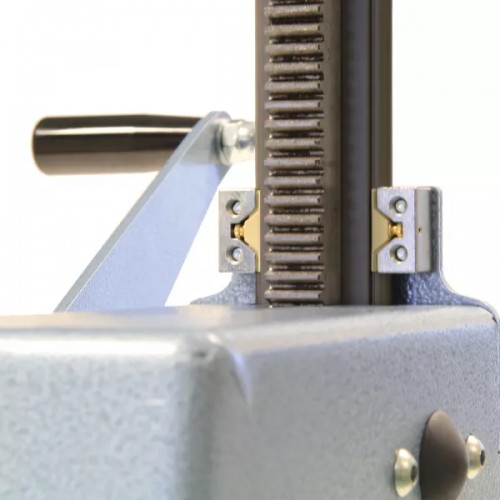

Various circular, cylindrical and square cutters are available from our range, depending on the geotechnical test to be performed. The cutter is genlty (thank to the rack and pinion mechanism) pushed into the soil core and then extruded with the extrusion dolly. See the table of accessories for more details.
Main features
Specimen cutting: up to 100mm circular and square samples
Speciment extrusion: up to 200mm high samples (more than 600mm daylight is required for 100mm dia sample extrusion)
| Виробник |
| Виробник |
Controls |
26-WF0320/3 - Cutting ring for 50.47mm diameter samples
26-WF0321/3 - Cutter ring for 63.50mm diameter samples
26-WF0325/3 - Cutter ring for 71.40mm diameter samples
26-WF0326/3 - Cutter ring for 75mm diameter samples
26-WF0335/3 - Cutter ring for 112.80mm diameter samples
27-WF0215/B7 - Sample cutter for 60mm square samples
27-WF0216/B7 - Sample cutter for 100mm square samples
27-WF0217/B7 - Sample cutter for 50mm dia samples
27-WF0218/B7 - Sample cutter for 60mm dia samples
27-WF0219/B7 - Sample cutter for 63.5mm dia samples
27-WF0222/B7 - Sample cutter for 100mm
28-WF0420/9 - Hand sampler for 35 mm dia samples
28-WF4031/G - Hand sampler complete of cutter, dolly and receiver for 38mm samples
28-WF4051/G - Hand sampler complete of cutter, dolly and receiver for 50mm samples
28-WF4071/G - Hand sampler complete of cutter, dolly and receiver for 70mm samples
28-WF4101/G - Hand sampler complete of cutter, dolly and receiver for 100mm samples
