Потенційна лужно-кремнеземна реакційна здатність агрегатів. Хімічний метод

Обрати іншу модель Копіювати посилання
Потенційна лужно-кремнеземна реакційна здатність агрегатів. Хімічний метод
Характеристики
Standards UNI 8520:22, ASTM C289, NF P94-048

Manufacturer Controls

48-D0545 - Reaction container

62-L0009/A -3 gang mould with plugs for the measurement of dimension variations to UNI 8520-22

Дивитися повний опис

ASTM, NF, UNE and UNI standard use the reaction container code 48-D0545 for the chemical determination of potential reactivity of aggregates with alkalies in Portland cement concrete. Other apparatus are also needed, for example the Jar Milles models 48-D0544 and 48-D0544/A (see link to other products below).

UNI 8520-22 also requires the Three gang mould 25x25x280 mm code 62L0009/A.

The 48-D0545 container is made from stainless steel and is fit with an airtight cover. Capacity 59 cm3 approx.

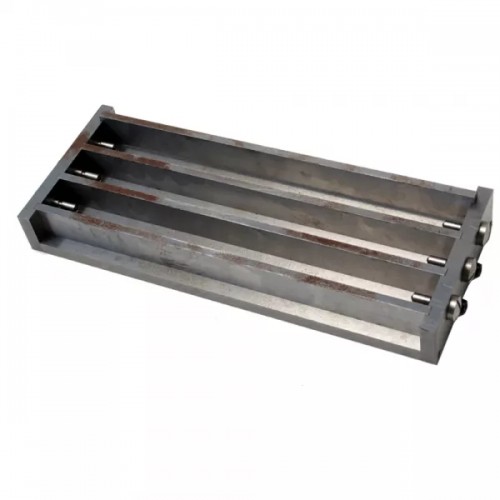

The 62-L0009/A mould, is made from steel having a minimum surface hardness of HV200.

The measurement of the 25x25x280 mm specimen is performed with the Length Comparator. See accessories and link to other products below.

Виробник
Виробник Controls

62-L0035/A - Length comparator digital version. Comprehends digital gauge with output for PC connection (special cable required) - reference bar not included

62-L0009/1 - Spare shrinkage plugs to UNI 6687.(Pack of 12)

82-D1261/LINK - Serial cable for PC connection

62-L0034/11 - Reference rod 294 mm for mould 62-L0009/A
