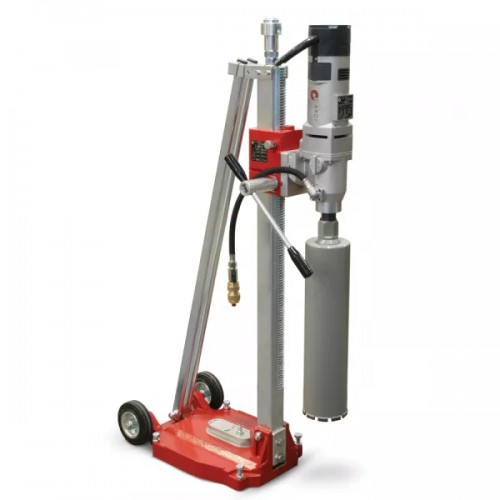

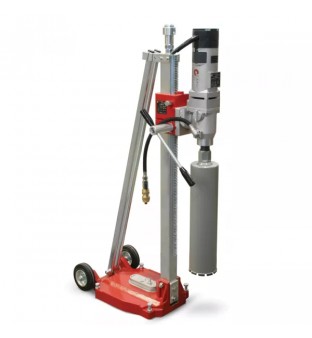

The machine is composed by three main parts:
- Electric motor speed reducer
- Light alloy base with adjustable feet, and wheels
- Support column

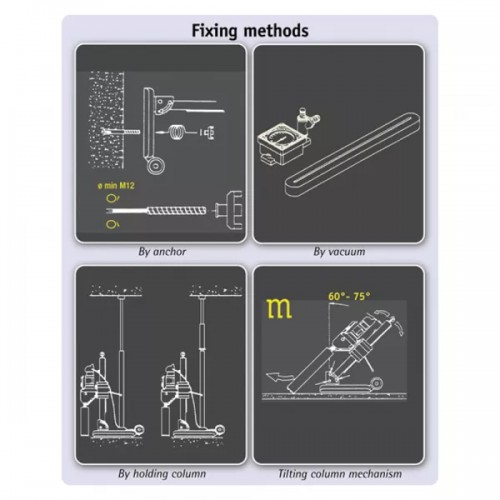

These three parts can be easily assembled and disassembled for transportation. The support steel column can be angled with respect to the base. The motor support is mounted on rollers and ball bearings. The aluminium base can be easily fit on site by anchors, by suitable holding column or by vacuum using the appropriate accessory (see accessories). The machine can be used at any angle within the horizontal position by the appropriate fixing making sure that flushing water does not drop directly onto the motor . For internal use we suggest the machine is fit with a water collector system (see accessories, 83-C0350/5 Water collecting ring).
We propose other models of coring machines: Universal heavy duty model (see \#universal-core-drilling-machine\#) and for asphalt coring (see \#pavement-core-drilling-machine\#).
Core bits, extension, strap wrench, and other accessories, not included. See accessories.
Main features
- Light and portable: weighs 36 kg only
- Steel tilting column up to 60-75°
- Slide with rollers and ball bearings
- Aluminium base fixable by anchors or vacuum horizontally or vertically
| Core bits |
To take core dia. mm |
Weight approx. kg |
Suitable core extractor model |
| 83-C0320 |
50 |
2.2 |
83-C0310/2 |
| 83-C0321 |
75 |
2.8 |
83-C0311/2 |
| 83-C0322 |
100 |
3.7 |
83-C0312/2 |
| 83-C0323 |
150 |
5.4 |
83-C0313/2 |
| 83-C0324 |
200 |
7.5 |
83-C0314/2 |
| Виробник |
| Виробник |
Controls |
83-C0324 - Coring bit for 200 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W
83-C0310/2 - Core extractor dia 50 mm
83-C0311/2 - Core extractor dia 75 mm
83-C0312/2 - Core extractor dia 100 mm
83-C0313/2 - Core extractor dia 150 mm
83-C0320 - Coring bit for 50 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W
83-C0321 - Coring bit for 75 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W
83-C0322 - Coring bit for 100 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W
83-C0323 - Coring bit for 150 mm dia x 400 mm long cores, with permanently attached head 1 1/4 W
83-C0350/2 - Tie-rod for core drill fastening
83-C0300/1 - Extension rod 228 mm long
83-C0300/2 - Strap wrench

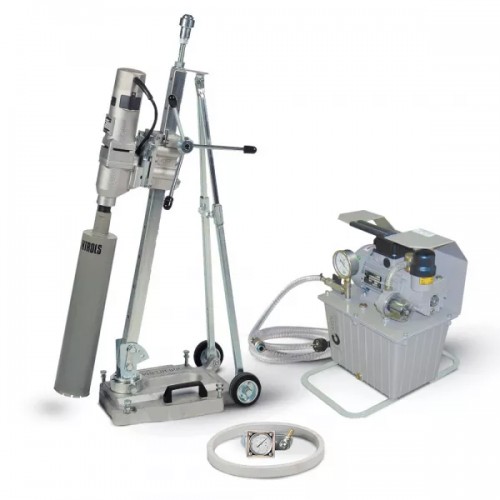

83-C0350/1 - Attachment kit for vacuum connection
83-C0350/2 - Tie-rod for core drill fastening
83-C0350/3 - Pack of 50 expansion bolts for core drill fastening

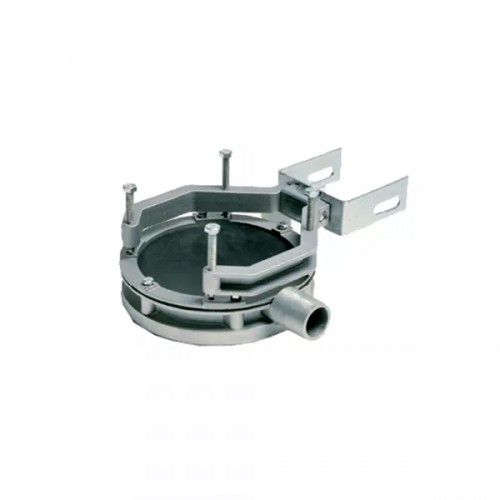

83-C0350/5 - Water collecting ring
83-C0365 - Vacuum pump with reservoir for universal coring machines. 230V, 50-60Hz, 1Ph
83-C0314/2 - Core extractor dia 200 mm
