Характеристики
Accuracy ±0.5%
Resolution infinite
Operating temperature range -40 to + 100°C
Sensitivity 2mV/V applied (nominal)
Full scale output 20 mV nominal
Cable 4 core PVC insulated, 1 m length
Connection thread ¼ BSP
Weight (approx.) 150 g

Manufacturer Conrtols
82-P0050 - Pressure transducer 0-50 bar (connecting cable notincluded)

82-P0050/C - Pressure transducer 0-50 bar (connecting cable notincluded) with traceable calibration certificate

82-P0100 - Pressure transducer 0-100 bar (connecting cable not included)

82-P0100/C - Pressure transducer 0-100 bar (connecting cable not included) with traceable calibration certificate

82-P0200 - Pressure transducer 0-200 bar (connecting cable not included)

82-P0200/C - Pressure transducer 0-200 bar (connecting cable not included) with traceable calibration certificate

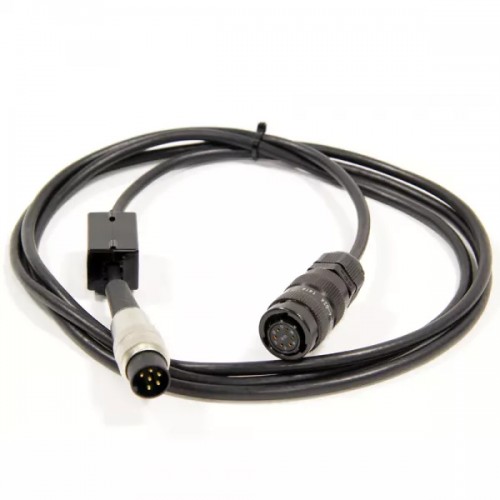

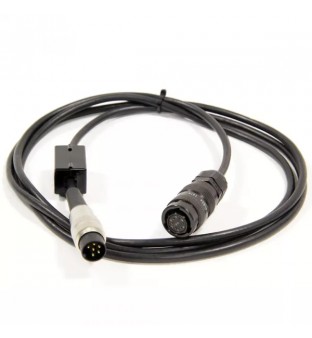

82-P0349/ELT - Connecting cable for pressure transducer. Suitablefor Smart-Line, Sercomp, MCC, Advantest control consoles and Compact-Line compression machines

82-P0350 - Pressure transducer 0-350 bar (connecting cable not included)

82-P0350/C - Pressure transducer 0-350 bar (connecting cable not included) with traceable calibration certificate

82-P0500/C - Pressure transducer 0-500 bar (connecting cable not included)

82-P0500/C - Pressure transducer 0-500 bar (connecting cable not included) with traceable calibration certificate

82-P0700 - Pressure transducer 0-700 bar (connecting cable not included)

82-P0700/C - Pressure transducer 0-700 bar (connecting cable not included) with traceable calibration certificate

82-Q50/PT - 700 bar pressure transducer complete with steel C-shape protection, hydraulic cylinder T-connectorand connecting cable for Smart-Line, Sercomp, MCC,Advantest control consoles and Compact-Line compression machines

Дивитися повний опис

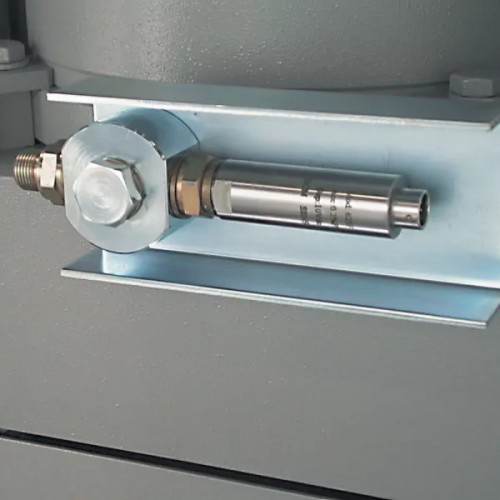

They provide a very accurate electrical signal strictly proportional to the pressure of the hydraulic circuit of the testing machine or apparatus. Featuring fully sealed stainless steel pressure chambers and diaphragms. The transducer use a full Wheatstone bridge circuit. The 50-Q50/PT model, mainly used for compression testing frames, is supplied complete with U-shaped metal protection. See picture.

Виробник
Виробник Controls
