Механічні тензометричні вимірювачі

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standarts BS 1881:206

Resolution 0.001 mm

Carrying case dimensions 300x400x110 mm

Weight (approx.) 2.1 kg

Manufacturer Conrtols

Всі характеристики

58-C0230/10D - Device for the measurement of length variation with digital dial gauge. Measuring base 100 mm. Measuring range 5 mm. Resolution 0.001 mm. Comprehends digital dial gauge with output for PC connection (special cable required)

58-C0230/30D - Device for the measurement of length variation with digital dial gauge. Measuring base 300 mm. Measuring range 5 mm. Resolution 0.001 mm. Comprehends digital dial gauge with output for PC connection (special cable required)

Дивитися повний опис

Збільшити

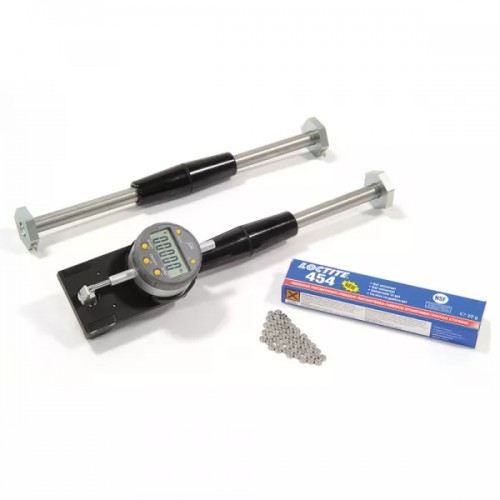

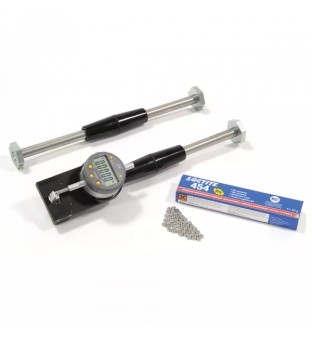

This apparatus used for determining the length changes was originally designed for use on concrete structures, but can also be conveniently used for any other type of structure including steel. The test set includes the extensometer with digital gauge resolution 0.001 mm, standard bar, calibration bar, 50 datum discs, adhesive compound for datum discs and carrying case.

Two models available: 100 and 300 measuring base.

Виробник
Виробник	Controls

58-C0230/1 - Datum discs. (pack of 50)

58-C0230/2 - Spare adhesive tube 20g

82-D1261/LINK - Serial cable for PC connection
