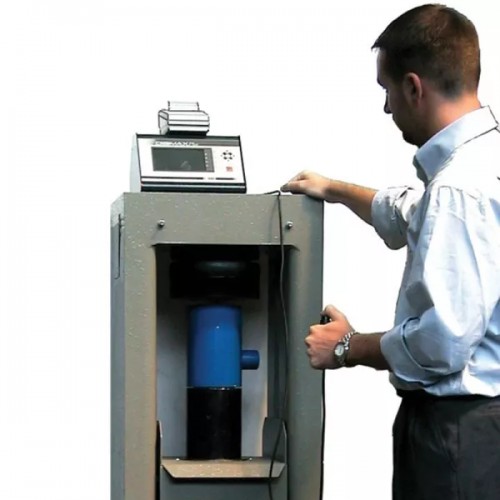

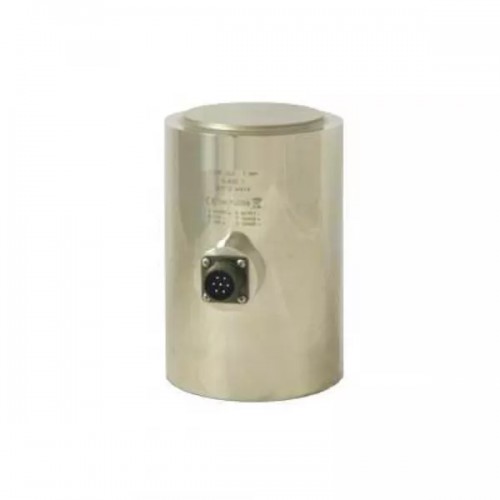

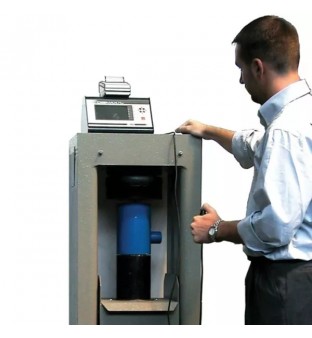

These high performance cells have been specially designed to meet the stringent requirement of EN, ISO and ASTM Standards, for calibration of compression testing machines. The cells have to be connected to a suitable Digital tester as, for example, our model 82-P0801/E Digimax Plus.
The Load cells connected to the Digital tester, can be supplied complete with Official or Traceable calibration certificate which, as specified, concern either the cell or the digital tester.
Main features
High accuracy: Class 1 EN ISO 376
Stainless steel construction
Can be supplied with Official or Traceable calibration certificate
Technical specifications
Accuracy: Class 1 EN ISO 376
Linearity: < = ± 0.05% F.S.
Hysteresys: < = ± 0.05% F.S.
Repeatability o° -120° -240°: < = ± 0.145% F.S.
Reversibility: < = ± 0.240% F.S.
Zero: < = ± 0.030% F.S.
Zero balance: < = ± 1% F.S.
Supply voltage: 10 V
Material: stainless steel
Connector type: MIL-C-5015 7 poles male
Complete with carrying case
| Виробник |
| Виробник |
Controls |
| Технічні характеристики |
| Точність |
Клас 1 EN ISO 376 |
| Гістерезис |
< = ± 0,05% повної шкали |
| Лінійність |
< = ± 0,05% повної шкали |
| Нуль |
< = ± 0,030% повної шкали |
| Нульовий баланс |
<=±1% F.S. |
| Повторюваність |
-120° -240°: < = ± 0,145% повної шкали |
| Ревирсивність |
<=±0,240% повної шкали |
| Тип роз'єму |
MIL-C-5015 7 - контактний штекер |
| Матеріал корпусу |
нержавіюча сталь |
| Напруга живлення |
10 В |
82-E0100/ACC4 - Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >1000 to 5000 kN.
82-E0100/TRC - Traceable calibration certificate for the load cell connected to suitable digital tester for force verification. Compatible with 5 kN up to 5000 kN capacity load cells.
82-E0100/ACC2 - Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >10 to 600 kN
82-E0100/ACC3 - Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >600 to 1000 kN.
82-E0100/ACC1 - Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >1 to 10 kN
