Large Size Heavy Duty Vacuum Pyknometer ua

Standards ASTM D2041; EN 12697-5

Product Code

• UTAS-0093Vacuum Pyknometer (Yale) 4.3L, Aluminium, for Rice Test
• UTAS-0094 Large Size Heavy Duty Vacuum Pyknometer (Yale) 10 lt, for Rice Tet
• UTG-0310 Vibro-Deaerator, Timer Controlled
• UTGE-3505 Vacuum Pump, 51 lt/min Capacity, 220-240 V 50-60 Hz, 1ph
• UTGE-3530 Dual Stage Vacuum Pump 128 lt/min Capacity, 220-240 V 50-60 Hz, 1ph
• UTGE-3552 Vacuum Gauge, Analog, -100 kPa, 1 kPa graduated, dia: Ø 63 mm
• UTGE-3570 Air Drying Unit/ Water Trap, Vacuum Type
• UTGG-2015 Filter Flask 2500 ml

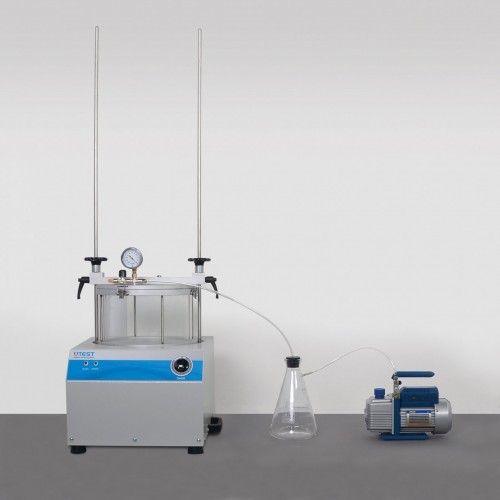

The Vacuum Pyknometers (Yale Pyknometer) are used for determining the theoretical maximum density of compacted or non-compacted bituminous paving mixtures (voidless mass). The Vacuum Pyknometers are used together with a Vibra-Dearator, Vacuum Pump and filter flask or air drying unit/water trap to complete the test set. Percent air voids in compacted bituminous mixtures and the amount of bitumen absorbed by the aggregates can also be calculated with the test.

UTAS-0093 consists of a 4,3 liter aluminium container, a transparent vacuum lid with vacuum gauge (UTGE-3552) and a transparent volumetric plate.

UTAS-0094 consists of a 10 liter transparent plastic container, a transparent vacuum lid with vacuum gauge (UTGE-3552) and a transparent volumetric plate.

Vacuum Pumps are supplied with 3m plastic tube (Ø8mm OD) and an oto-nipple.

UTGE-3552 Vacuum gauge, analog, scale range (-100/0 kPa), accuracy (1.0 % of scale range), 1 kPa graduated, Ø63 mm. Supplied with a valve, 4-way dispenser and muffler.

Vibra-Dearator (UTG-0130), Vacuum Pump and filter flask or air drying unit/water trap should be ordered separately.
