Коаксіальні екстензометри з фіксованою довжиною основи

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Стандарти ASTM A370, EN ISO 15630-1

Виробник Conrtols

Всі характеристики

70-C0961/E - Coaxial electronic extensometer to measure the elongation of wires up to failure. Gauge length: 600mm; Max travel: 50mm

70-C0961/G - Coaxial electronic extensometer for round specimens from 16 to 40 mm dia. Gauge length: 200 mm. Travel: 75 mm.

70-C0961/H - Coaxial electronic extensometer for round specimens from 6 to 26 mm dia. Gauge length: 200 mm. Travel: 50 mm.

Дивитися повний опис

Збільшити

Extensometers used for measuring the extension of specimens in traction, particularly in the case of steel and brittle materials, are only able to detect strain during the first stage of the test, or rather, while the brittle materials conserve their elasticity as they have to be disconnected before failure.

This simple and economic system fully satisfy these requirements because:

it is applied directly to the specimen
it remains connected until breakage
it measures extensions with high precision of both elastic and plastic stage and with the appropriate simple adjustment, it is connectable to almost all testing machines
управління за допомогою кольорового сенсорного дисплея (3,5")

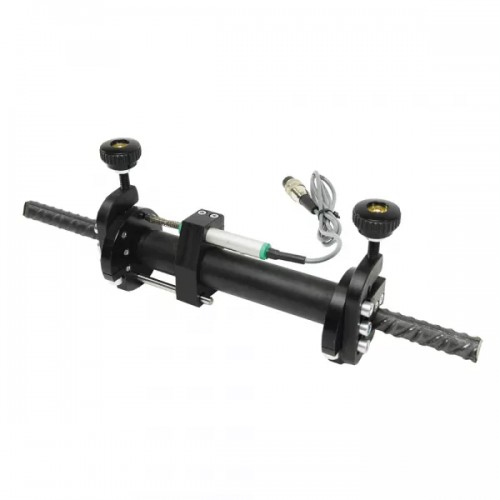

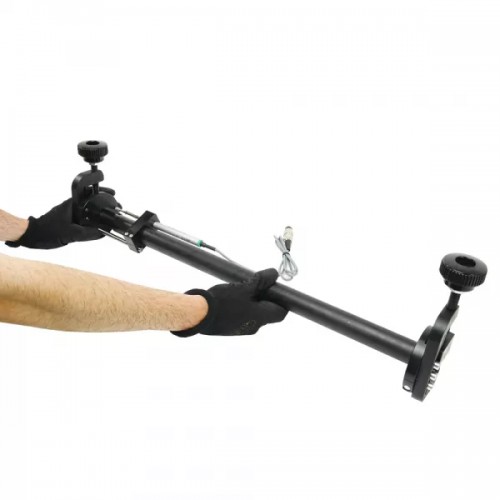

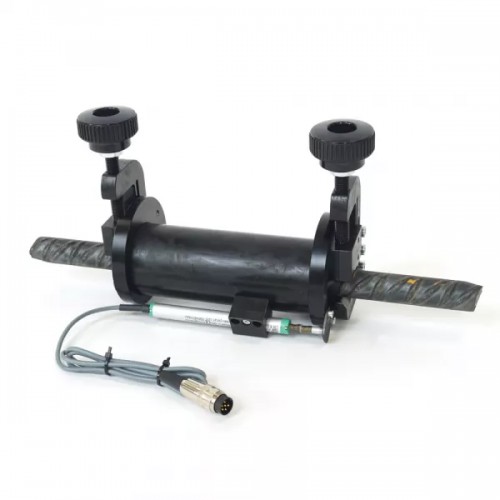

The extensometers are basically made by 2 clamping devices and a middle tubolar steel part determining the gauge length of 200 mm.

Technical specifications

Models	70-C0961/G	70-C0961/H	70-C0961/E
Measuring range dia. Min/Max	16 - 40	6 - 26	6.35 - 15.2 (strands)
Base length	200 mm	200 mm	200 mm
Transducer travel	75 mm	50 mm	50 mm

Виробник
Виробник	Controls

70-C0961/E, 70-C0961/G, 70-C0961/H
