GENERAL Purpose Testing Frames for Cubes and Cylinders

General purpose testing frames for cubes and cylinders consist of a rigid welded steel walls, a loading cylinder assembly and Ø 216 mm or Ø 300 mm a lower and an upper (spherically-seated) loading platens by taking into account user requests for general purposes.

The frames have a 380 mm vertical clearance that make possible to perform compression test of cylinders with capping retainers and neopren pads.

The General Purpose compression testing frames provides the stability needed for accurate and repeatable test results over the years of operation.

Any hydraulic power pack with control and read out unit and a pressure transducer for measuring the loads, can be positioned on the right hand side of the load frames for easier accessibility, increased productivity and for safer operations.

All frames also have front and rear protective doors and limit swich for piston stroke for safety,

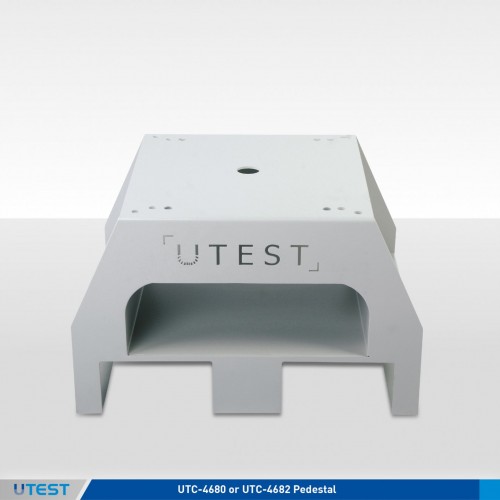

UTC-4680 and UTC-4682 Pedestals that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

See the below tables for supplied items with the frames.

GENERAL PURPOSE AND EN 772-1 COMPRESSION TESTING FRAMES FOR MASONARY UNITS/BLOCKS, CUBES AND CYLINDERS

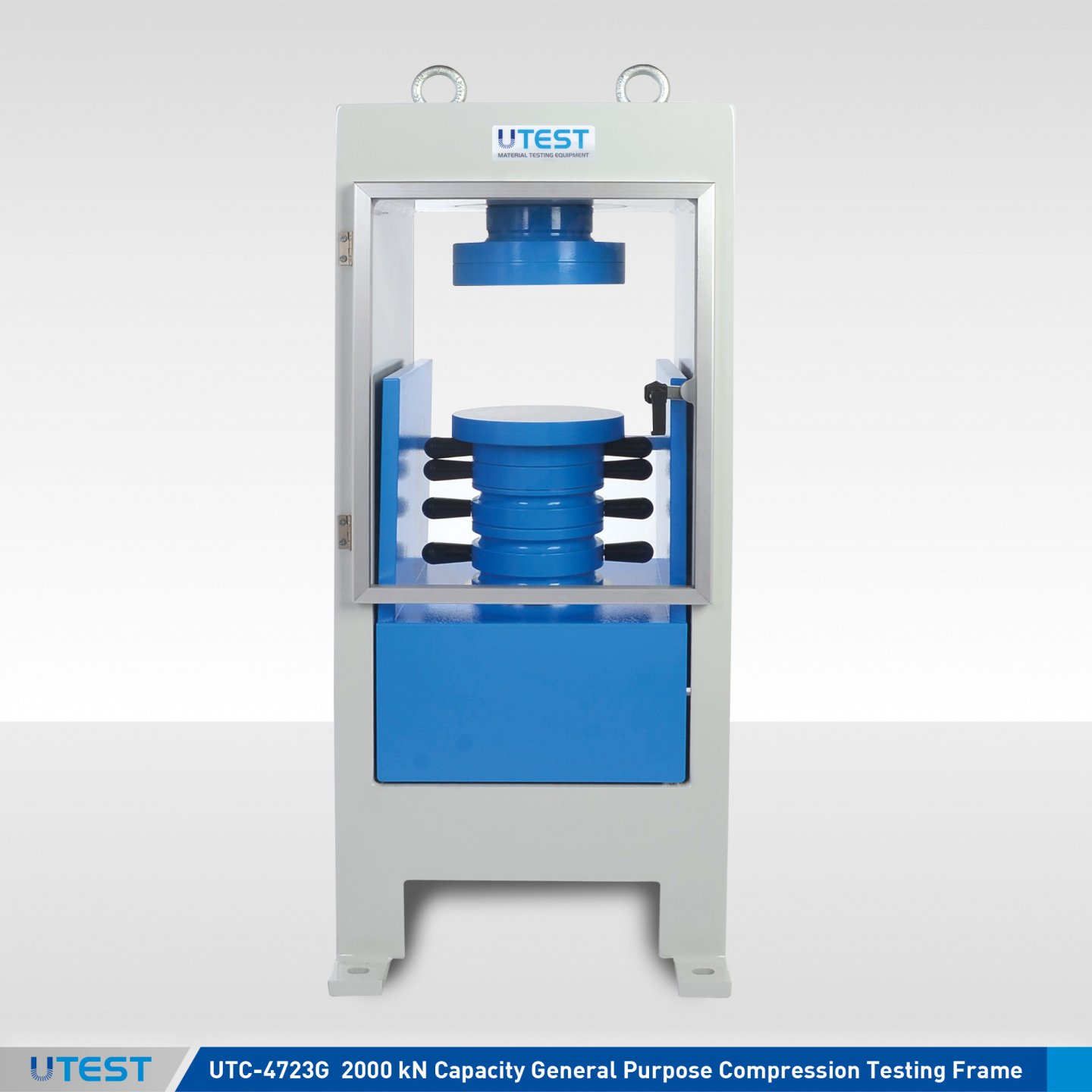

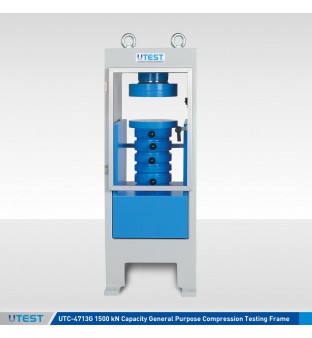

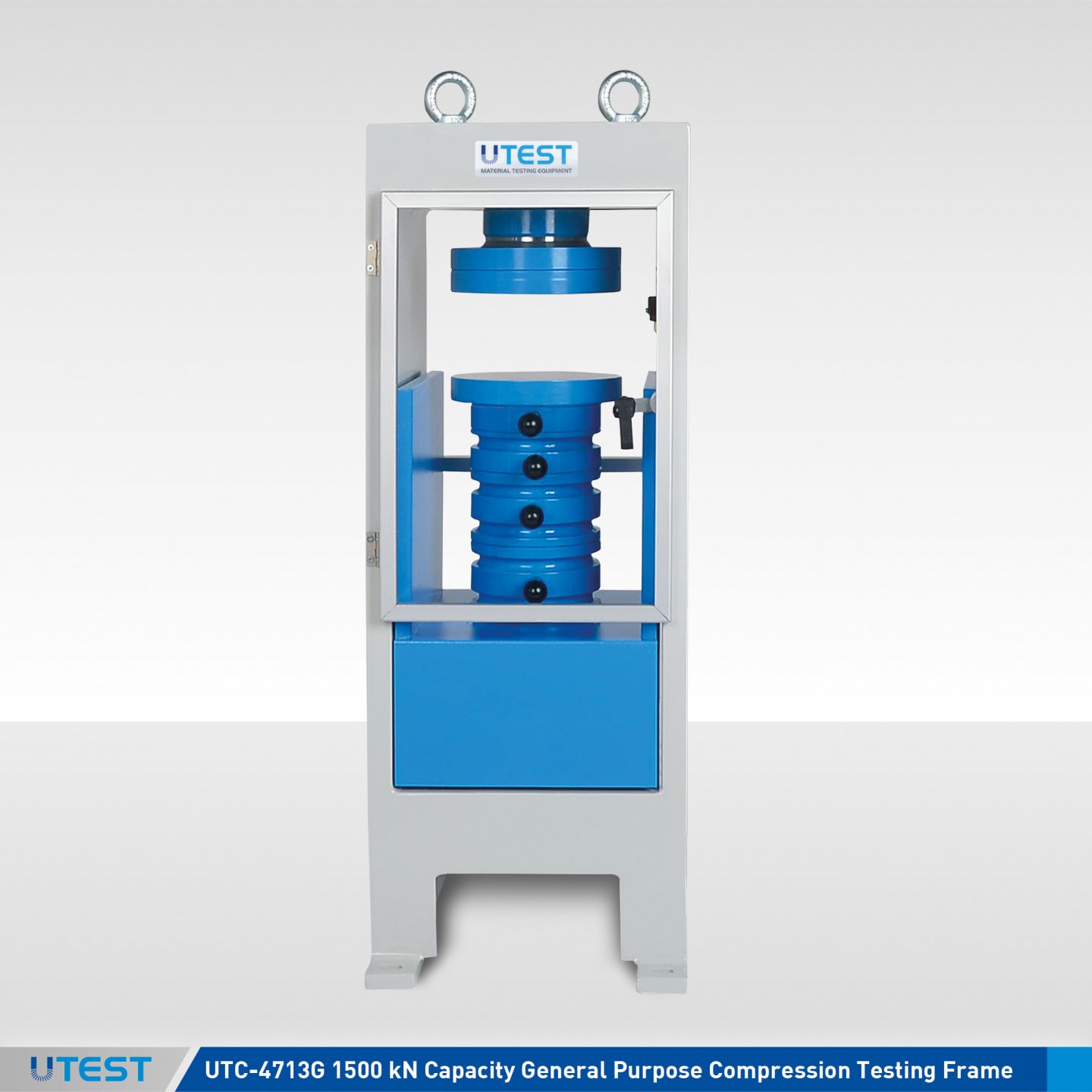

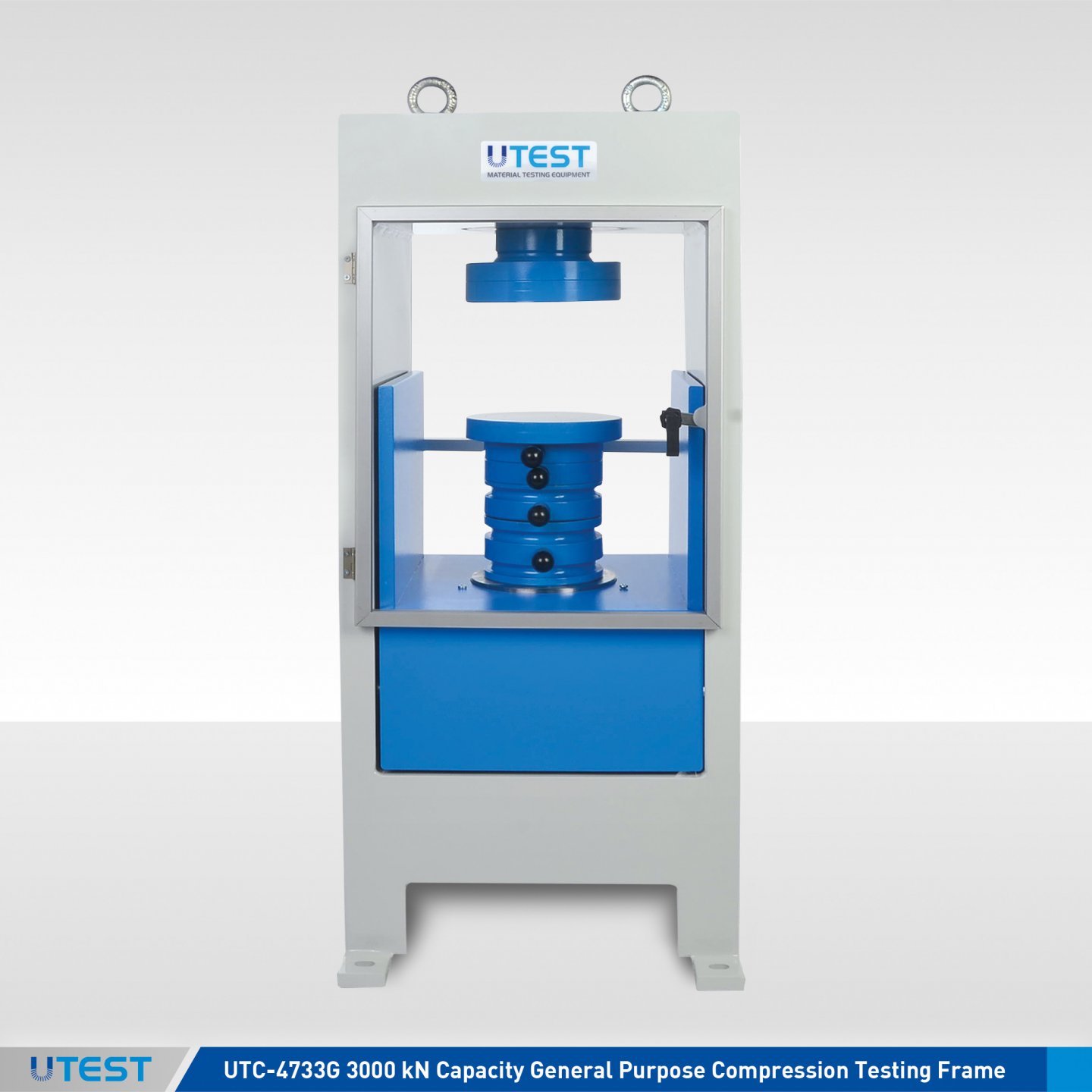

Models	UTC-4713G	UTC-4723G	UTC-4733G
Product Photo
Capacity	1500 kN	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 216 mm (8,5”)
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	55 HRC
Flatness Tolerance	0,05 mm
Piston Diameter	230 mm	250 mm	300 mm
Piston Stroke	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm (13,4")	340 mm (13,4")	340 mm (13,4")
Horizontal Clearance (B)	320 mm	360 mm	415 mm
For Cylinder Specimens Sizes (up to)	Ø160x320 mm
For Cubes Specimens Sizes (up to)	150 mm	200 mm	200 mm
Dimensions (wxlxh) (Axd*xF)	380x451x1104 mm	420x453x1144 mm	475x497x1204 mm
For Cubes Specimens Sizes (up to)	150 mm (**)	200 mm (**)	200 mm (**)
Weight	540 kg	630 kg	850 kg
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682

(d*) depth

(**) Limited by capacity of the frame

GENERAL PURPOSE COMPRESSION TESTING FRAMES WITH Ø 300mm LOADİNG PLATENS FOR CUBES AND CYLİNDERS
Models	UTC-4727G	UTC-4737G
Product Photo
Capacity	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	Ø 300 mm	Ø 310 mm
Upper Bearing Block, (With Spherically Seating Assembly) Dimensions (C)	Ø 300 mm
Surface Hardness of Bearing Blocks	55 HRC
Flatness Tolerance	0,05 mm
Piston Diameter	250 mm	300 mm
Piston Stroke	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	350 mm	350 mm
Horizontal Clearance (B)	360 mm	415 mm
For Cylinder Specimens Sizes (up to)	Ø160x320 mm	Ø160x320 mm
For Cubes Specimens Sizes (up to)	200 mm (**)	200 mm (**)
Dimensions (wxlxh) (Axd*xF)	420x453x1144 mm	475x497x1204 mm
Weight	665 kg	890 kg
Pedestal (Optional)	UTC-4682	UTC-4682
