GENERAL Purpose and EN 772-1 Compression Testing Frames For Masonary UnitsBlocks, Cubes and Cylinders

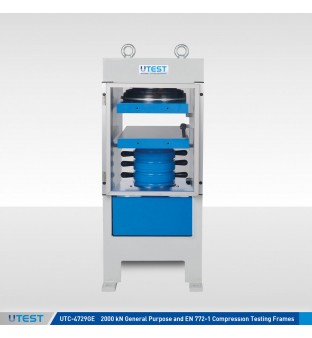

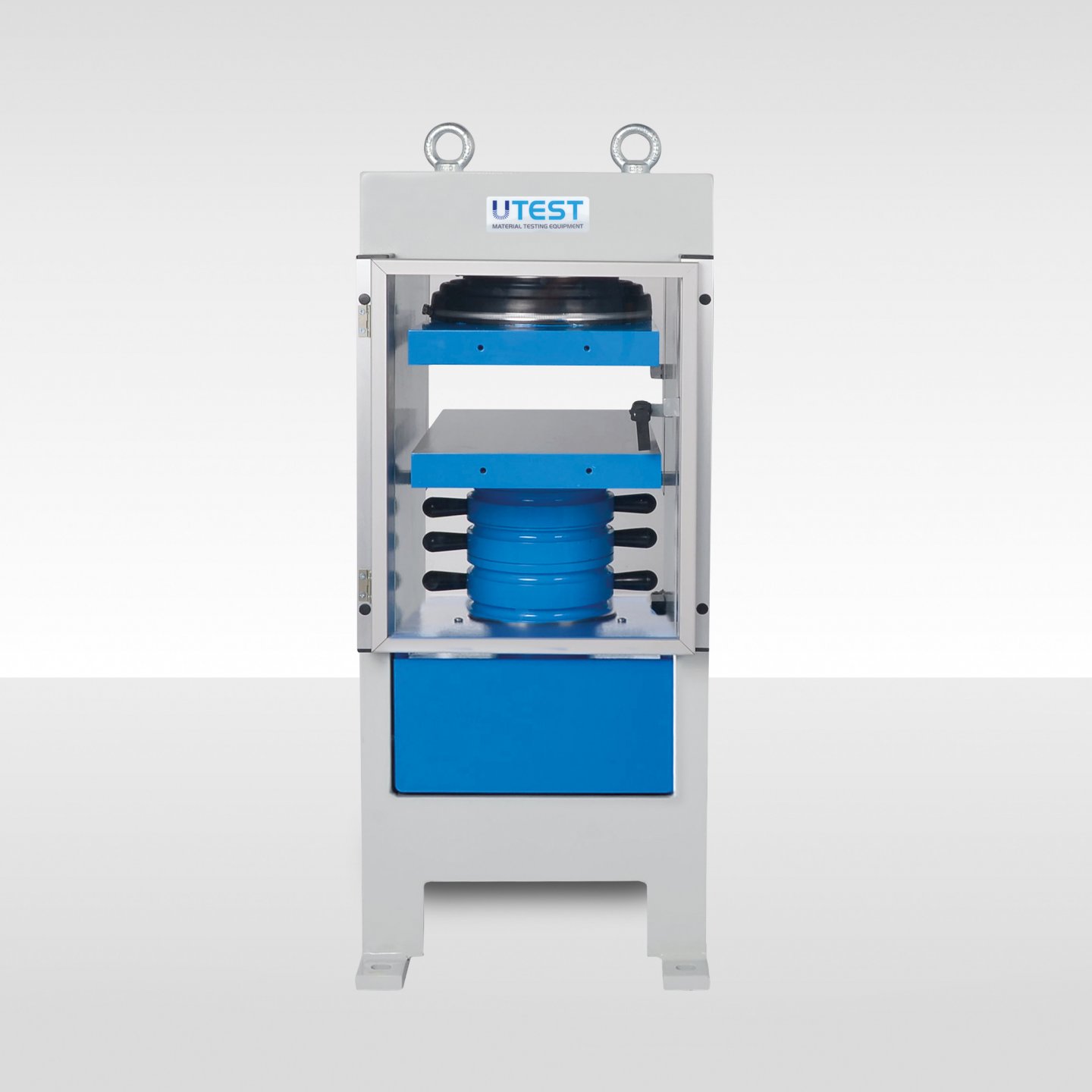

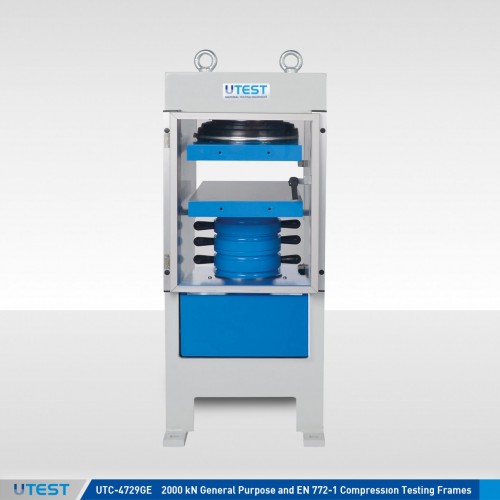

UTC-4714GE, UTC-4729GE nd UTC-4739GE, general purpose testing frames for masonary units/blocks cubes and cylinders consist of a rigid welded steel walls, a loading cylinder assembly and a lower and an upper (spherically-seated) loading platens by taking into account user requests for general purposes.

The frames provide the stability needed for accurate and repeatable test results over the years of operation.

Any hydraulic power pack with control and read out unit and a pressure transducer for measuring the loads, can be positioned on the right hand side of the load frame for easier accessibility, increased productivity and for safer operations.

The frames also have front and rear protective doors and limit swich for piston stroke for safety.

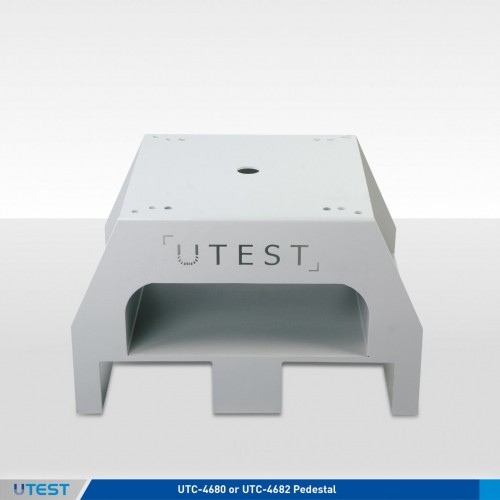

UTC-4680 and UTC-4682 Pedestals that are made of steel to facilitate the user’s placement of specimens in the frames for compression test should be ordered separately.

See the below tables for supplied items with the frame.

GENERAL PURPOSE AND EN 772-1 COMPRESSION TESTING FRAMES FOR MASONARY UNITS/BLOCKS, CUBES AND CYLINDERS
Models	UTC-4714GE	UTC-4729GE	UTC-4739GE
Product Photo
Capacity	1500 kN	2000 kN	3000 kN
Frame Type	Welded Steel	Welded Steel	Welded Steel
Lower Bearing Block, Dimensions (D)	220x410x50 mm	310x510x50 mm	310x510x50 mm
Surface Hardness of Bearing Blocks	55 HRC	55 HRC	55 HRC
Flatness Tolerance	230 mm	250 mm	300 mm
Piston Stroke	50 mm	50 mm	50 mm
Maximum Vertical Clearance Between Bearing Blocks (E)	340 mm	330 mm	330 mm
Horizontal Clearance (B)	320 mm	360 mm	415 mm
Dimensions (wxlxh) (Axd*xF)	380x451x1104 mm	420x600x1144 mm	475x600x1204 mm
Weight	620 kg	780 kg mm	1000 kg
Pedestal (Optional)	UTC-4680	UTC-4682	UTC-4682
Specimens Sizes (**)	up to 200x400 mm asonary units	blocks up to 300x500 mm masonary units/blocks
	up to Ø160x320 mm cylinders
	200 mm cubes

(d*) depth

(**) Limited by capacity of the frame

The Frame for blocks, cubes and cylinders is supplied complete with;
