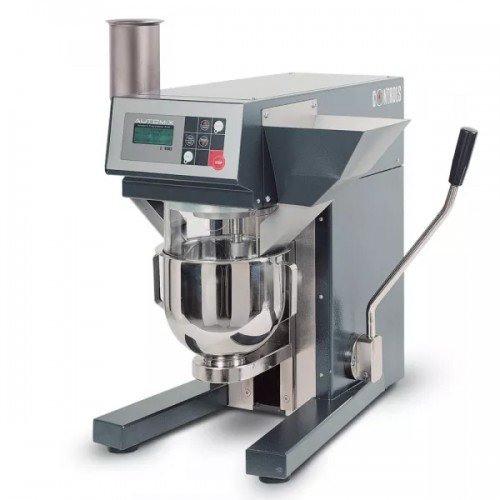

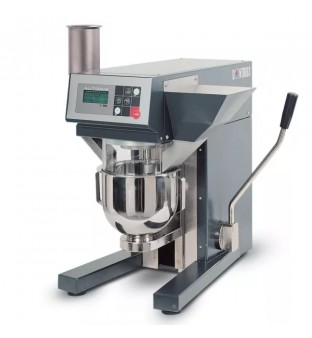

This mixer has been developed with a high level of quality and reliability. Strictly conforming to the standards whilst, at the same time, meeting the demand for a wider scope in testing other materials for research applications. An important feature of this mixer is the ability to program special mixing cycles.
Caracterìsticas Principales
Automatic testing cycles
Automatic sand dispenser and additional dispenser for manual addition of admixtures or water during the mixing cycle
4 programmable mixing cycles conforming to EN and DIN standards
10 mixing cycle programmable by the operator
Acoustic signal synchronized with cycle steps
Ergonomic and safe desig
Especificaciones Tecnicas
Robust and stable frame

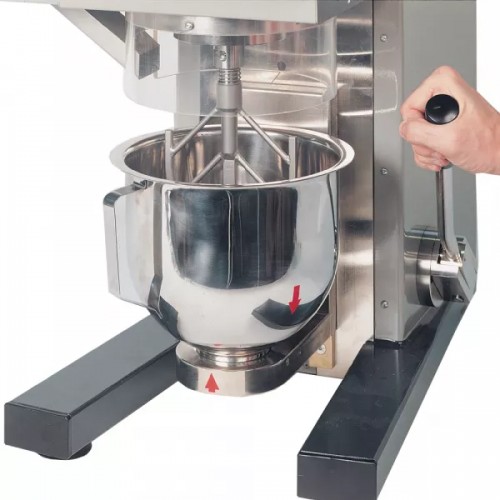

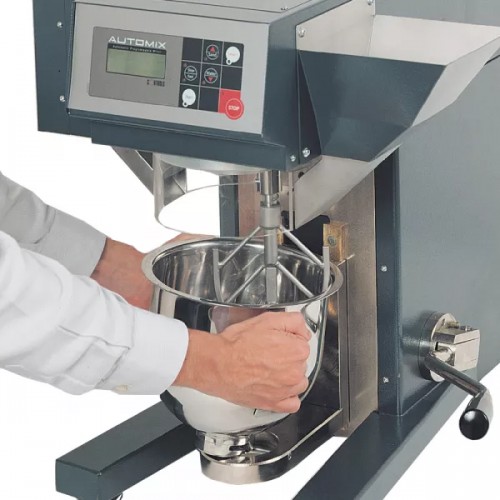

Easy and fast bowl mounting or removal
Distance between beater and bowl: 3±1 mm during all cycle
Stainless beater and bowl
Bowl capacity: 5 liters
Sand dispenser electronically controlled
4 programmable mixing cycles conforming to EN 196-1, EN 196-3, DIN 1164-5, DIN 1164-7
1 mixing cycle programmable by the operator

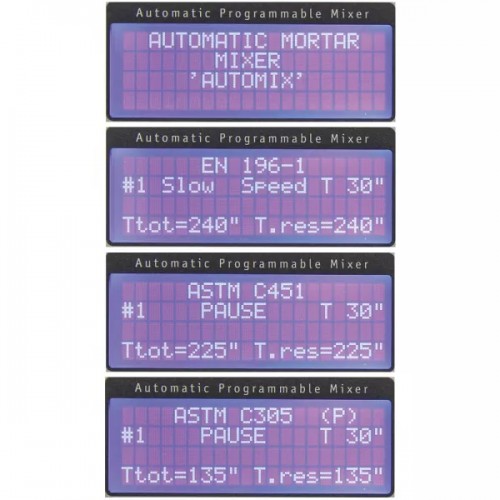

Alphanumeric display 4x20 characters
2 mixing speeds: 140±5 and 285±10 r.p.m.
Sincronised acoustic signals with test cycles
Safety features: Microswitch to avoid operation when the bowl is removed, Transparent safety bowl cover
Dimensions (lxwxh): 600x450x600 mm
Weight approx.: 58 kg
| Виробник |
| Виробник |
Controls |
| Технічні характеристики |
| Вага (прибл.) |
58 кг |
| Ємність |
5 літрів |
| Відстань між вінчиком і чашею |
3±1 мм протягом усього циклу |
| Електроживлення |
220-230В, 50-60Гц, 1фаза |
| Габаритні розміри |
600x450x600 мм |
65-L0006/6 - Steel wisk for AUTOMIX mixer

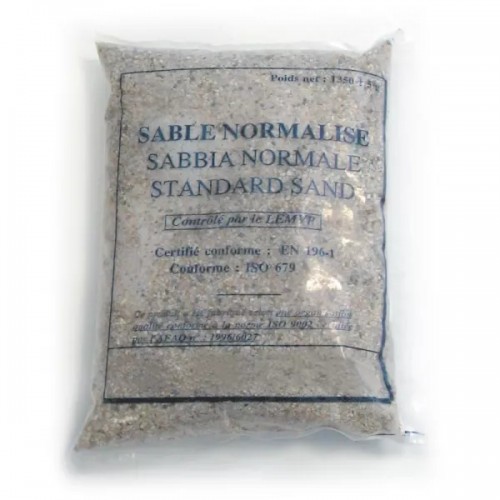

65-L0007/1 - Reference sand to EN 196. 32 bags, tot. 43,20 Kg.
65-L0006/2 - Stainless steel bowl for AUTOMIX mixer, 5 lt cap. conforming to EN 196.
65-L0006/4 - Stainless steel beater for AUTOMIX mixer conforming to EN 196
