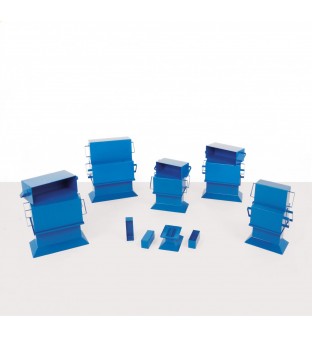

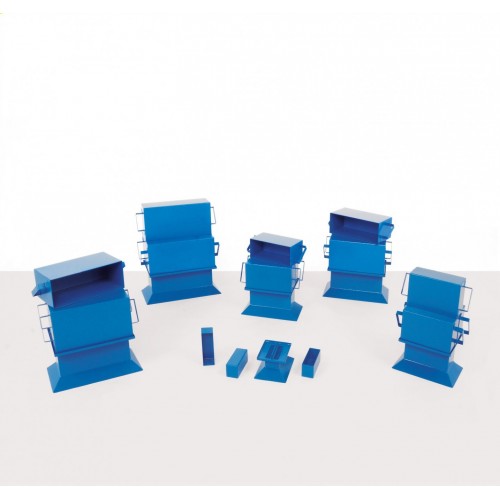

Riffle boxes are used for dividing aggregates into 2 equal homogenous quantity for testing. The Riffle Box is electrostatically painted and manufactured to meet the relevant International standard both in the slot width and number of slots.
The Riffle Boxes are supplied complete with containers with Handles (3 pcs).
Technical specification
| Product code | Aperture | Number of Slots | Weight | Dimensions |
| UTA-0338 | 5 mm | 16 | 12 kg | 100x130x120 mm |
| UTA-0340 | 7 mm | 12 | 14 kg | 110x140x140 mm |
| UTA-0341 | 13 mm | 12 | 33 kg | 190x260x330 mm |
| UTA-0342 | 15 mm | 12 | 33 kg | 190x280x330 mm |
| UTA-0343 | 19 mm | 10 | 36 kg | 220x280x360 mm |
| UTA-0344 | 25 mm | 10 | 39 kg | 220x340x390 mm |
| UTA-0345 | 30 mm | 10 | 40 kg | 220x390x400 mm |
| UTA-0346 | 38 mm | 8 | 56 kg | 320x410x560 mm |
| UTA-0347 | 45 mm | 8 | 57 kg | 410x480x570 mm |
| UTA-0348 | 50 mm | 8 | 60 kg | 320x550x600 mm |
| UTA-0349 | 64 mm | 8 | 60 kg | 350x640x600 mm |
| UTA-0350 | 75 mm | 8 | 58 kg | 360x700x580 mm |
| Виробник | |
| Виробник | Utest |
