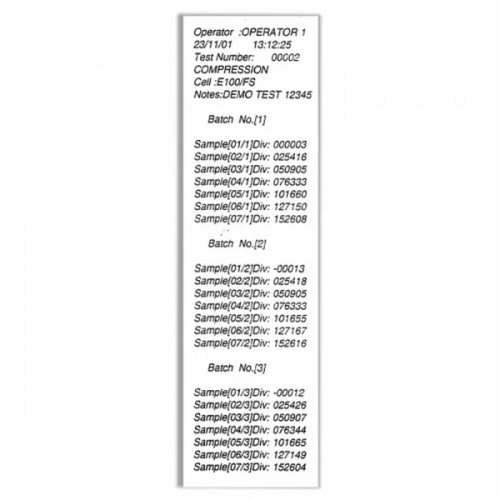

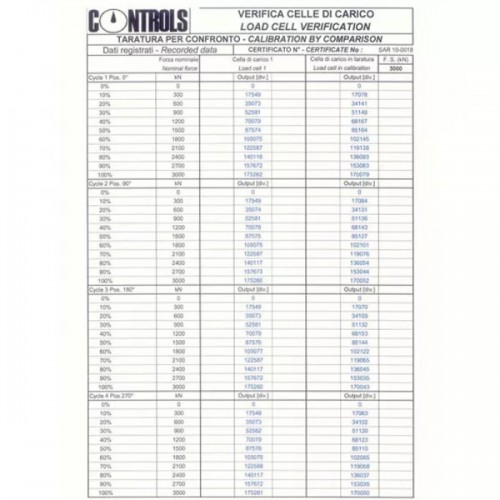

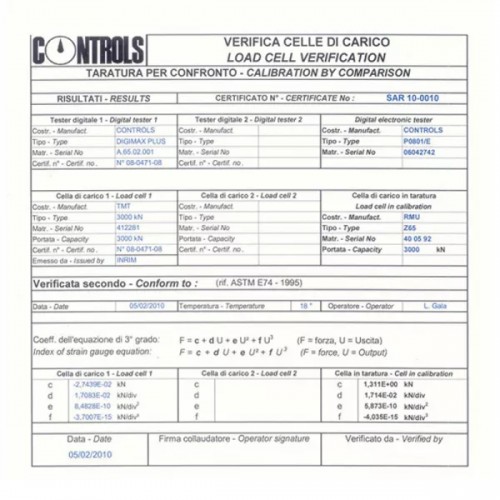

The system, connected to any strain gauge load cell, provides data for the force verification of the testing machine. Data can be printed by a standard serial printer as, for example, our model 82-P0172 with serial cable 82-P0172/1 (see accessories), or unloaded to PC for processing and, by the relevant MS Excel template 82-P0804/E4 (see accessories), for producing the test certificate conforming to the standard in use as, for example, EN 12390-4 or ASTM C39 for concrete compression testers.

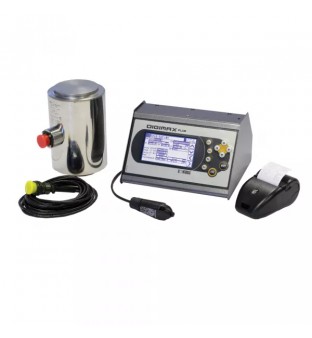

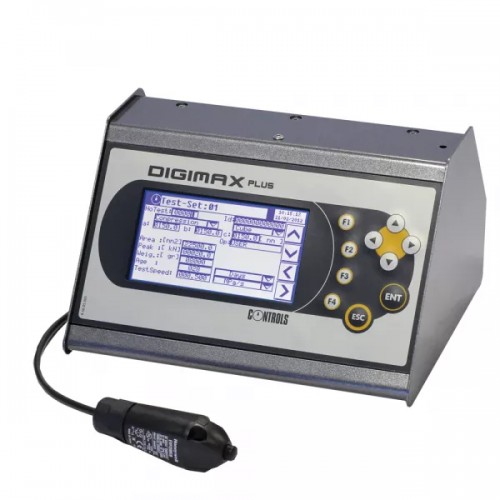

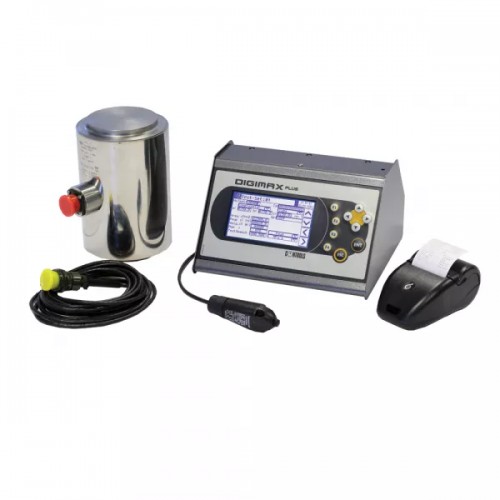

The Digimax Plus, connected to one of our load cells 82-E0100/30 to 82-E01000/500 can be supplied complete with Official or Traceable calibration certificate. See ordering information. Each cell has to be calibrated separately and the certificate refer to one cell only
Main features
High resolution: 256,000 points ( less than 0.05% of full scale)

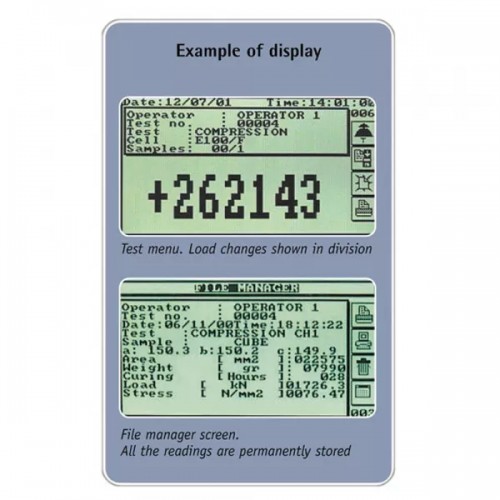

Large graphic display: 240x128 pixel
Language selection: English, French, Spanish, German and Italian
Large permanent memory: up to 960 readings
Two RS 232 serial ports for PC and printer
Remote control
MS EXCEL Template available for producing calibration certificates conforming to EN/ASTM Standards
Technical specifications
Microprocessor based
Clock calendar chip
Large permanent memory to store data and test results
Two RS 232 serial port for PC and printer
Analogic channel for strain gauge load cells/transducers, 256,000 points resolution
Graphic display 240x128 pixel
Dimensions: 250x220x150 mm
Weight approx.: 2 kg
| Виробник |
| Виробник |
Controls |
| Технічні характеристики |
| Вага (прибл.) |
2 кг |
| Пам'ять |
Велика постійна пам'ять для зберігання даних і результатів тестів |
| Електроживлення |
230В, 50-60 Гц, 1 фаза |
| Графічний дисплей |
240х128 пікселів |
| Габаритні розміри |
250x220x150 мм |

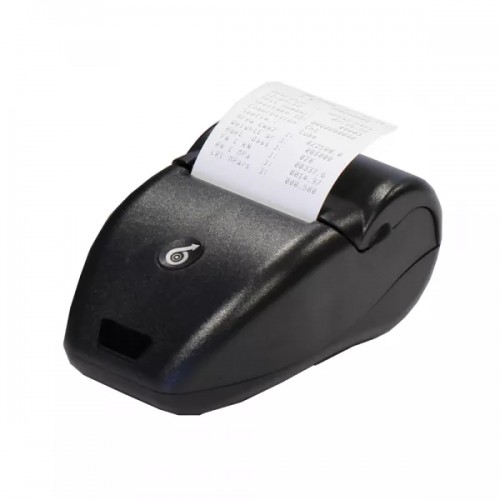

82-P0172/M - 24 columns serial printer. 110-230V, 50-60Hz, 1ph
82-Q0800/3 - Serial cable RS232 and RS232-USB adapter for PC connection
82-E0100/ACC4 - Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >1000 to 5000 kN.
82-E0100/TRC - calibration certificate for the load cell connected to suitable digital tester for force verification. Compatible with 5 kN up to 5000 kN capacity load cells.
82-P0804/E4 - Force calibration verification MS Excel Spread sheet.
82-E0100/ACC2 - Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >10 to 600 kN
82-E0100/ACC3 - Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >600 to 1000 kN.
82-P0800/C - Hard plastic carrying case for 82-P0801/E tester and 82-P0171 serial printer
82-P0172/1 - Serial cable for printer connection.
82-E0100/ACC1 -Official ACCREDIA (EAL) calibration certificate for the load cell connected to suitable digital tester for force verification. Calibration to EN ISO 376, 10 points, 4 cycles. (increasing forces only). Suitable for load cells from >1 to 10 kN
