DATALOG 8 is a stand alone data logger for general purpose acquisition, processing and data storage for laboratory and site applications.

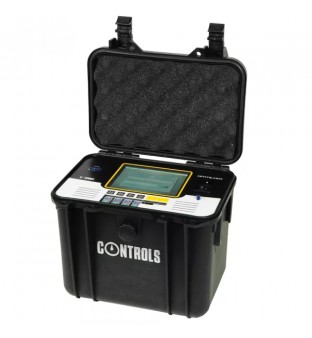

Differently from the laboratory version, this model is housed inside a rigid carrying case with a long-life rechargeable battery. It is particularly suitable for field applications where mains power supply is not available.
DATALOG 8 features a wide 6” touch screen colour graphic display and a separate display for battery status. The unit records and monitors in real time the measurements requested by different tests, for example:
Plate bearing test apparatus (electronic versions)
Rock shear box apparatus (digital version model)
In-situ determination of stress, deformability and resistance of masonry walls with flat jacks and many other tests
Main features

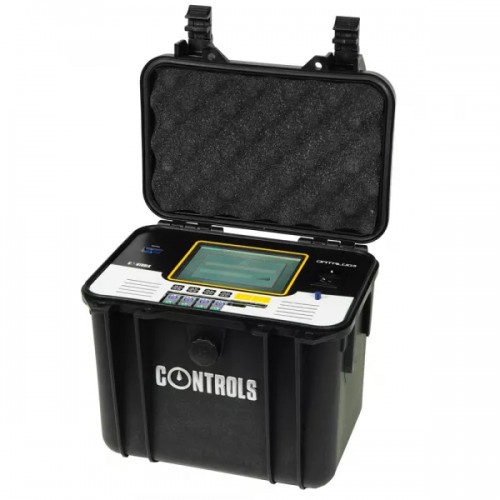

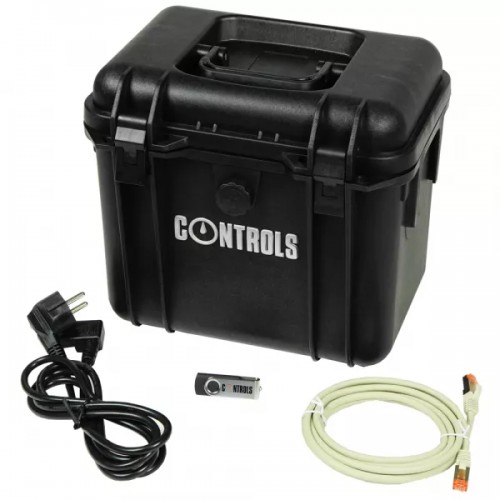

In-built battery operated with rigid carrying case suitable for use on field

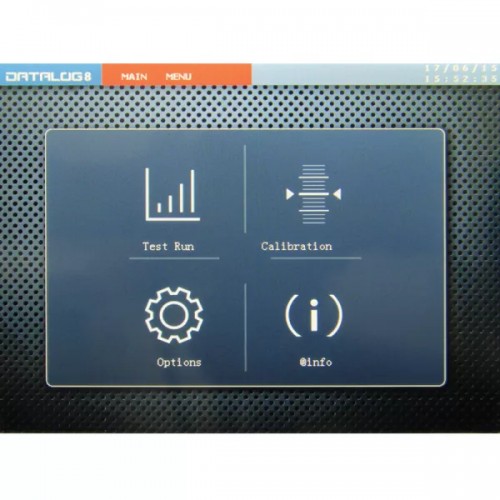

6” touch screen colour graphic display
Separate display for battery status
8 independent input channels

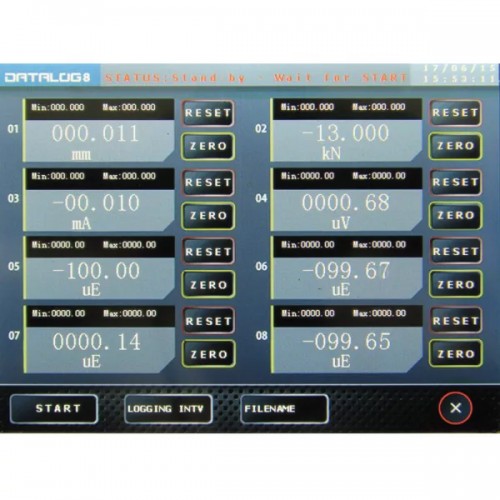

Display of readings and graphs in real time

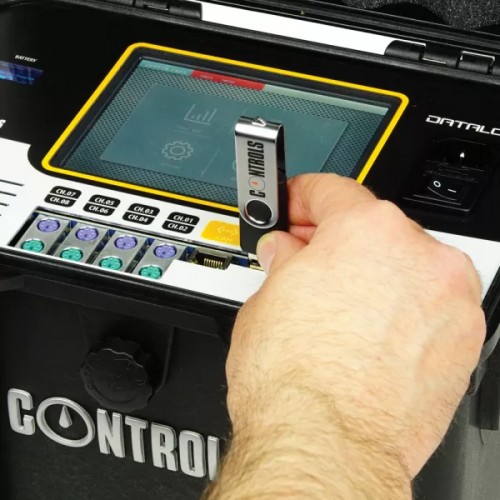

Unlimited storage capacity with USB pen drive
Contemporaneous data sampling of all channels in accordance to the programmable logging mode
| Виробник |
| Виробник |
Controls |
| Технічні характеристики |
| Електроживлення |
220 -100 В, 50-60 Гц, 1 фаза |
82-P0398 -
Compensation device for up to 4 Wheatstone bridgeswith 1/4 or 1/2 bridge setup
82-P9008/ELT -
Set of four cables for connecting load cells, pressure transducers, strain gauges, LDT / LVDT / potentiometric type displacement transducers to DATALOG 8 (82-P9008) and GEODATALOG 8 ( 30-WF6008)
82-P9008/SOF -
DATACOMM 2 data acquisition software and LAN cablefor PC connection of DATALOG 8 (82-P9008, P9008/F) - Up to 8 datalogger (total 64 channels) can be connected to a single PC creating a modular network (LAN hub is required)
29-WF4645/COMP -
High specification desktop PC with LCD monitor.Operating system MS Windows preinstalled and 8 port LAN HUB converter.
