Concrete mixers (Controls)

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards EN 12390-2

Manufacturer Controls

Всі характеристики

55-C0196/2 - Drum type concrete mixer, 130 l pan cap., 96 l mixing cap.

55-C0199/9A - Pan type mixer. Pan capacity 130l, mixing capacity90l. Power 2 kW.

55-C0199/9AY - Pan type mixer. Pan capacity 130l, mixing capacity90l. Power 2 kW.

55-C0199/20 - Pan type mixer. Pan capacity 300l, mixing capacity200l. Power 5,5 kW.

Дивитися повний опис

Збільшити

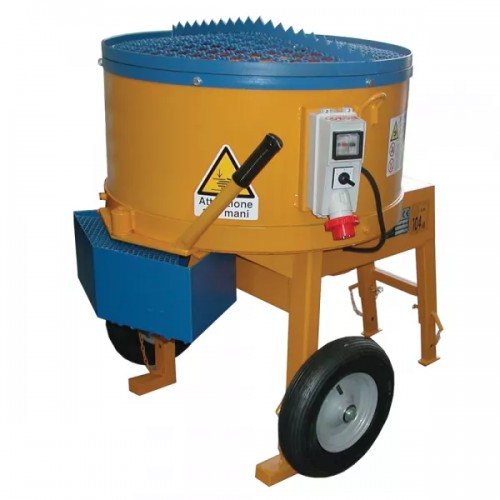

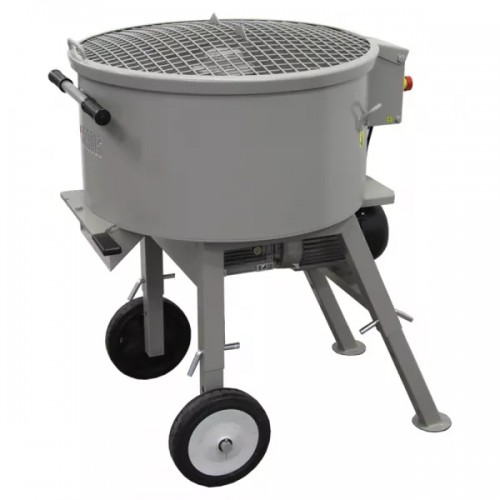

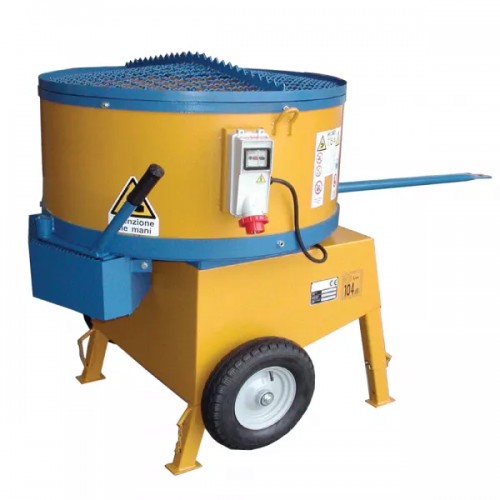

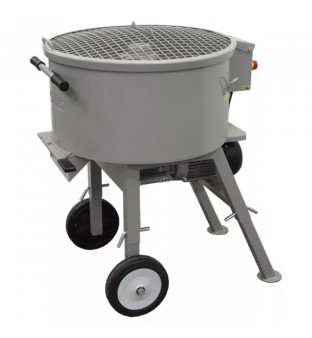

Pan type models have been selected for laboratory use, to prepare concrete specimens and samples. They assure the best uniformity and efficient mixing. 55-C0199/9A model is supplied complete with additional interchangeable mixing paddle, particularly suitable for low slump concrete, wheels and drawbar. 55-C0199/11 and 55-C0199/20 models can be completed with optional wheels and drawbar. See accessories. The drum type model 55-C0196/2 is more suitable for field use to prepare low-medium strength specimens.

Main Features Pan type models 55-C0199/9A, 55-C0199/11, 55-C0199/20

Vertical axle forced mixers

Gearbox in oil bath

Ease in discharge operation, adjustable in height

Separate 4” wheel and drawbar available (as optional for 55-C0199/11 and 55-C0199/20 models only)

PAN TYPE MODELS

Model 55 -	C0199/9A, C0199/9AY, C0199/9AZ	C0199/11, C0199/11Z	C0199/20, C0199/20Z
Mixing cap. (l)	90	110-120	160-200
Power (kW)	2	3	5.5
Overall dimensions (lxdxh) mm	850x800x1250	1100x850x1200	1250x1200x1300
Weight approx. (kg)	100	260	340

DRUM TYPE MODEL

Model	55-C0196/2
Pan cap. (l)	130
Mixing cap. (l)	96
Power (W)	370
Overall dimensions (lxdxh) cm	120x70x130
Weight approx. (kg)	60
