Характеристики
Standards -
Max. blade diameter 450 mm
Power 3 kW
Overall dimensions 1300x700x700 mm
Weight (approx.) 92 kg

Manufacturer Conrtols

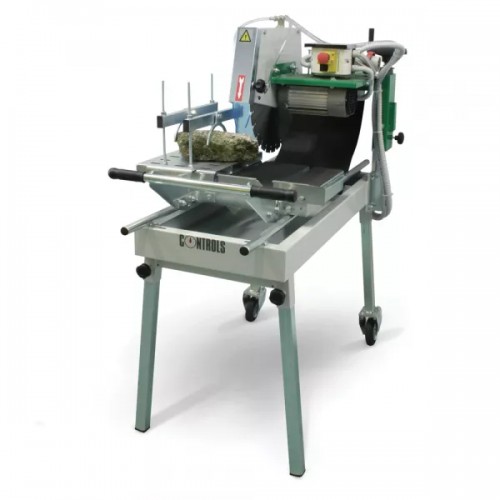

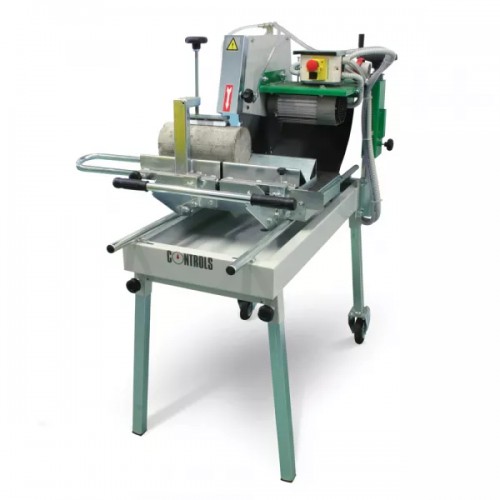

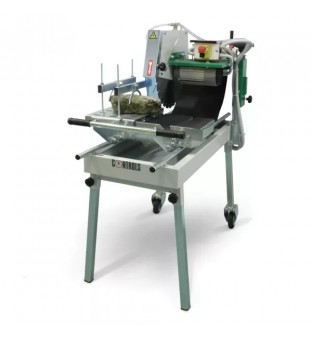

55-C0210/D - Concrete, rock and masonry saw. 380V/50-60Hz/3ph.

Дивитися повний опис

This universal saw, completed with the suitable accessory, can be used to cut concrete, asphalt and rock cores, and irregular rock samples in order to obtain geometrically defined samples. It can be fit with 300 to 450 mm dia. blades. The head is adjustable in height. The tilting motor head permit cuts up to 45° inclination. The tank and the trolley are zinc plated to avoid corrosion. Complete with water pump for cooling the blade and double filtering system. Cutting blade, and accessories to cut cores, asphalt, rock and other buiding materials, not included. See accessories.

  • Max. cutting height: 115 mm with 350 mm dia. blade and 165 mm with 450 mm dia. blade
  • Max. blade diameter: 450 mm
  • Power: 3 kW
  • Overall dimensions (lxdxh): 1300x700x700 mm
  • Weight approx.: 92 kg
  • Виробник
    Виробник Controls

    32-C0210/6 - Locking clamp device for irregular pieces

    32-C0211/4 - Diamond blade 350 mm dia for hard rock

    32-C0211/5 - Diamond blade 450 mm dia for hard rock

    55-C0210/2 - Diamond blade with sectors, dia. 450 mm suitable for asphalt specimens

    55-C0210/5 - V-shaped support for cylinders and cores up to 160 mm dia

    55-C0211/1 - Diamond blade 350 mm dia
