Compression Devices for Cement and Mortars

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards ASTM C109, ASTM C349, EN 196

Weight (approx.) 8 kg

Manufacturer Conrtols

Всі характеристики

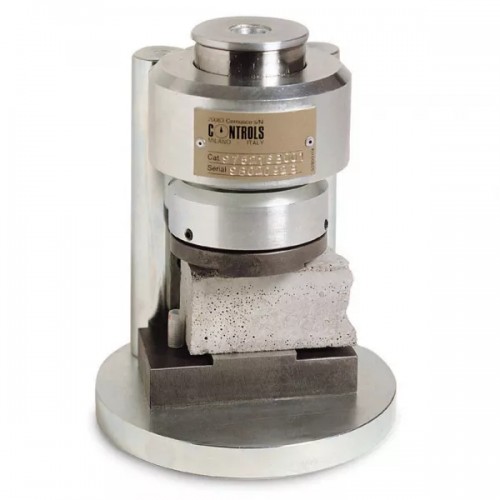

50-C9030 - Compression device to test portions of 40 x 40 x 160 mm mortar prism broken in flexure to EN 196-1. Total height 195mm.

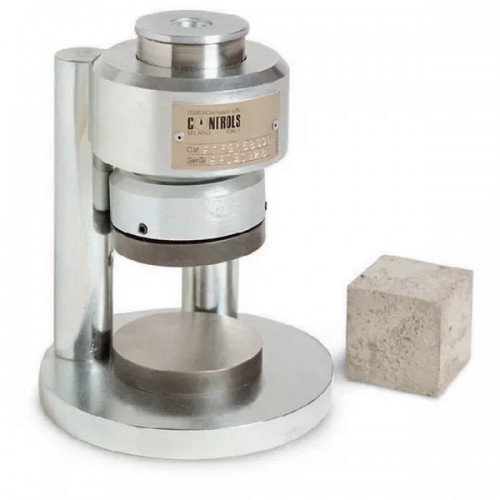

50-C9032 - Compression device to test 50 mm (2") mortar cubes. Total height 195mm

50-C9030/C - Compression device to test portions of 40x40x160 prisms broken in flexure to EN 196-1. Total height 195mm. Supplied complete with hardness certificate.

50-C9032/C - Compression device to test 50 mm and 2” mortar cubes to ASTM C109 Total height 195 mm. Supplied complete with hardness certificate.

50-C9030/A - Compression device to test portions of 40x40x160mm mortar prism previously broken in flexure to ASTM C349. Compression platens 40x50.8 mm.

50-C9031 - Compression device to test portions of 40x40x160 mm mortar prisms broken in flexure. Compression platens 40x62.5 mm.

Дивитися повний опис

Збільшити

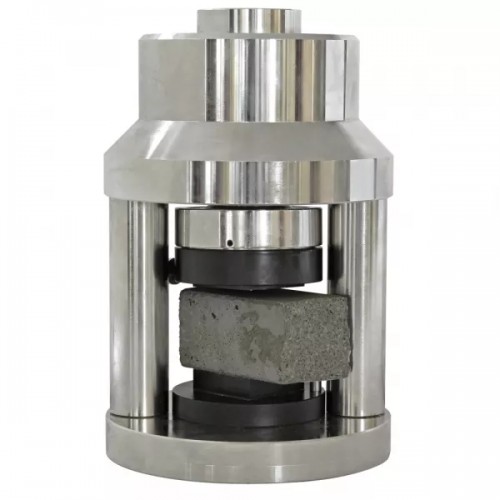

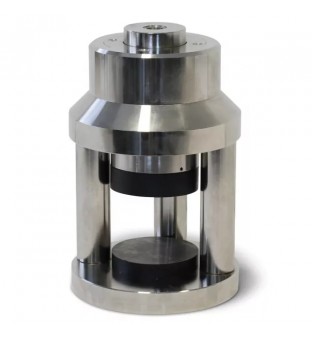

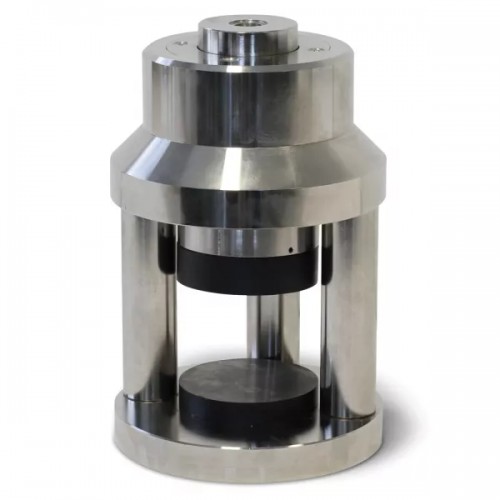

Robust frame fitted with an upper platen with spherical seat that moves vertically sustained by a spring. The apparatus can be placed and centered directly on the lower machine platen. The 50-C9030 and 50-C9032/H, conforming to EN 196 are designed to test portions of 40x40x160 prisms broken in flexure, while the 50-C9032, conforming to ASTM C109, fitted with compression platens 75 mm dia., and a vertical daylight of 53 mm is used to test 50mm/2” cubes and other little samples as, for example, microcores. The model 50-C9031 is similar to C9030 but with compression platens 40 x 62.5 mm instead of 40 x 40 mm.

The total height of both 50-C9030, 50-C9031 and 50-C9032 apparatus is 195 mm while it's 225mm for model 50-C9030/H and 50-C9032/H.

Vertical clearance of the compression machine has to be adjusted using suitable distance pieces accordingly. See accessories
