Ideal for curing cement specimens in commercial and site laboratories, very practical and easy to use.

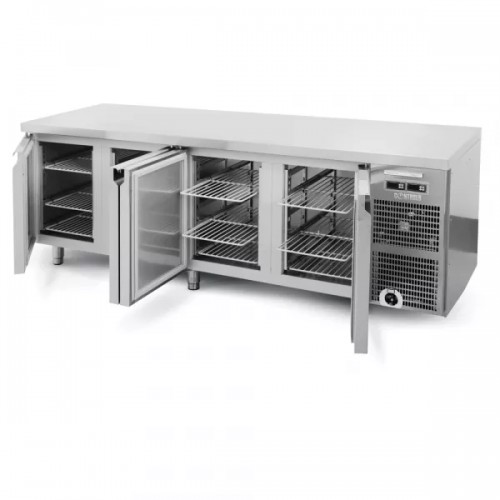

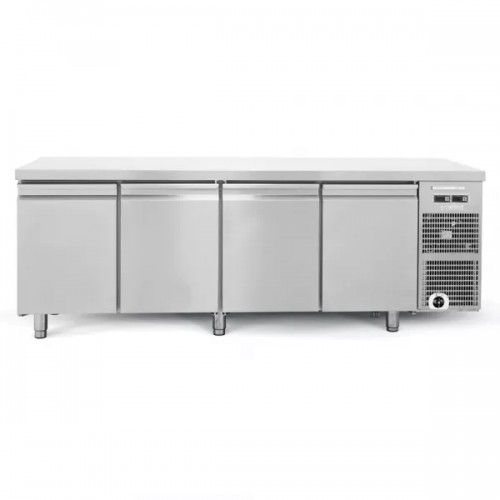

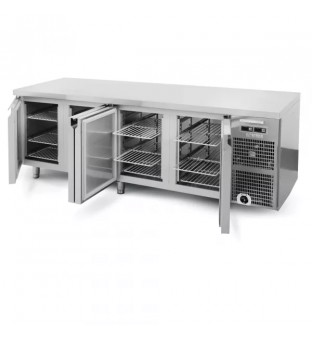

The cabinet is entirely made of “sandwich” stainless steel panels, isolated with polyurethane foam. The bench can be conveniently used as a working table being 2240 mm long, 700 mm wide and 860 mm high.

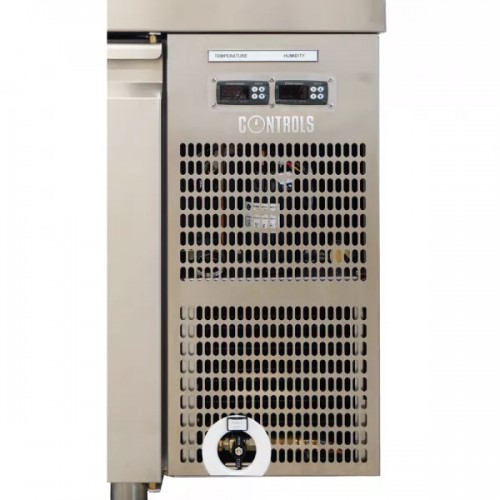

Cooling system, temperature and humidity control are integrated in the structure and housed on the right cabinet. The system is designed to maintain the temperature within the operating range between +18 and +25°C with a relative humidity 95±5%.
Each one of the 4 cells can be fitted with max 5 sliding grids which can support the moulds with specimens and a large number of cement prisms. Using a simple plastic pan (see accessory) is also possible to cure specimen in water. It can also be used for curing concrete cubes and other mortar specimens. The cabinet has to be connected to the water mains.
The cabinet is fully conforming to the European directive 2006/95/CEE (and subsequent modification) and 2004/108/CEE (electromagnetic compatibility).
Caracterìsticas Principales
Specifically made for curing cement, mortar, lime and gypsum specimens
Large stainless steel bench, 2240 x 700 mm, which can be conveniently used as working table
Internal curing temperature adjustable from 18 to 25°C
Temperature accuracy ±1°C
Internal humidity range 95 ± 5 % RH
Also suitable for water curing using a suitable can
Especificaciones Tecnicas
Capacity: 400 liters approx.
Power rating: total 310 W
Temperature control: Electronic system with digital display and keyboard to set the curing temperature
Cooling system: refrigeration unit with hermetic piston compressor, loaded with HFC ecological refrigerant fluid
Humidity saturation: obtained by a water evaporation system (no water nebuliser) consisting of a water collecting bath, immersed re-circulating pump and hydraulic circuit
HMI with 128x64 pixels backlight display for humidity and temperature values display and datalogging of all the testing variables (with optional accessory)
Internal temperature range min/max: 18/25°C
Temperature accuracy: ±1°C
Ambient temperature min/max: 18/28°C
Internal humidity range: 95% ± 5% RH
Inlet water temperature min/max: 10/36°C and hardness lower than 20 °f (in case of harder water we suggest the filtration kit 65-L0014/HW). The cabinet has to be connected to the water mains.
Shelf plan dimensions: 310mm x 530mm, (w x d)
Total internal height of the cabinet: approx 530mm
Stainless steel guides allowing shelf positioning every 70mm
Max weight on the shelf: 40kg
Max number of shelves per each cell: 5 (2 included) with 70mm spacing between them
Number of shelves included: 1 per each cell (4 in total)
Overall dimensions (l x w x h): 2400 x 700 x 860 mm
Weight approx.: 210 kg
| Виробник |
| Виробник |
Controls |
| Технічні характеристики |
| Вага (прибл.) |
210 кг |
| Розмір полиць |
310 мм x 530 мм |
| Ємність |
приблизно 400 літрів |
| Діапазон внутрішньої вологості |
95% ± 5% RH |
| Кількість полиць в комплекті |
1 на комірку (всього 4) |
| Максимальна вага на полиці |
40 кг |
| Розміри полиці в плані |
310 мм x 530 мм |
| Температура навколишнього середовища |
мін/макс 18/28°C |
| Точність температури |
±1°C |
| Електроживлення |
230В, 50-60Гц, 1ф |
| Номінальна потужність |
310 Вт |
| Внутрішні розміри |
шафи: приблизно 530 мм |
| Габаритні розміри |
2400 x 700 x 860 мм |
65-L0014/C1 - Additional plastic coated shelf for bench type curing cabinet series L0014
65-L0014/REC - Upgrade of the Cabinet for storing of humidity and temperature values (one every 10 minutes) and download of data via Webserver (max storage of 12 months then data will be overwritten). The upgrade shall ba factory installed &n

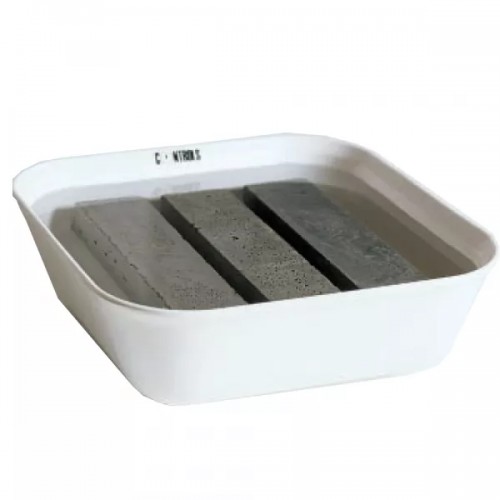

65-D1326 - Plastic pan 220x220x70 mm for water curing of three 40x40x160 mm cement specimens.
65-L0014/HW - Filtration kit. Suggested in case mains water hardness is higher than 20 °f.
