Форми та аксесуари CBR (UTEST)

Обрати іншу модель Копіювати посилання

Увеличить

Характеристики

Standards EN 13286-47

Manufacturer UTEST

Всі характеристики

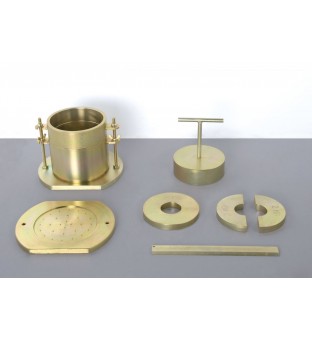

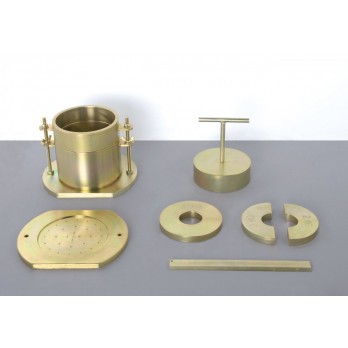

UTS-0610E – B type Modified Proctor/CBR Mould EN, int dia.: 150 mm, int height: 120 mm, supplied complete with extension collar and solid base plate

UTS-0613E – B type Modified Split Proctor/CBR Mould EN, int .dia.: 150 mm, int. height: 120 mm, supplied complete with extension collar and solid base plate

Дивитися повний опис

Збільшити

Each accessories listed below should be ordered separately.

Technical specifications

Product Code	Description	Dimensions	Weight (approx.)
UTS-0610E	B type Modified Proctor/CBR Mould EN, int dia.: 150 mm, int height: 120 mm, supplied complete with extension collar and solid base plate	200x240x180 mm	8.9 kg
UTS-0613E	B type Modified Split Proctor/CBR Mould EN, int .dia.: 150 mm, int. height: 120 mm, supplied complete with extension collar and solid base plate	200x240x180 mm	9.1 kg

Виробник
Виробник	UTEST

UTS-0705E – Spacer Disc with T Handle, EN

UTS-0708E.B – Annular Surcharge Weight BS/EN

UTS-0709E.B – Split Surcharge Weight BS/EN

UTS-0713E – CBR Perforated Base Plate EN

UTS-0724 – Straightedge

UTS-0727 – Filter papers for CBR test, No:1 x 150 mm dia

UTS-0730 – Filter screen, 144 mm dia. 150 μm mesh

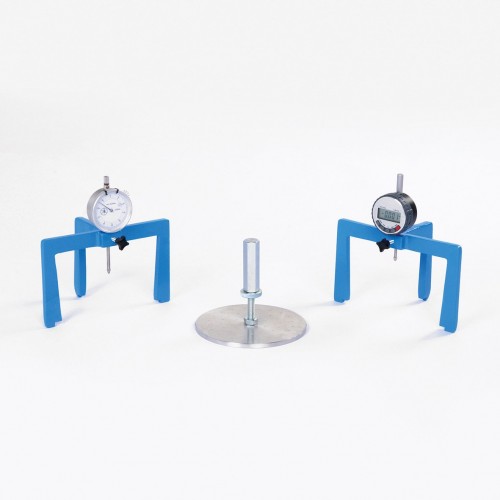

UTS-0790E.B - Adjustable Stem and Perforated Aluminum Plate for CBR Swelling Test, EN, BS

UTS-0792E - Tripod for CBR Swelling Test, EN, for UTS-0610E

UTGM-0120 - Analog Gauge 30 mm travel x 0.01 mm division

UTGM-0148 - Digital Dial Gauge 25x0,01 mm, LCD Display Data Output

UTGM-0152 - Digital Dial Gauge 12,7x0,001 mm, LCD Display Data Output

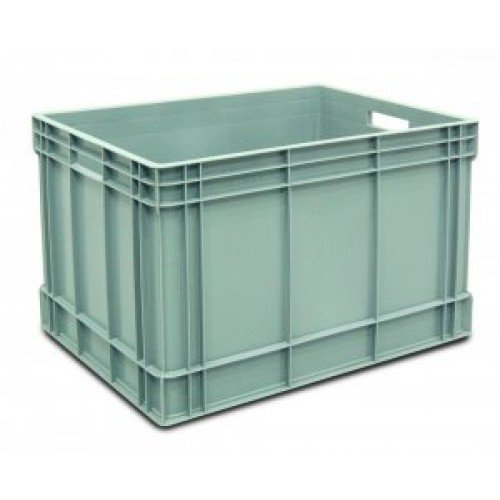

UTS-0794 - CBR Soaking Tank (6 pcs. CBR Mould Capacity)
