To determine the bearing capacity and deflection of subgrade and subbase of roads.

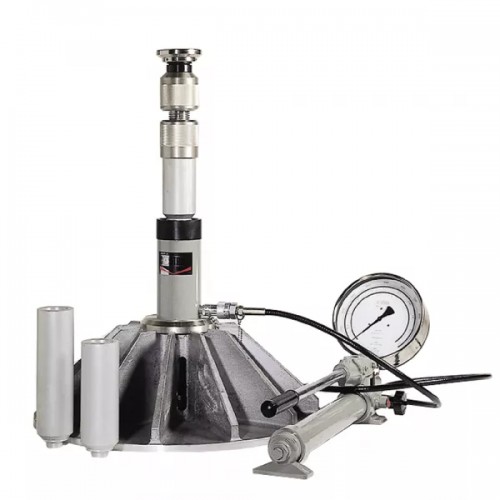

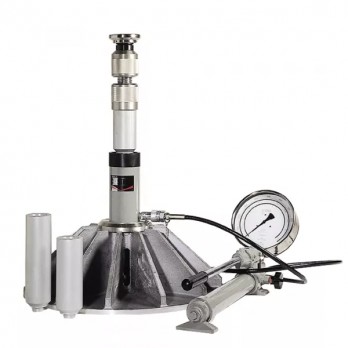

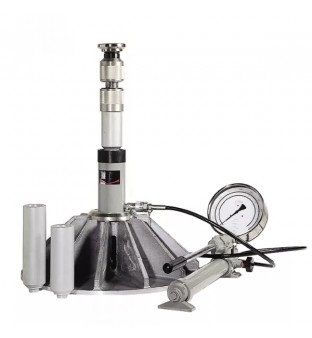

The apparatus comprises:
35-T1100/PF - Aluminium bearing plate 600 mm dia., with reinforcing ribs. Weight approx.: 30 kg
35-T11F2/2 - Hydraulic jack, 200 kN cap. Weight approx.: 10 kg
5-T11F2/3 - Set of three interchangeable extensions with spherical seated foot. Weight approx.: 12 kg
35-T11F2/4 - Hand pump with precision dial gauge 200 mm dia. Calibrated in bar (o to 3.5) and in daN
(0 to 10000). Complete with connecting hose. Weight approx.: 11 kg
35-T1100/H5C - Wooden wheeled carrying case
35-T1100/BF - Benkelman beam apparatus. Weight approx.: 15 kg
Note: all the above parts can be purchased individually
| Виробник |
| Виробник |
Controls |
35-T1100/FC - Wooden carrying case per Benkelmann beam
