Axial-Circumferential Compression Device

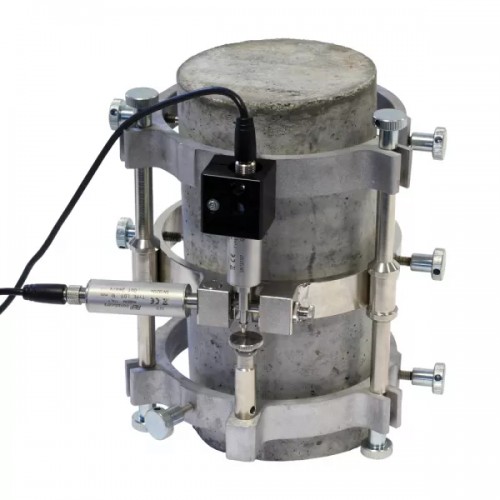

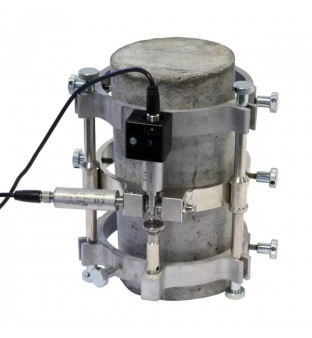

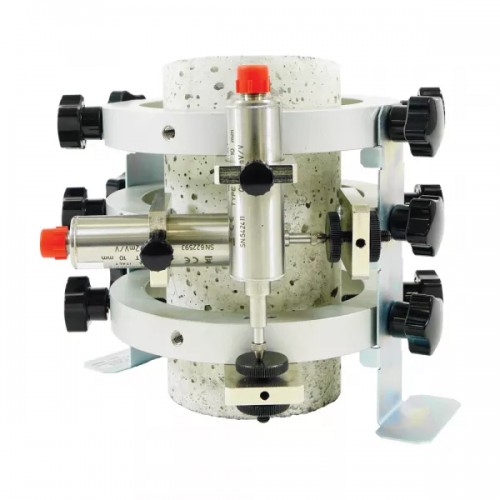

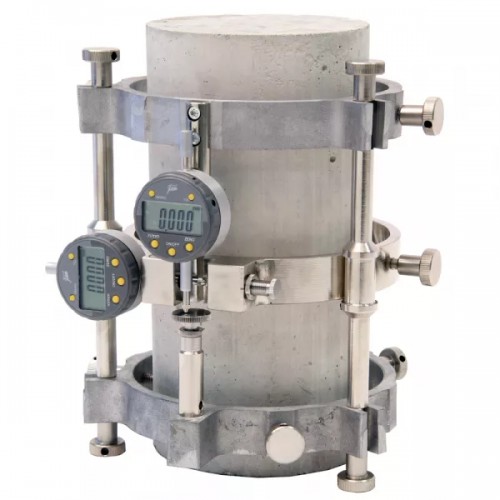

The compressometer / extensometer for static Modulus of Elasticity and Poisson’s Ratio to ASTM C469 is a device for measuring the longitudinal strain and corresponding diametrical strain of dia.150x300mm (C0221/E and C0221/D) and dia.100x200 mm (C0221/F) concrete cylinders, or core, subjected to axial loading. It works by measuring the relative displacement of datum points on the cylinder surface.

The available models are:

The models fitted with displacement transducers can be connected to a suitable data logger or, directly to our Automatic control consoles MCC or Automax Multitest which can provide cyclic loading and automatic determination of the Modulus of Elasticity.

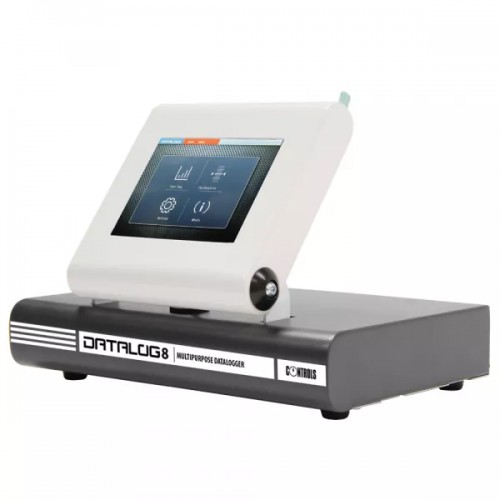

The data logger as, for example, our mode 82-P9008, can be used with compression testers for axial deformation measurement when it's not mandatory to perform loading / unloading cycles, but only loading ramps. In this case, one of the channel of the data logger should be used for the load signal coming from an additional pressure transducer with 3 way connector fitted to the compression tester. Please get in touch with our technicians for complete information and service

Main features

Technical specifications
