Багатоцільовий тестер на стиск і вигин (50/25 кН) з контролем переміщення або навантаження - UNIFRAME

Обрати іншу модель Копіювати посилання

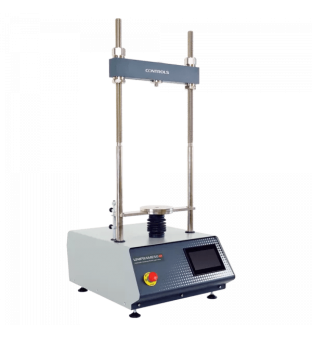

Багатоцільовий тестер на стиск і вигин (50/25 кН) з контролем переміщення або навантаження - UNIFRAME
Багатоцільовий тестер на стиск і вигин (50/25 кН) з контролем переміщення або навантаження - UNIFRAME Увеличить
Характеристики
Standards ASTM D1559, ASTM D5581, AASHTO T245, EN 12697-12
EN 12697-23, EN 12697-34, ASTM D6927, AASHTO T283, ASTM D6931

Manufacturer Controls
Всі характеристики

70-T1282/T - UNIFRAME automatic compression/tension testing machine with two-column structure and adjustable crossbeam

70-T1282 - UNIFRAME automatic compression testing machine with two-column structure and adjustable crossbeam - Loading capacity: 50 kN - Clearance between columns: 380 mm

70-T1192 - UNIFRAME automatic compression testing machine with two-column structure and adjustable crossbeam - Loading capacity: 100 kN - Clearance between columns: 456 mm

Дивитися повний опис

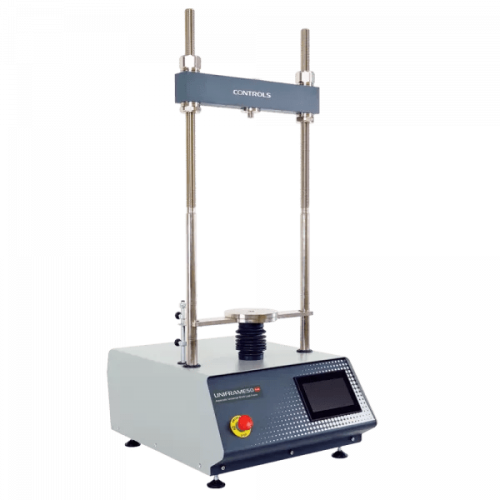

Багатоцільовий тестер на стиск і вигин (50/25 кН) з контролем переміщення або навантаження - UNIFRAME Збільшити

CONTROLS range includes a series of small and compact compression machines that can be used for several tests:

  • CBR tests on soils;
  • Marshall tests on asphalt;
  • Indirect Tensile strength and IDEAL-CT tests on asphalt;
  • Uniaxial and unconfined tests on soils and rocks;
  • Compression tests on low stregth concrete, cement and groundcement samples;
  • Flexure tests on beams, mortar, tiles and any other compression or flexure test performed under displacement and/or load closed loop control within machine capacity.

Each machine can be selected depending on type of test and material:

  • MULTILOADER machines are generally used for CBR, Marshall and displacement control tests
  • UNIFRAME machines are generally used when load rate control is also required

See the table below to select your preferred machine depending on the test typically performed:

LOAD TESTER 70-T1282/T, 70-T1282, 70-T1192

PERFORMABLE TESTS CBR Marshall Indirect Tensile / IDEAL-CT Unconfined compression Flexural strenght Quick triaxial Uniaxial compression Moduls of rupture of natural building stones Punching test on clay block for flooring Flexural streght on concrete beams,concrete and clay tiles* (*70-T0108/W AND 70-T0109/W only) Flexural streght on mortar prisms Compression on low strenght mortar mixes Indirect tensile splitting
CORRESPONDANT STANDARDS EN 13286-47, ASTM D1883 EN 12697-34; ASTM D1559, D5581 EN 12697-23; ASTM D8225; AASHTO T283 ASTM D2166; BS 1337 ASTM D1635 ASTM D2850; BS 1337 ASTM D1633 ASTM C99, C880 UNI 9730-3 EN 12390-5, 491, 538; ASTM C78, C293; BS 1881: 118; NF P18-407; UNI 6133; UNE 83-305 EN 196; ASTM C348 ASTM C109 EN 12697-12 e 23; CNR 134

Technical specification
70-T1282 70-T1192 70-T1282/T
Max. load cap (kN) 50 100 50 (Compr.) 25 (Tensile)
Min.testing speed (mm/min)
0.05 0.05 0.05
Max. testing speed (mm/min)
51 51 51
Type of control
Crossbeam displacement rate + external transducer feedback and load/stress rate Crossbeam displacement rate + external transducer feedback and load/stress rate Crossbeam displacement rate + external transducer feedback and load/stress rate
Fast approach speed (mm/min)
40 40 40
Power rating (W)
800 800 800
Max. ram travel (mm)
100 100 100
Display
touch screen 7" 240x128 Screen display touch screen 7"
Data downloading port
Ethernet, RS232 and USB ports Ethernet, RS232 and USB ports Ethernet, RS232 and USB ports
Max. vertical span (mm)
765 1040 765
Horizontal daylight (mm)
380 456 380
Overall dimensions (wxdxh)(mm)
392x495x1213 600x520x1830 392x495x1213
Overall dimensions (wxdxh)(mm)
110 165 110
Виробник
Виробник Controls

82-P0375 - 50 kN capacity strain gauge load cell
82-P0375/C - Connecting adapter load cell/cross head
34-T0104/81 - Adjustable support for displacement transducer
82-P0322 - Linear potentiometric displacement transducer, 25 mm travel with cable 6 pins connector
34-T0104/10 - Compression device
34-T0104/13 - Compression device extension, suitable for con- nection to 34-T0104/81, adjustable trasducer
76-B0033/4 - Stability mould for 4" (101.6 mm) diameter specimens
34-V0107/MAR - Test set to perform the Marshall test in digital mode with the 34-V0107 and 70-T0108/E testers
34-V0107/CM - Test set to perform CBR and Marshall tests in digital mode with the 34-V0107 and 70-T0108/E testers
76-B0033/6 - Stability mould for 6" (152.4 mm) diameter specimens
76-B0078/F - Frame for tensile splitting device (Lottman Breaking Head) for compacted bituminous samples 100 mm (4") dia. 150 mm (6") and 160 mm. Conforming to EN 12697-23, ASTM D6931 and AASHTO T283. To be completed with suitable pair of loading strips.
76-B0078/F1 - Pair of loading strips for 100 mm dia. samples suitable for jig code 76-B0078/F
76-B0078/F2 - Pair of loading strips for 150 mm dia. samples suitable for jig code 76-B0078/F
76-B0033/E - Shearing head acc. to Leutner method for 150mm dia. samples for Shear Bond Test (SBT) to EN 12697-48
76-B0033/E1 - Adapter for 100mm dia. samples for Leutner shearing head
79-PV70150 - Indirect Tensile (IDT) and Semi-Circular Bend (SCB) Jig Base
79-PV70155 - Semi-Circular Bend (SCB) Top Platen
79-PV70156 - Semi-Circular Bend (SCB) Jig Upgrade Kit Option for ASTM D8044 / AASHTO TP124 Method B
79-PV70157 - Semi-Circular Bend (SCB) Jig Upgrade Kit Option for AASHTO TP124 Method A (as altrnative)
76-SW/BMD - PC software for 76-PV128x Balanced Loader,70-T128x Uniframe testers, 34-V118x Multiloader and for 82-P60R12 Digimax readout unit, suitable for BMD asphalt mix test.
