Автоматичний моторизований тестер міцності на розрив

This apparatus is mainly used to evaluate the bond strength of two layers of concrete/mortar or the adhesive strength of surface coatings on its support (e.g. cement plaster, lime, wall plaster etc.).

It is fitted with a high resolution load cell and houses a built-in motorized hydraulic actuator automatically controlled by the advanced electronics and closed loop algorithms. The 16 kN loading capacity, the high resolution load cell and the great stability of the electronics, assure a wide working range ideal for a vast number of materials and applications.

The ultra-compact shape and the lightweight feature make this instrument particularly suitable not only for laboratory use but also for uneasy on site applications such as large walls and ceilings.

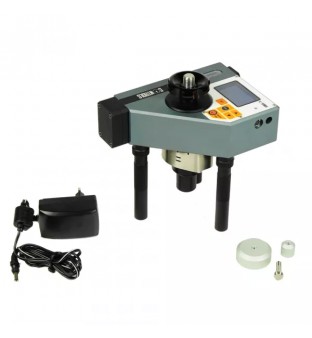

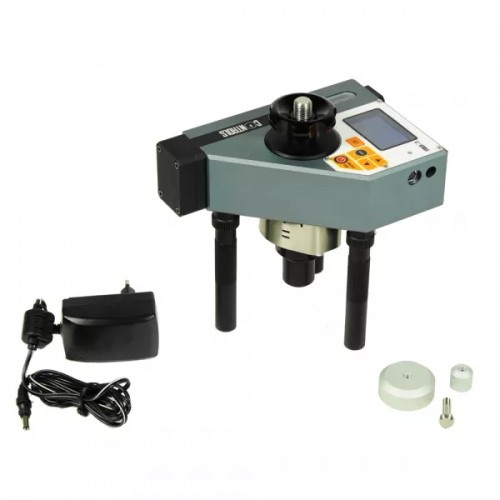

It is supplied complete with: aluminium test discs 20 and 50 mm dia., screw bolt, traceable calibration certificate and carrying case.

A wide range of accessories, such as adhesive compound, disks with various shape and dimensions, drill bits are also available.

• Ultra-compact and portable equipment ideal for use in and off site
• Motorized in-built hydraulic actuator

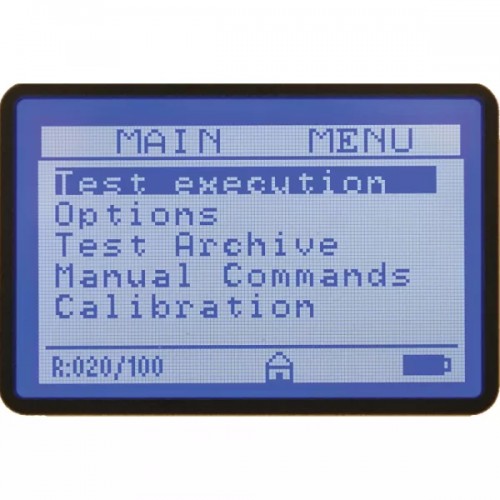

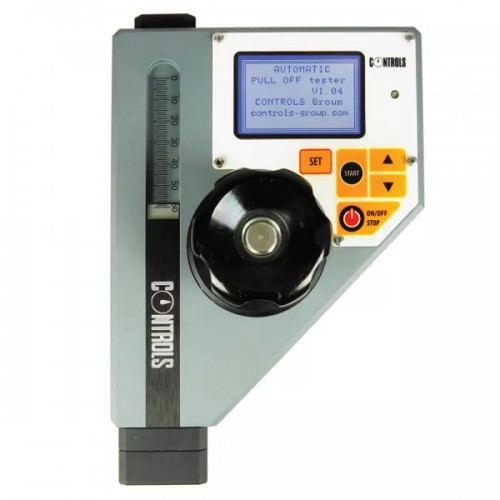

• High resolution graphic display 128x80 pixels and 5 keys membrane keyboard
• PID closed-loop control of the load rate
• Graphic display of actual load, load rate, peak value, strength
• Battery operated: internal rechargeable LiPo type battery 7.4 V, 2200 mAh.
• Dial Indicator of ram position allowing a quick estimation of the brittle properties of the test sample
• Supplied complete with traceable calibration certificate
• Load measurement with high accuracy strain gauge load cell
