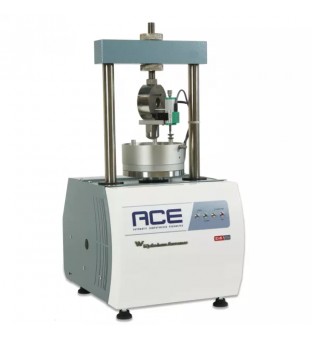

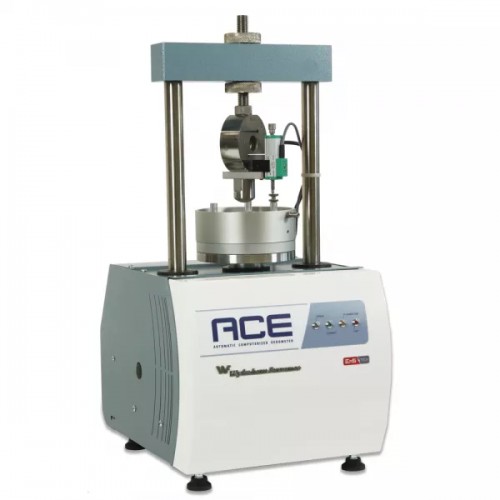

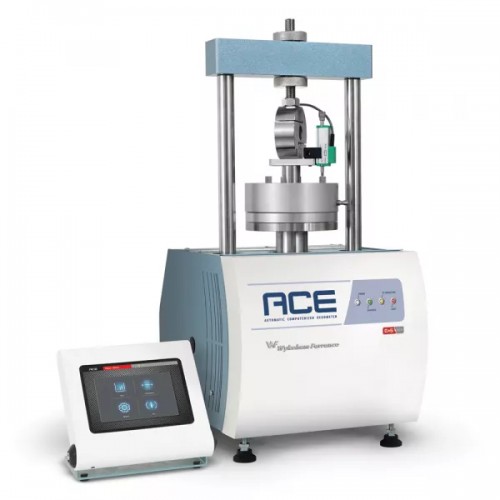

The ACE EmS is a versatile and fully automatic Oedometer soil consolidation testing machine that comes loaded with the new environmentally friendly Electromechanical Servoactuation (EmS) technology. Silent, compact and highly performing, the ACE EmS testing system can be run with our ingenious software that can connect up to 60 units with just one PC, enabling you to expand your laboratory gradually and seamlessly.
Oedometric soil test description
The Oedometric test determines the rate and magnitude of soil consolidation when restrained laterally and loaded axially.
Fully automatic
The ACE EmS can complete the whole test in fully automatic mode by selecting the load (stress), offering a practical and accurate way to obtain reliable results without any need for manual intervention, reducing the risk of human error.
Totally new and ingenious software

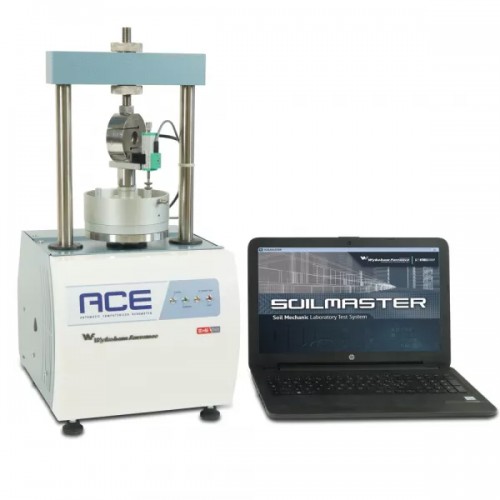

Can pilot up to 60 ACE EmS units from one single PC with user able to select single or multiple unit batches.
Once the software is installed and linked to the first ACE EmS, it is easy to add more units by enabling the associated LAN communication (IP address) without complications or costs.

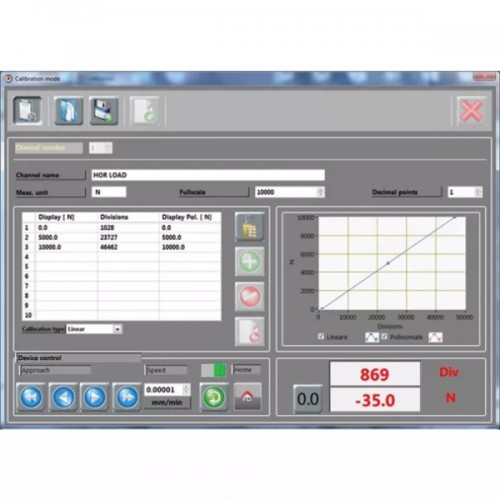

Calibrations of displacement transducers and load cells are stored as txt file and easy to recall, up to 10 calibration points can be recorded for each channel.
Clarity in results
Oedometer test results are saved and displayed in real-time, speeding data capture.

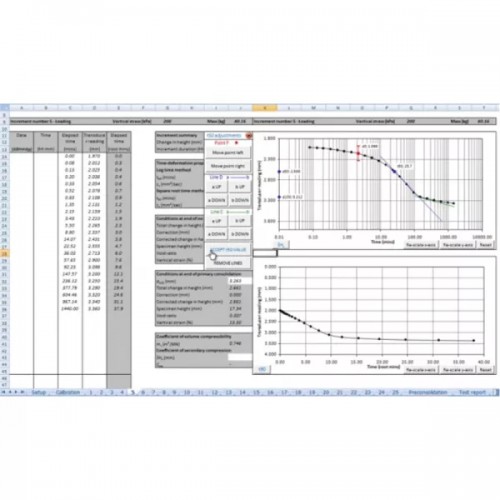

Results are then processed using Wykeham Farrance (WF)’s easy-to-use Geo-Analysis templates, written by experts around international standards allowing you to concentrate on analyzing your materials; not on programing your testing machine.
Interchangeable consolidations cells

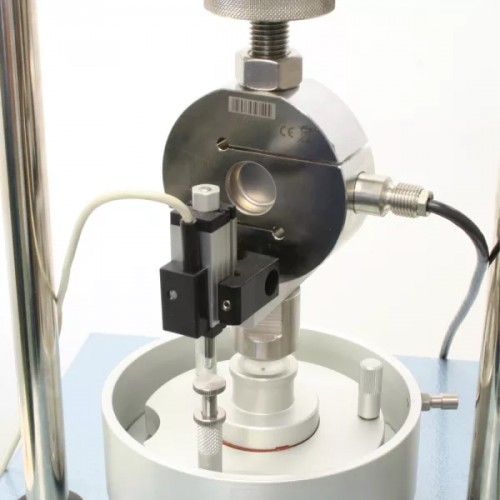

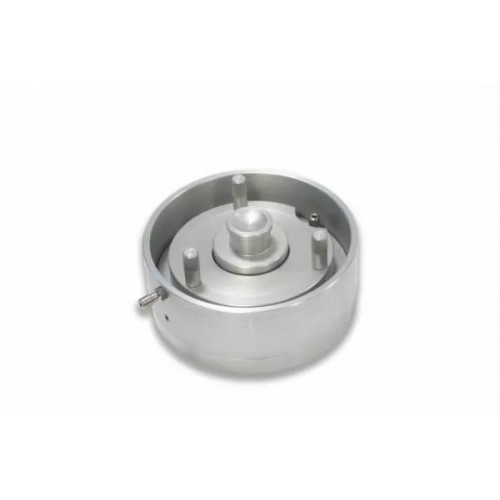

Standard WF consolidation cells from 50.47 to 112.80mm dia. normally used with front loading oedometer can also be used with the ACE EmS.
Standard test method
ASTM D2435 - Standard Test Methods for One-Dimensional Consolidation Properties of Soils Using Incremental Loading
ASTM D4546 - Standard Test Methods for One-Dimensional Swell or Collapse of Soils
ASTM D3877 - Standard Test Methods for One-Dimensional Expansion, Shrinkage, and Uplift Pressure of Soil-Lime Mixtures
BS 1377:5 - Methods of test for soils for civil engineering purposes. Compressibility, permeability and durability tests
EN 17982:5 - Geotechnical investigation and testing. Laboratory testing of soil. Incremental loading oedometer test
Complete configuration is composed by:
ACE EmS
PC software or Touch screen display ( see accessories)
Consolidation cell (see accessories)
Template for data processing ( see accessories)
Main features

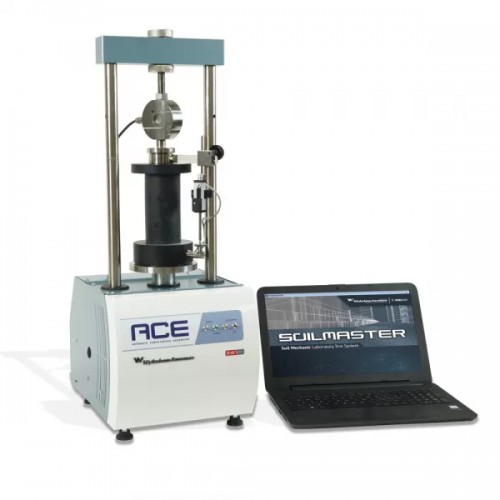

Versatile fully automatic Oedometer soil consolidation testing machine featuring incremental loading, swelling, CRS (constant rate of strain), CHG (controlled hydraulic gradient) and unconfined test.
Environmentally friendly and quiet — the ACE EmS benefits from the new Electromechanical Servoactuation (EmS) technology requiring no dead weights or large & noisy air compressors, thus drastically reducing noise levels.

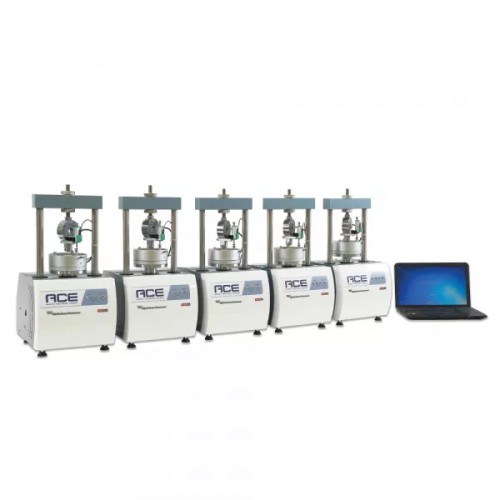

Modular and expandable, gradually connect up to 60 units via LAN port using the same PC software allowing you to build your laboratory without interruption — resulting in excellent return on investments.
Small footprint featuring a benchtop shorter than 50 cm.
Highly performant with load capacity of up to 20 kN, equivalent to 10,000 kPa on 50.47mm Oedometer consolidation cell.
Optimized PID closed-loop control delivering fast, smooth and accurate loading and precise load holding through the multiple test steps.

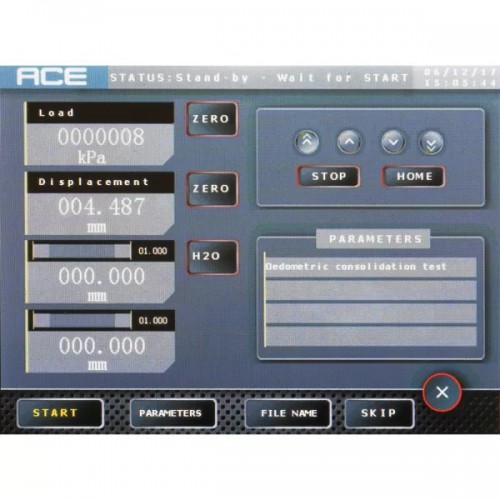

Optional local user interface with 6” touch screen high resolution color display allowing full control of a single unit, without a PC, including full test execution. USB pen drive included for unlimited storage, TXT format data output.
| Виробник |
| Виробник |
Controls |
| Технічні характеристики |
| Мінімальна швидкість випробування |
0,00001 мм/мин |
| Максимальна швидкість випробування |
50.00000 мм/мин |
| Вага (прибл.) |
40 кг |
| Вертикальний просвіт |
185 мм (265 мм з подовжувачами) |
| Горизонтальний зазор |
175 мм |
| Макс. вертикальна сила |
20 кН |
| Хід поршня |
25 мм |
| Електроживлення |
220-100 В, 50-60 Гц, 1 фаза |
| Номінальна потужність |
200 Вт |
| Габаритні розміри |
285 x 390 x 590 мм |
26-WF0338/C - Permeability attachment with 50ml graduated burette suitable for ACE EmS
26-WF31E20/SW - ACE EmS PC software activation code. For remote control and data acquisition from up 60ACE EmS.
26-WF4645 - LAN Hub with 8 ports for Wykeham Farrance devices.LAN cable from hub to PC is included.
26-WF31E20/T - Optional local user interface with 6" touch screenhigh resolution color display
30-WF6016/T1 - Consolidation Geo-Analysis for MS EXCEL Template according to BS 1377:5
30-WF6016/T8 - Consolidation Geo-Analysis template conforming to ASTMD2435
30-WF6016/T8A - Consolidation Geo-Analysis template conforming to ASTM D4546
