Introduction

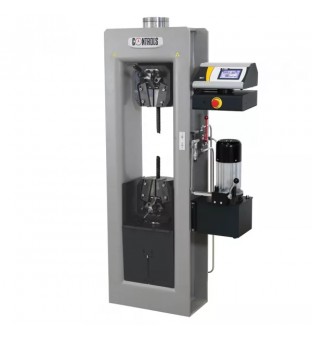

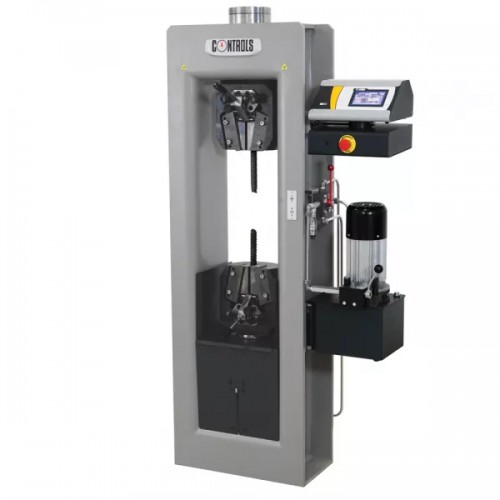

This machine has been designed for use, in the field or laboratory to perform tension tests on steel rebars up to 26 mm dia. and compression tests on cylindrical concrete specimens up to dia. 160x320 mm and cubes up to 150 mm, using the appropriate accessories.
The system includes the UTM AUTO Power and Control System (PCS) for the automatic execution of compression and tensile tests.
Frame
The frame consists of a very rigid structure with double acting cylinder assembly.
It includes tensile grips and it is fitted with a 150 mm travel high precision displacement transducer allowing test execution under crosshead separation control. See Technical Specifications.
The machine is supplied complete with a set of tensile holders, 4 wedge grips for flats up to 13 mm thickness, 4 wedge grips for rounds up to 26 mm dia. and 2 sets of grip liners 4 and 8 mm thick.
Spherical seat and compression platens for concrete specimens are not included and have to be ordered separately (see Accessories).
UTM AUTO Power and Control System (PCS)
Automatically performs steel tensile and concrete compression tests when connected to the relevant accessories. See Technical specifications.
The UTS Light software (included) is tailored for tensile tests according to EN 6892-1 (method B) and EN 15630-1, being suitable for data acquisition and test results elaboration. See Technical Specifications.
Main features
Fully automatic test cycle with closed-loop digital feedback
High precision displacement transducer included, for automatic control of the test and plot of stress/elongation graph, based on the crossheads separation measurement
No need to use external extensometer to control the test
Best quality/price ratio
Heavy duty high-functionality jaws rated for severe prolonged use for testing up to 26 mm dia. rebars
For tensile tests up to 500 kN on steel and compression tests up to 1000kN on concrete
Double stage hydraulic pump with rapid approach and precise oil flow control
Adopts the latest ES technology for reduction of power consumption
Data acquisition and test results elaboration to EN ISO 7500-1, EN ISO 6892-1 (method B) and EN 15630-1 by intuitive and very comprehensive software (included)
Available with stand alone control console or in the integrated Compact-Line version
Technical specifications
Frame
Load capacity in tension: 500 kN
Load capacity in compression: 1000 kN
Tensile jaws including: 4 wedge grips for flats up to 13 mm thickness, 4 wedge grips for rounds up to 26 mm dia. and 2 sets of grips' liners 4 and 8 mm thick.
Heavy duty high-functionality jaws rated for severe prolonged use
Maximum distance between grips (tensile mode): approx. 300 mm
Specimen length (tensile mode): approx. 500 mm
Max vertical clearance for compression (with 70-S0012/1): 695mm
Max. ram travel: 150 mm
Distance between columns: 310 mm
Overall dimensions approx (w x d x h).: 1000 x 700 x 1750 mm
Weight approx.: 550 kg
UTM AUTO Power and Control System
Hardware and firmware
131.000 points effective resolution
240 x 128 pixels touch screen graphic display
Closed-loop P.I.D.control
2 channels for load sensors
1 channel to measure crosshead separation travel with 150mm high precision displacement transducer (included)
1 channel to measure rebars elongation with extensometers (see Accessories)
digital linearization of the calibration curve (multi-coefficient)
TENSILE TEST
Automatic test execution under load/stress control and grips separation control (by using the displacement transducer supplied with the machine) with closed loop PID control
Simultaneous display of load, stress and specimen elongation
Graphical test data option showing the load/elongation curve
Possibility to overlap two elongation/stress graphs:
- one obtained with the included displacement transducer measuring crosshead separation travel
- one obtained with an optional extensometer (coaxial or universal)
COMPRESSION TEST
Automatic test execution of compression tests with closed loop PID control
Simultaneous display of load and stress, load/time graph
Hydraulics
Dual stage pump: centrifugal low pressure for fast approach and automatic switching to radial multi-piston high pressure for loading
DC motor 720 W, 50-60 Hz
Maximum working pressure 700 bar
ES Energy Saving technology
Software

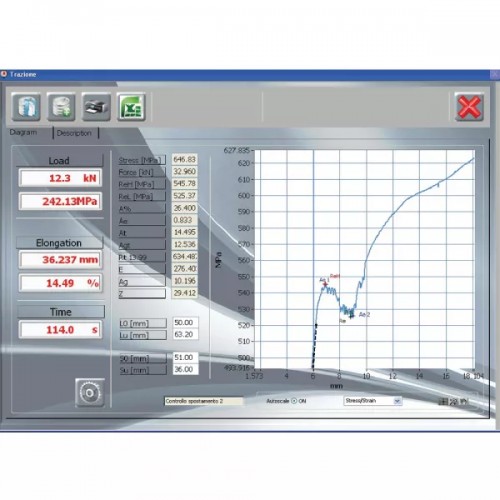

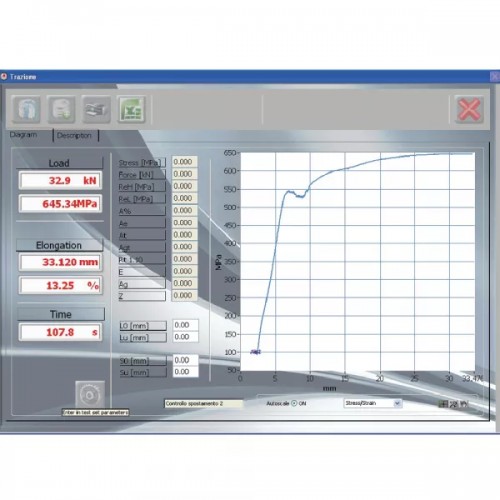

UTS Light data acquisition and processing software (included) for tensile test according to EN Standard allowing:
Input of specimen identification, test and name of customer
real time downloading of test data
simultaneous display of stress/time and stress/elongation by using coaxial extensometer series 70-C0961/xx or universal extensometer series 70-C0954/x (see Accessories) or displacment transducer reading crosshead separation travel (included)
elaboration of tension test results once test is completed: ReH, ReL or Rp, final elongation, etc. in conformity to EN ISO 6892-1 (method B) and EN 15630-1 (for steel rebars) when extensometer is adopted
unit of measurement: kN, mm, MPa
printout of test reports
multi-language software
| Виробник |
| Виробник |
Controls |
| Технічні характеристики |
| Максимальний хід поршня |
150 мм |
| Вага (прибл.) |
550 кг |
| Максимальний робочий тиск |
700 бар |
| Вантажопідйомність при розтягуванні |
500 кН |
| Вантажопідйомність при стиску |
1000 кН |
| Довжина зразка |
500 мм |
| Максимальний вертикальний зазор для стиснення |
695 мм |
| Електроживлення |
230 В, 50-60 Гц, 1 ф |
| Відстань між колонами |
310 мм |
| Габаритні розміри |
1000 x 700 x 1750 мм |

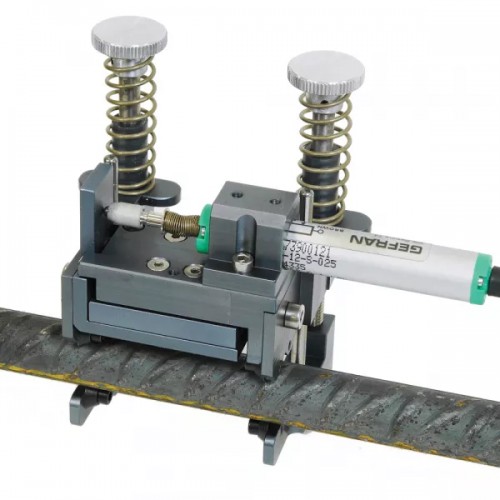

70-C0954/C1 - Electronic universal extensometer to measure the elongation of wires, steel rebars and round steel specimens. To be removed before sample failure. - Measuring base: 50 to 200 mm - Linearity: better than +- 1% - Max. travel: 10 mm
70-S0012/2 - Upgrading of the series 70-S11T0x and 70-S12U0x machines with front rigid door

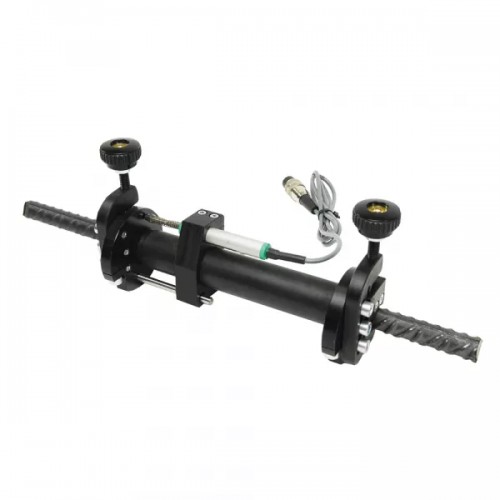

70-C0961/H -
Coaxial electronic extensometer for round specimens from 6 to 26 mm dia. Gauge length: 200 mm. Travel: 50 mm.
50-C9080 -
Distance piece dia 200 x 30 mm
50-C9082 -
Distance piece dia 200 x 50 mm
50-C9083 -
Distance piece dia 200 x 68 mm
50-C9086 -
Distance piece dia 200 x 100 mm.
70-S0012/1 -
Set of spherical seta and loading platens dia. 220mm for compression test on cylinders up to 160x320mm and cubes up to 150mm. Resulting vertical daylight: 695 mm. Distance pieces not included.
70-S0012/1A -
Set of spherical seat with upper loading platen dia.165x30mm and bottom platens dia.250x35 with threaded centering hole. For compression on cylinders up to 160x320. Resulting vertical daylight: 720 mm. Distance pieces not included.
