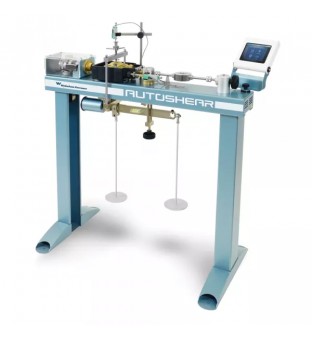

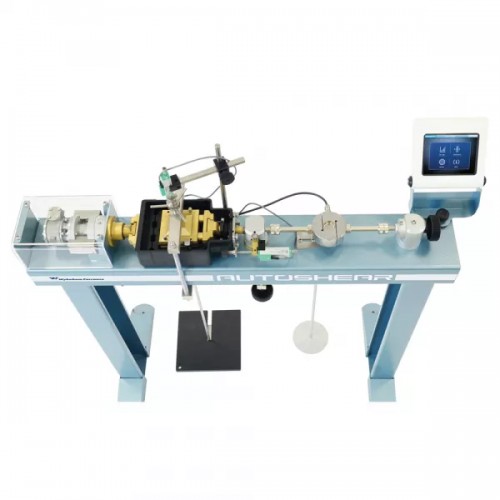

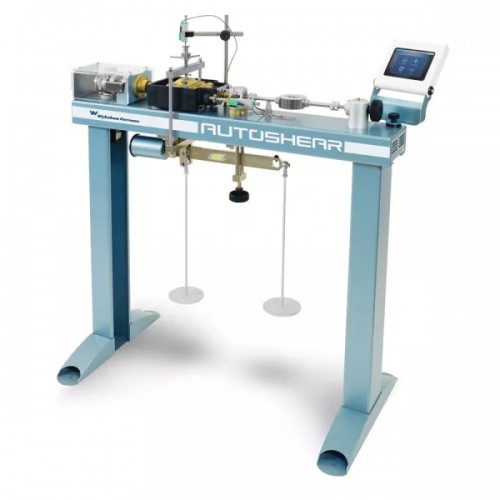

The Autoshear is an automatic machine for direct/residual shear testing. It incorporates a high-resolution stepper motor fitted with a high precision load transfer mechanism.
Via the large 6" touch screen colour display the user can start, pause and stop the test, select the data-recording mode, view the readings and the diagrams during the test execution and carry out the transducers calibration (load cell and two displacement transducers).
The axial transmission of the horizontal force adopts a straight connection through shear box, shaft and load cell. This design avoids the load measurement inaccuracies occurring with the widely used "swan neck" basic design.

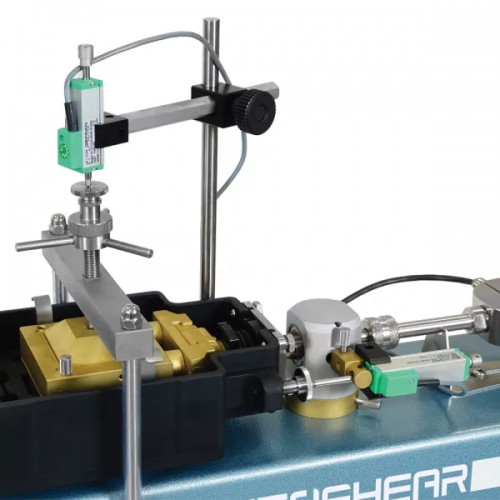

A high quality techno-polymeric material has been adopted for the carriage of the shear box, offering excellent resistance to corrosion, wear and tear and to the chemicals often mixed with the soil specimens.
Furthermore, this polymeric carriage is lightweight and easy to clean.
Vertical load is applied directly to the specimen via a loading yoke and a weights holding arm which amplifies 10 times the applied value.
Load cell and displacement transducers, weight and shear box assembly shall be ordered separately (see accessories and related products)
Load ring and dial gauge are also suitable for manual recording.
Standard complete configuration is composed by:
Autoshear
Shear box (see accessories and related products)
Vertical displacement transducer (see accessories and related products)
Horizontal displacement transducer (see accessories and related products)
Load cell (see accessories and related products)
Set of Weight (see accessories and related products)
Template for data processing (see accessories)
Main features
User interface 6" touch screen colour display for numerical and graphical plotting of the readings
Maximum horizontal force: 5 kN
Maximum vertical force: 5 kN, using the 10:1 cantilever device
Three analogue channels. one for load cell and two for displacement transducers
Effective channel resolution: 131,000 points
Infinitely variavle speed from 0.00001 to 15.0000 mm/min
High stiffness load chain shear box - driving head - load cell
Compatible with shear boxes up to 100 mm diameter or square
USB pen drive for unlimited storage capacity and TXT format data output
Optional PC control via LAN port and dedicated software
Sturdy shear box techno-polymeric carriage untouchable by corrosion
Adjustable speed and travel (forward and reverse) for residual shear test
Number of cycles adjustable from 1 to 50
Specific and independent data recording for consolidation and failure stages
Виробник
Виробник
Controls
Максимальне зусилля зсуву
5000 Н
Технічні характеристики
Вага (прибл.)
60 кг
Розмір зразка
квадратний або круглий до 100 мм
Швидкість випробування
від 0,00001 до 15,00000 мм/хв
Максимальна кількість циклів зсуву
50
Максимальне вертикальне навантаження
Максимальне вертикальне навантаження: 500 Н або 5000 Н з використанням консольного навантажувального пристрою 10:1, що постачається з машиною
27-WF0215/B - Shear box for square specimen 60x60mm
27-WF0216/B - Shear box for square specimen 100x100mm
27-WF0219/B - Shear box for 63.5mm dia samples
27-WF0222/B - Shear box assembly for 100mm diameter sample
30-WF6207 - Linear potentiometric transducer, 10mm travel, with 6 pin Lumberg connector complete with mounting block
30-WF6208 - Linear potentiometric transducer, 25mm travel, with 6 pin Lumberg connector complete with mounting block
30-WF6016/T2 - Direct and residual Shear Geo-Analysis for MS EXCEL Template according to BS 1377:7
30-WF6016/T9 - Direct and residual shear Geo-Analysis template conforming to ASTM D3080
27-WF21A60/SW - Autoshear software activation code. For remote control and data aquisition from Autoshear (27-WF21A60), multiple units connectable to a single PC.
27-WF0377/ST - 5 kN load cell, complete with adaptors for shear machine 27-WF20D60 and WF21A60.
27-WF0230/C3 - Set of slotted steelweights tot.37.5kg: 2x0.250kg;2x0.500kg; 2x1kg; 3x2kg; 3x4kg; 2x8kg.
27-WF0230/C4 - Additional set of slotted steel weights: 2x1kg; 1x2kg; 3x10kg.
27-WF0218/B - Shear box for 60mm dia samples
