Апарат для випробувань на витяг

Used for determining the pullout strength of hardened concrete in test specimens or structures by measuring the force required to pull an embedded metal insert and the attached concrete fragment from a concrete mass.

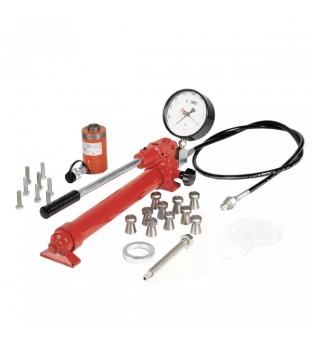

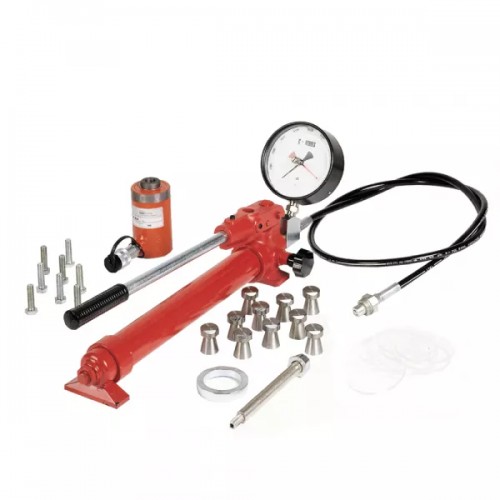

The pullout test apparatus 58-C0178 is used for pre-embedded inserts in fresh concrete mass. It comprises a hydraulic jack 100 kN cap., a precision measuring Bourdon gauge 150 mm dia., bearing ring and 10 pullout inserts, all contained in a carrying case.

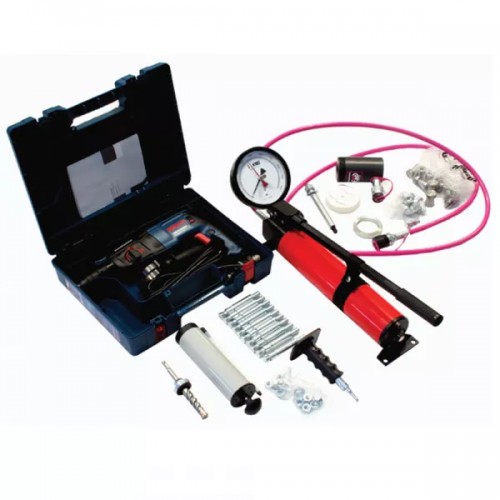

For embedded inserts after the concrete hardening, it is available the kit model 58-C0178/3, that includes a professional electrical drill with suitable power, SDS mandrel, 18mm drill bit for concrete, pack of 10 expanding plugs dia. 18mm x 80mm and manual air pump for dust cleaning. (This apparatus does not match all the requirements of the Standard UNI 10157, EN 12504-3).
