Powerful hydraulic system which offers high test throughput improving efficiency of the laboratory.
High flexibility covering the following applications:
Steel
Tensile tests on steel rebars and rounds up to 78 mm dia
Tensile test on steel flats up to 72 x 100 mm
Tensile tests on wire strands and electro-welded steel screen

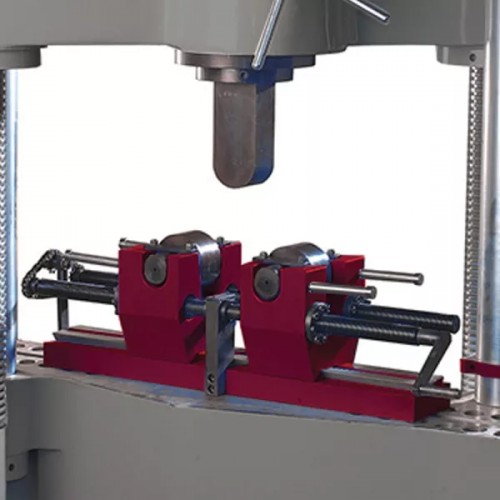

Transverse tests on steel specimens

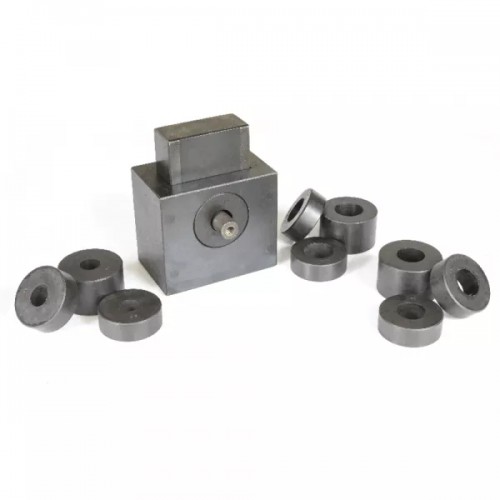

Bend and re-bend tests on steel specimens
Brinnel with 10mm ball
Shear tests on rounds
Concrete
Compression tests on cubes and cylinders
Flexural tests on concrete beams

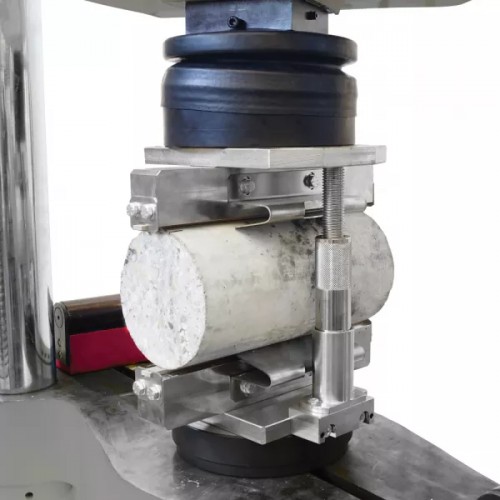

Indirect tensile on cylinders, cubes and paving blocks
Determination of the Modulus of elasticity (in a second dedicated compression frame)
Pull out test
Various
Compression tests on rock, masonry units, refractories etc.

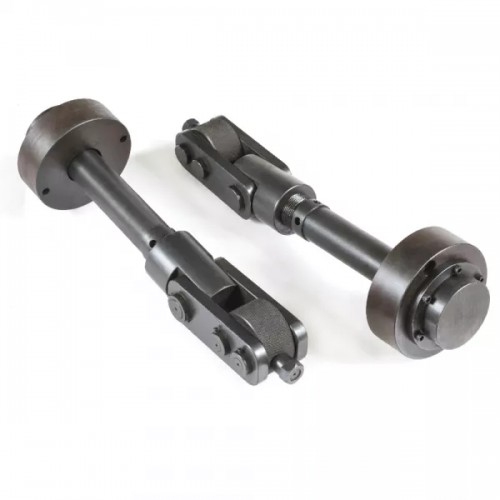

Wire rope tensile tests

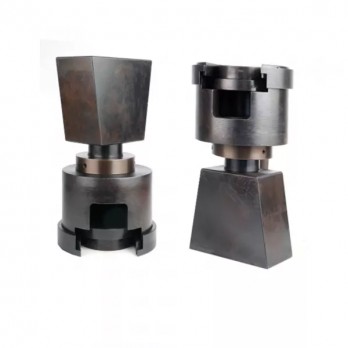

Nut and bolt testing

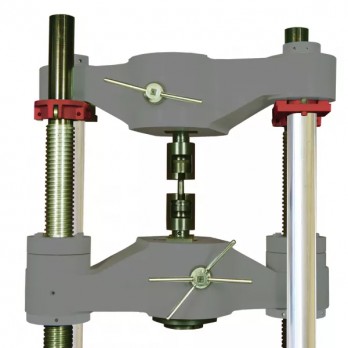

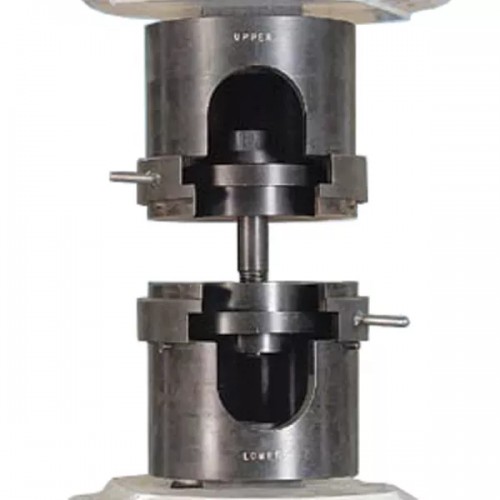

Tensile test on headed and shouldered specimens

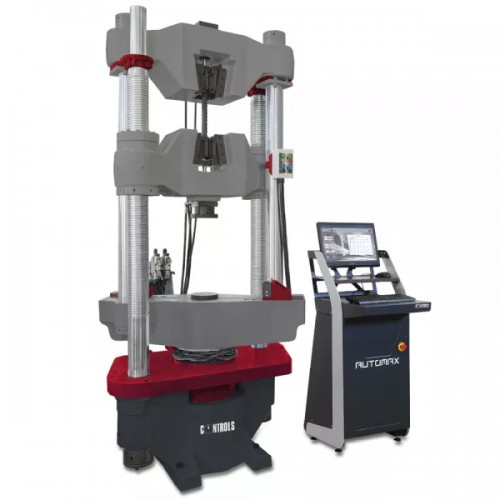

The range includes four models of 1000 kN and 2000 kN cap. All models are controlled by the new and sophisticated HPU 200 control unit and are complete with PC, upper and lower hydraulically operated jaws, complete set of grips for rounds and flats, transverse test attachment and high precision load cell providing high accuracy from the very beginning of the load scale.

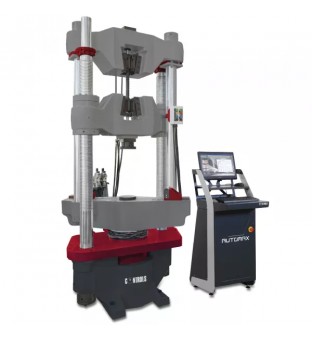

Loading frame
The frame consists essentially of a robust four columns frame with three sturdy crossheads: upper is directly connected to the lower one by two main columns; the middle one, moving on two screw columns, can be adjusted through an electric motor by using the dedicated push button panel, in order to set the required vertical daylight both for compression and tensile tests; the lower is controlled by a simple effect piston centrally positioned. Jaws and wedge grips are included. The tensile jaws are operated by a separate Hydraulic Gripping System with dedicated a push-button panel. The compression tests are performed between the lower and the mobile middle crossheads, using the suitable accessories.
Power and control console - HPU 200
Control console HPU 200 features space-saving ergonomic design with small footprint and houses the hydraulic power unit, the electronic system and the PC to manage all the control functions.
Automatically performs steel tensile testing, compression, splitting tests, Elastic Modulus and Poisson's ratio determination on concrete specimens. See Accessories.
PC and software enable remote control of the complete system.
The system can be upgraded for a second frame connection and control by a special hydraulic valve system (70-T10/2F). Normally adopted to connect a concrete compression frame up to 5000 kN capacity, to perform not only compression, but other important tests as for example the Modulus of Elasticity, with the related software (model 82-SW/EM). Selection of the test frame via software.
For more info see Technical Specifications
Safety features
Pressure valve that automatically stops the machine when the oil pressure approaches the limit
Maximum travel limit switches to control the position of the mobile crosshead
Software stops the machine when the maximum load is reached
Emergency stop button
Main features
IDEAL FOR THE CONSTRUCTION INDUSTRY Particularly suitable, but not only, for the construction industry, to perform both tension tests on steel rounds and flats, and compression/transverse/splitting tests on concrete
COMPLETE RANGE From 1000kN up to 2000kN capacity
RUGGED FOUR COLUMN FRAME xtremely rigid four column frame with large vertical clearance suitable for tension and compression tests
FRONT OPEN CROSSHEAD For easy insertion of tensile specimens. The jaws and grips can be easily removed by just pulling from the front. Hydraulic gripping system operated by push button panel
HIGH ACCURACY WITH LOAD CELL Load measurement by high precision load cell providing high accuracy from the very beginning of load scale

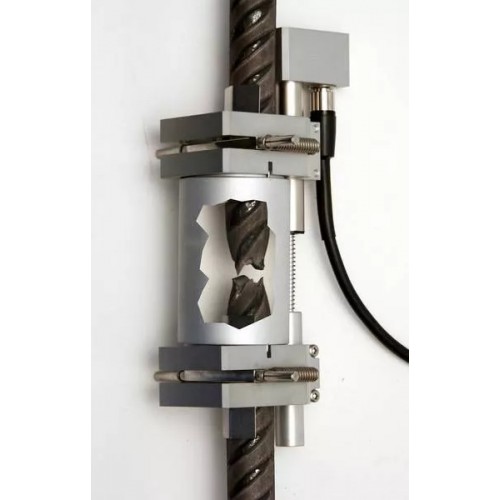

FULL RANGE OF ACCESSORIES available to perform various tests, including Extensometers, Transverse and Bending test apparatus for steel, Compression-Flexural and Indirect tensile test on concrete, etc.
PC CONTROLLED Completely automatic test execution
SOFTWARE PACKAGES INCLUDED Supplied complete with management software and software packages concerning wide range of tests on steel, concrete and other construction material
SECOND FRAME CONTROL Normally adopted to connect concrete compression up to 5000kN capacity or flexural frame
Technical specification
| Model |
HPT-1000 |
HPT-2000 |
| Code |
70-T10H02 |
70-T20H02 |
| Capacity |
1000 kN |
2000 kN |
| Set of grips for rounds up to 50 mm dia., mm |
8 to 18 |
8 to 18 |
| 12 to 30 |
12 to 30 |
| 25 to 38 |
30 to 42 |
| 38 to 50 |
42 to 54 |
|
54 to 66 |
| For flats, mm |
0 to 20x90 |
0 to 18x100 |
| 20 to 40x90 |
18 to 36x100 |
| 40 to 60x90 |
36 to 54x100 |
|
54 to 72x100 |
| Piston travel, mm |
250 |
300 |
| Max. adjustable tensile daylight, mm |
50-850 |
50-850 |
| Max. daylight between jaws, mm(1) |
600 |
550 |
| Max. compression daylight (without accessories), mm |
0-850 |
0-850 |
| Horizontal daylight, mm |
750 |
850 |
| Maximum piston speed (no load condition), mm/min |
190 |
100 |
| Crosshead adjustable speed,mm/min |
360 @ 50 Hz |
430 @ 60 Hz |
| 270 @ 50 Hz |
325 @ 60 Hz |
| Load resolution, kH |
0.01 |
0.02 |
| Crosshead displacement resolution, mm |
0.01 |
0.01 |
| Machine class 1 range (EN ISO 7500-1), mm |
10-1000 kH |
20-2000 kH |
| Dimensions Frame, lxdxh, m |
1,3 x 1,2 x 3,0/3,25 |
0,8 x 0,9 x 1,55 |
| Dimensions Console, lxdxh, m |
1,8 x 1,7 x 3,7/4,0 |
0,8 x 0,9 x 1,55 |
| Weight (approx.), Frame, kg |
3700 |
3700 |
| Weight (approx.), Console, kg |
180 |
180 |
| Power supply |
380 V, 50-60 Hz, 3 ph |
380 V, 50-60 Hz, 3 ph |
(1) Max distance between grips to exploit the full piston travel
(2) Other voltages:For 380 V, 60 Hz, 3 ph, change the last number of the code from 2 to 3. For 220 V, 60 Hz, 3 ph, from 2 to 4
HPU POWER AND CONTROL CONSOLE
Hardware
131.000 points effective resolution
Control frequency 250 Hz
Sampling rate 250 Hz
Closed-loop P.I.D.control
6 channels (one dedicated to crosshead displacement) to measure elongation/displacement/strain with Potentiometric, conditioned LVDT and magnetostrictive transducers
4 channels for strain measurements with strain gauges
2 channels for load sensors: load cell and load cell/pressure transducer of possible second frame
simple multi-sensors connection and calibration file selection
digital linearization of the calibration curve. (multi-coefficient)
Hydraulics
Dual stage pump: centrifugal low pressure for fast approach (max. flow rate 9 l/min ) automatically switching to radial multi- piston high pressure (max. flow rate 3.2 l/min) for loading
AC motor 3000 W
Maximum working pressure 700 bar
Oil flow control by servo-controlled proportional valve
Oil temperature controlled by air cooling system
Console cabinet lined with soundproofing material for operator's comfort
Tank capacity: 30 liters
MANAGEMENT SOFTWARE AND SOFTWARE PACKAGES
HPT Universal testers are supplied complete with RTM (Real Time Management) user interface environment allowing:
Remote control of the complete system for automatic test execution: quick platen approach, zeroing, test execution according to the selected test type, calculation of results, graphical and numerical management of results
Storage of single and multiple tests
Printing of customized test reports for both single and multiple tests
Real time and deferred management of tests data and results, either in numeric or in graphic format
Language selection (Latin characters only)
Units selection
Remote technical assistance/diagnostic via internet
The following Software packages are also included in the system:

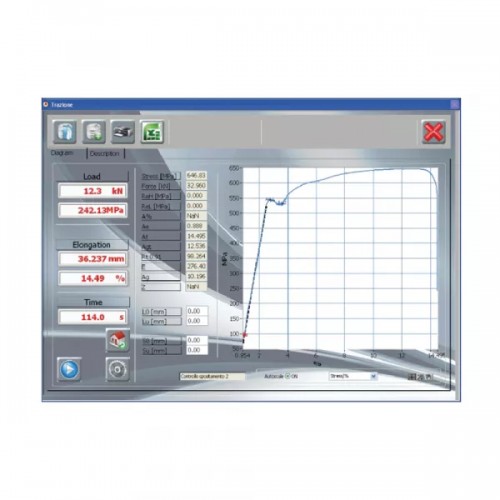

- UTS Software Specifically designed for tensile testing under load/stress control and crosshead separation control (by using the displacement transducer supplied with the machine), allowing
- Simultaneous display of stress/time, stress/elongation %, elongation/time and stress/elongation
- Possibility to overlap two elongation/stress graphs: one obtained with the included displacement transducer measuring crosshead separation travel and the other obtained w ith an optional extensometer (coaxial or universal)
- Elaboration of tension test results: ReH, ReL or Rp (calculated at three different elongation percentages selectable by the user), A, Ag, At, Agt, Ae, Rt, Z, elastic modulus E, etc, conforming to EN ISO 6892-1 and EN 15630-1 for steel rebars
- DATAMANAGER Software For compression, flexure and indirect tensile test on concrete, cement specimens and other construction materials allowing:
- Real time monitoring of test data and stress/time graph
- Automatic load detection failure and storage
- Cement testing to EN 196-1 guided test procedure
- Saving of batch file with automatic calculation of average and standard deviation
The following software package is available as option when upgrading the machine with the hydraulic system for a second frame connection (see 70-T10/2F)

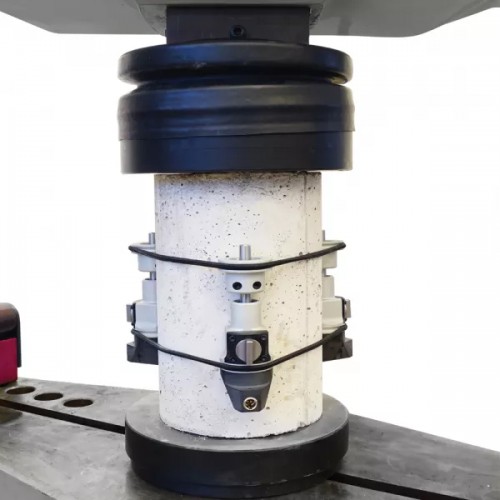

- E-MODULE software For Poisson ratio and Elastic Modulus determination on concrete specimens allowing:
- Free unlimited programmable load/stress cycles to fulfill any kind of test procedure
- Real time monitoring of test data, stress/time, stress/axial strain, stress/lateral strain graphs
- Automatic verification of sample centering and sensors functionality, as per Standard requirements
- Automatic calculation of Initial and Final secant Elastic Modulus values
